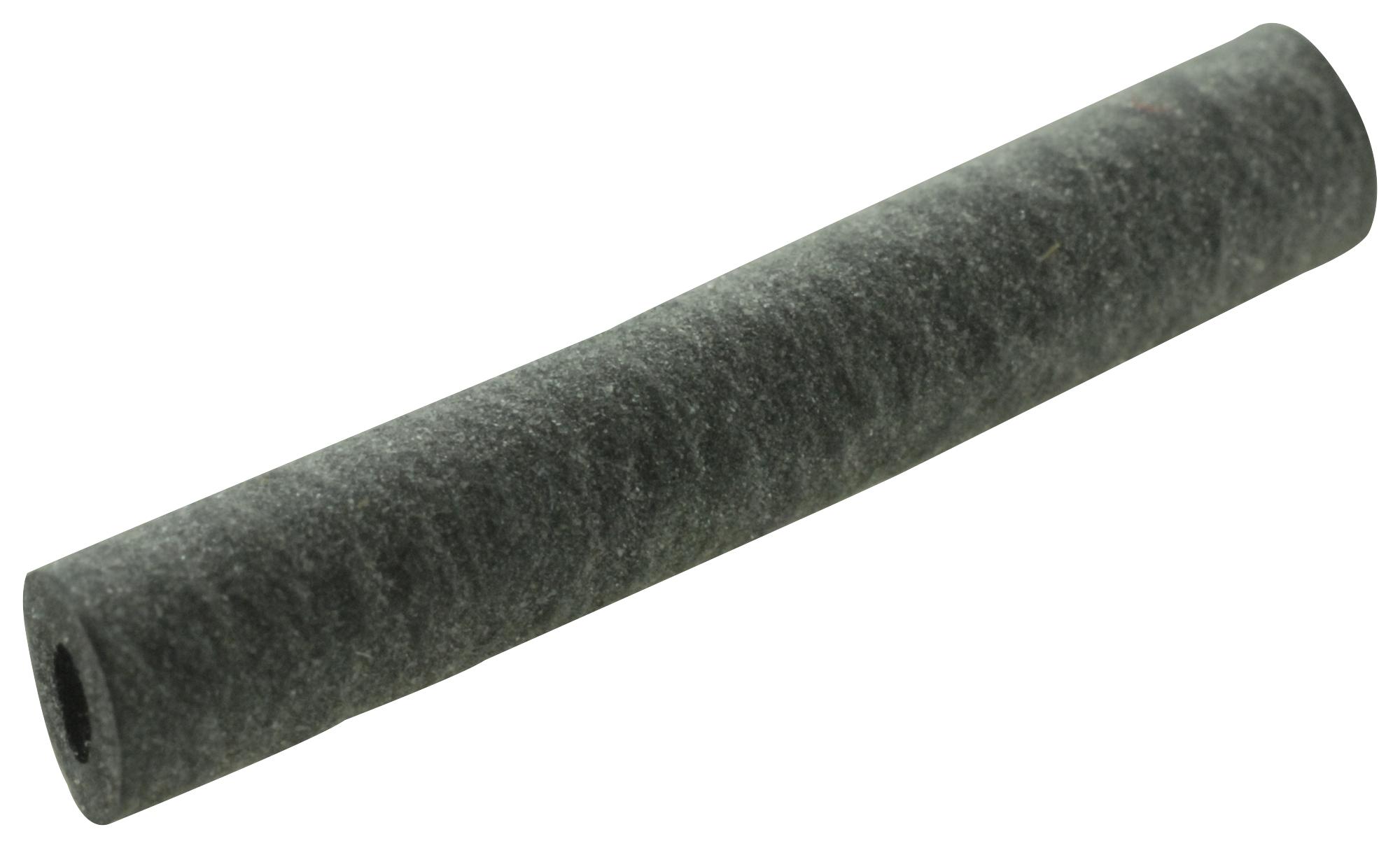

HellermannTyton 60001603 Polychloroprene Tubing
The Helsyn H series from HellermannTyton features non-shrinkable chloroprene tubing designed for demanding environments such as aerospace, transportation, and defense. Made from highly elastic material, it can expand up to 500% during application and comfortably withstand 200% in continuous use. This tubing is ideal for bundling and marking cable harnesses with indelible markers. It is highly flexible, easy to install, and can endure temperatures up to 120°C intermittently. Available in cut lengths, it covers a wide range of cable diameters from 1.2mm to 15mm. The tubing meets UL94 HB flammability standards and is approved according to BS G 198-1, IEC standards, and DEF STAN.
HellermannTyton 60001603 Polychloroprene Tubing Specifications:
- Material: Polychloroprene
- Continuous Operating Temp: -65 °C to +95 °C
- Intermittent Temp: +120 °C
- Flammability: HB UL 94
- Oxygen Index: 28.3 BS 2782:M143
- Proof Voltage: 4KV BS G 198-1
- Volume Resistivity: 10 Qcm BS G 198-1
- Resistance to Acids, Alkalis, Oils, Fuels, Moisture, UV, Ozone: Good
- Shelf Life: 7 +3 years (<40°C)
- Color: Pink
- Nominal Dimensions Range: 5mm to 250mm diameters, wall thickness varies from 0.5mm to 2.05mm, suitable for cable diameters from 1.2mm to 15mm
- Expansion capability: up to 5 times during fitting, 2 times in service
- Approved to standards: BS G 198-1, Def-Stan 59-15, BS3858, IEC 684-3-116
Buy the HellermannTyton Series H Polychloroprene Tubing: 60001603
Order HellermannTyton Series H Polychloroprene tubing online today for superior cable bundling in demanding environments. Its excellent elasticity allows up to 5x expansion, making installation quick and secure. Designed to withstand temperatures up to 120°C intermittently, this tubing is ideal for aerospace, automotive, and telecom applications. It provides excellent chemical resistance, UV stability, and meets rigorous flammability standards. Available in multiple sizes, it offers an easy-to-install, flexible solution for protecting and marking cable harnesses with durable, indelible markers. Shop now for fast delivery!
Buy HellermannTyton Series H Polychloroprene tubing now and experience unmatched flexibility, high temperature resistance, and reliable cable protection.
