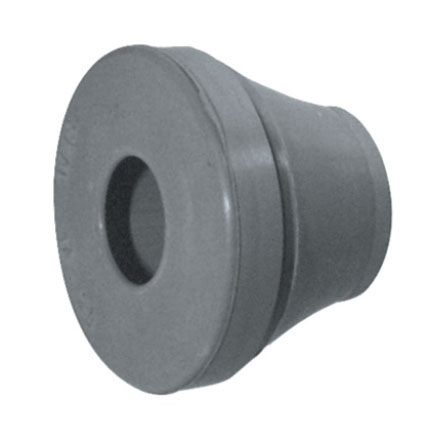

Heyco Products 4014B Liquid Tight Bushing Connector
HEYCO PRODUCTS' liquid tight bushings are designed to provide a robust and reliable seal for cables in various industrial applications. Featuring a snap-in design, these bushings simplify installation and offer light strain relief to the cable. Constructed from EPDM, they are ozone and weather resistant, suitable for both indoor and outdoor environments. They provide protection up to IP 67 and can be used as a liquid tight plug, ensuring a secure and protected connection. Available in black and gray, these bushings accommodate cable diameters ranging from .12˝ (3,0 mm) up to 1.38˝ (35,0 mm).
Heyco Products 4014B Liquid Tight Bushing Connector Specifications:
- Mounting Hole Diameter Range: 0.492˝ (12,5 mm) to 1.988˝ (50,2 mm)
- Cable Diameter Range: 0.12˝ (3,0 mm) to 1.38˝ (35,0 mm)
- Material: EPDM
- Temperature Range: -40°F (-40°C) to 200°F (93°C)
- IP Rating: IP 67
- Description: Liquid tight bushing with snap-in design
- Color: Black and Gray
- Panel Thickness: 0.5 mm (0.02˝) to 2.0 mm (0.08˝)
Buy the 4014B HEYCO PRODUCTS Liquid Tight Bushing Connector | myMectronic
Secure your HEYCO 4014B Liquid Tight Bushing with our easy and reliable online ordering process.
Buy Now
Frequently Asked Questions
Where can I buy Heyco Products 4014B?
You can click on the BUY or RFQ button to purchase 4014B from an authorized Heyco Products distributor.
How do I troubleshoot issues or seek technical support for part 4014B?
You can download the 4014B datasheet or visit the Heyco Products website for support.
Who is the manufacturer of 4014B?
Heyco Products
