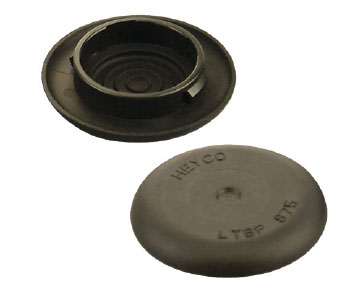

Heyco Products C2062 Liquid Tight Break-Thru Plug
HEYCO PRODUCTS' Liquid Tight Break-Thru Plugs are co-molded nylon and elastomer components designed to provide a liquid-tight seal for electrical and telecommunications cables, tubing, and hoses. These versatile plugs can function as both plugs, providing a liquid-tight closure, or as bushings, converting raw edged holes to smooth, insulated openings. Certified by UL under UL 635, they are suitable for panels ranging in thickness from .02˝ to .25˝ and are available in multiple sizes for use in holes from .500˝ to 1.500˝. Their locking fingers snap into holes with fingertip pressure, providing a secure and reliable connection.
Heyco Products C2062 Liquid Tight Break-Thru Plug Specifications:
- Mounting Hole Diameter Range: 0.500˝ to 1.500˝ (12,7 mm to 38,1 mm)
- Panel Thickness Range: 0.02˝ (0,5 mm) to 0.25˝ (6,4 mm)
- Cable Diameter Range: Varies by part number (see datasheet)
- Flammability Rating: HB
- Temperature Range: -40°F (-40°C) to 212°F (100°C)
- IP Rating: IP 67/68
- Materials: Nylon 6/6 and TPE
- UL Certification: Recognized under UL 635, File E15331
- Push Back Force: Greater than 35 pounds
Buy the C2062 HEYCO PRODUCTS Liquid Tight Break-Thru Plug | myMectronic
Secure your HEYCO C2062 Liquid Tight Break-Thru Plug with our easy and reliable online ordering process.
Buy Now
Frequently Asked Questions
Where can I buy Heyco Products C2062?
You can click on the BUY or RFQ button to purchase C2062 from an authorized Heyco Products distributor.
How do I troubleshoot issues or seek technical support for part C2062?
You can download the C2062 datasheet or visit the Heyco Products website for support.
Who is the manufacturer of C2062?
Heyco Products
