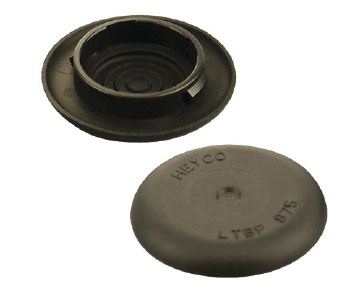

Heyco Products C2070 Liquid Tight Break-Thru Plug
HEYCO PRODUCTS' Liquid Tight Break-Thru Plugs are versatile components designed to provide a liquid-tight seal in a variety of applications. These co-molded nylon 6/6 and TPE parts function as both liquid tight plugs and bushings, offering an IP 67/68 rating. They are ideal for use in panels ranging in thickness from .02˝ to .250˝, and are commonly used to insulate and mechanically protect electrical and telecommunications cables, tubing, hose, rope, and utility lines. Certified by UL under UL 635, these plugs offer a reliable and secure connection for a wide range of industrial applications.
Heyco Products C2070 Liquid Tight Break-Thru Plug Specifications:
- Mounting Hole Diameter Range: 0.500˝ to 1.500˝
- Panel Thickness: 0.02˝ to 0.250˝
- Flammability Rating: HB
- Temperature Range: -40°F to 212°F (-40°C to 100°C)
- IP Rating: IP 67/68
- Materials: Nylon 6/6 and TPE
- UL Certification: UL File E15331
- Push Back Force: Greater than 35 pounds
Buy the C2070 HEYCO PRODUCTS Liquid Tight Break-Thru Plug | myMectronic
Secure your HEYCO C2070 Liquid Tight Break-Thru Plug with our easy and reliable online ordering process.
Buy Now
Frequently Asked Questions
Where can I buy Heyco Products C2070?
You can click on the BUY or RFQ button to purchase C2070 from an authorized Heyco Products distributor.
How do I troubleshoot issues or seek technical support for part C2070?
You can download the C2070 datasheet or visit the Heyco Products website for support.
Who is the manufacturer of C2070?
Heyco Products
