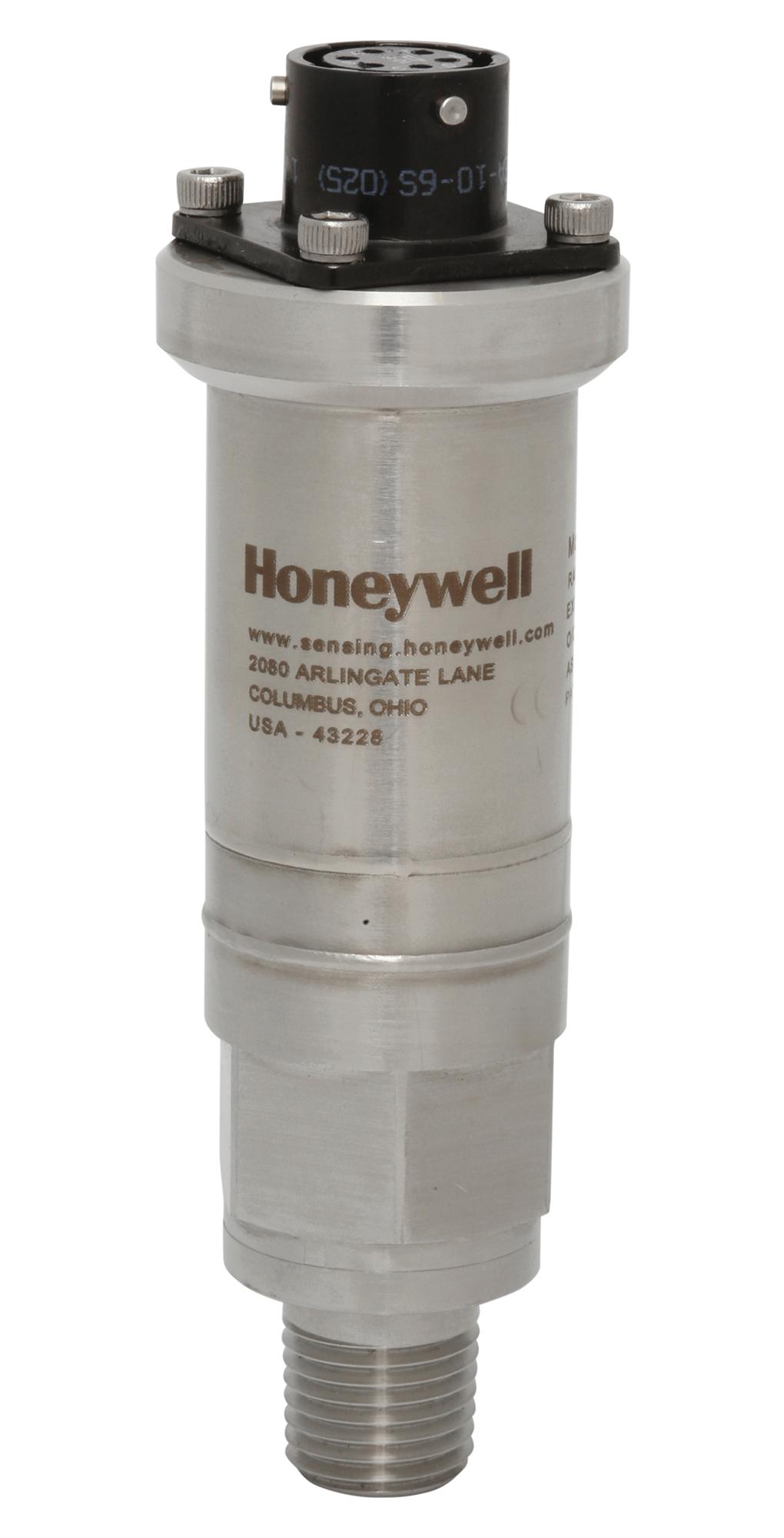

Honeywell 060R18603 Configurable Pressure Transducer
The Honeywell Model FP5000 Series is a media-isolated piezoresistive silicon pressure sensor designed for diverse industrial applications. This configurable transducer offers multiple output options (0-5V, 0-10V, or 4-20mA) and is compensated for offset, sensitivity, temperature effects, and non-linearity, ensuring improved thermal stability and accuracy. Constructed with Hastelloy C276 and 316L stainless steel wetted parts, the FP5000 provides enhanced durability with abrasive or corrosive media. It's ideal for test stands, R&D labs, hydraulic systems, leak detection, and process control, offering a configurable platform to meet specific customer requirements.
Honeywell 060R18603 Configurable Pressure Transducer Specifications:
- Operating pressure ranges: 10 in-H2O [0.36 psi] to 5000 psi
- Accuracy: 0.1 %FSS BFSL (High accuracy)
- Output types: 0 Vdc to 5 Vdc, 0 Vdc to 10 Vdc, 4 mA to 20 mA
- Operating temperature range: -40°C to 125°C
- Wetted parts material: Ha C276 and 316L stainless steel
- Burst pressure: 10X FS
- Weight: 150 g [5.3 oz]
- Thermal Effects Error Band (TEB): ±1.5 %FSS at -20°C to 80°C
Buy the 060-R186-03 HONEYWELL Configurable Pressure Transducer | myMectronic
Purchase the Honeywell 060-R186-03 Configurable Pressure Transducer securely and efficiently for your industrial needs.
Buy Now
Frequently Asked Questions
Where can I buy Honeywell 060R18603?
You can click on the BUY or RFQ button to purchase 060R18603 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part 060R18603?
You can download the 060R18603 datasheet or visit the Honeywell website for support.
Who is the manufacturer of 060R18603?
Honeywell
