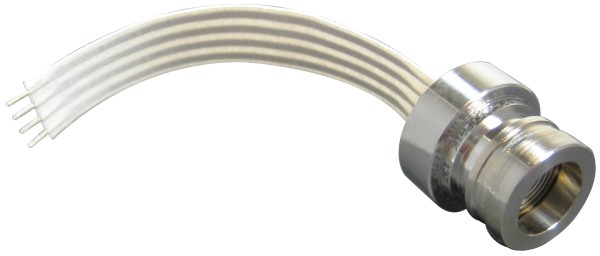

Honeywell 13C1000PA1L Stainless Steel Pressure Sensor
Honeywell’s 13 mm Series stainless steel pressure sensors are engineered for high-pressure applications involving hostile media in demanding environments. Featuring a robust, isolated stainless steel package and utilizing Honeywell’s proven piezoresistive semiconductor sensor chip, these sensors provide reliable, stable, and accurate pressure measurement. The design incorporates a weld-ring collar and back support ring for high cycle life capability, making them suitable for OEM integration. Available with various pressure ranges and supply options, these sensors are widely used in industrial controls, hydraulic systems, and tank pressure monitoring, ensuring dependable performance in challenging conditions.
Honeywell 13C1000PA1L Stainless Steel Pressure Sensor Specifications:
- Compensated temperature range: 0°C to 82 °C [32 °Fto180°F]
- Operating temperature range: -40°C to125°C [-40°Fto257 °F]
- Storage temperature range: -40°C to125°C [-40°Fto257 °F]
- Vibration: 10 G at 20Hz to 2000Hz
- Shock: 100 G for 11 ms
- Life: 1 million cycles min.
- Insulation resistance: 100 mΩ at 50 Vdc
- Voltage version “K” supply voltage: +15Vdc
- Voltage version “L” supply current: +2.0 mA
- Zero pressure offset: -2 to +2 mV
- Pressure non-linearity: ±0.1 to ±0.25 %FSS
- Pressure hysteresis: ±0.015 to ±0.030 %FSS
- Repeatability: ±0.010 to ±0.030 %FSS
- Temp. effect on span: ±0.5 to ±1.0 %FSS
- Temp. effect on offset: ±0.5 to ±1.0 %FSS
- Thermal hysteresis: ±0.1 to ±0.3 %FSS
- Long-term stability of offset and span: ±0.1 to ±0.3 %FSS
- Response time: 0.1 ms
- Common mode voltage (voltage version “K”): 0.50 to 2.0 Vdc
- Input resistance (current version “L”): 2.0 to 8.0 kΩ
- Input resistance (voltage version “K”): 8.0 to 50 kΩ
- Output resistance: 3.0 to 6.0 kΩ
- Pressure range: 0 psi to 1000 psi
- Full scale span: 98mV to 102 mV
- Proof pressure: 3000 psi
- Burst pressure: 5000 psi
Buy the 13C1000PA1L HONEYWELL Stainless Steel Pressure Sensor | myMectronic
Purchase the Honeywell 13C1000PA1L pressure sensor securely and efficiently for your industrial needs.
Buy Now
