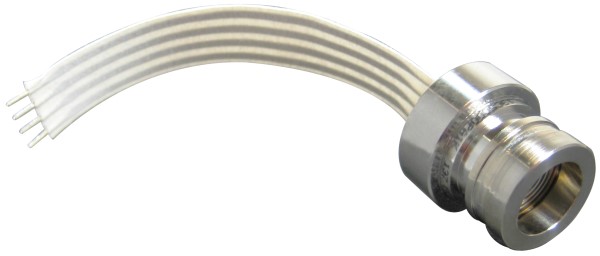

Honeywell 13C2000PS1K Stainless Steel Pressure Sensor
Honeywell’s 13 mm Series stainless steel pressure sensors are engineered for high-pressure applications involving hostile media in demanding environments. Featuring a rugged, isolated stainless steel package and utilizing Honeywell’s proven piezoresistive semiconductor sensor chip, these sensors deliver exceptional reliability, stability, and accuracy. The design incorporates a weld-ring collar and back support ring for high cycle life capability, making them suitable for OEM integration. Available with various pressure ranges and supply options, these sensors are widely used in industrial controls, hydraulic systems, and tank pressure monitoring.
Honeywell 13C2000PS1K Stainless Steel Pressure Sensor Specifications:
- Compensated temperature range: 0°C to 82 °C [32 °Fto180°F]
- Operating temperature range: -40°C to125°C [-40°Fto257 °F]
- Storage temperature range: -40°C to125°C [-40°Fto257 °F]
- Vibration: 10 Gat 20Hz to 2000Hz
- Shock: 100 Gfor 11 ms
- Life: 1 million cycles min.
- Insulation resistance: 100 mΩat 50 Vdc
- Voltage version “K” supply voltage: +15Vdc
- Voltage version “L” supply current: +2.0 mA
- Zero pressure offset: -2 to +2 mV
- Pressure non-linearity: ±0.1 to ±0.25 %FSS
- Pressure hysteresis: ±0.015 to ±0.030 %FSS
- Repeatability: ±0.010 to ±0.030 %FSS
- Temp. effect on span: ±0.5 to ±1.0 %FSS
- Temp. effect on offset: ±0.5 to ±1.0 %FSS
- Thermal hysteresis: ±0.1 to ±0.3 %FSS
- Long-term stability of offset and span: ±0.1 to ±0.3 %FSS
- Response time: 0.1 ms
- Common mode voltage (voltage version “K”): 0.50 to 2.0 Vdc
- Input resistance (current version “L”): 2.0 to 8.0 kΩ
- Input resistance (voltage version “K”): 8.0 to 50 kΩ
- Output resistance: 3.0 to 6.0 kΩ
- Pressure range (13C2000P): 0 psi to 2000 psi
- Proof pressure (13C2000P): 6000 psi
- Burst pressure (13C2000P): 10,000 psi
