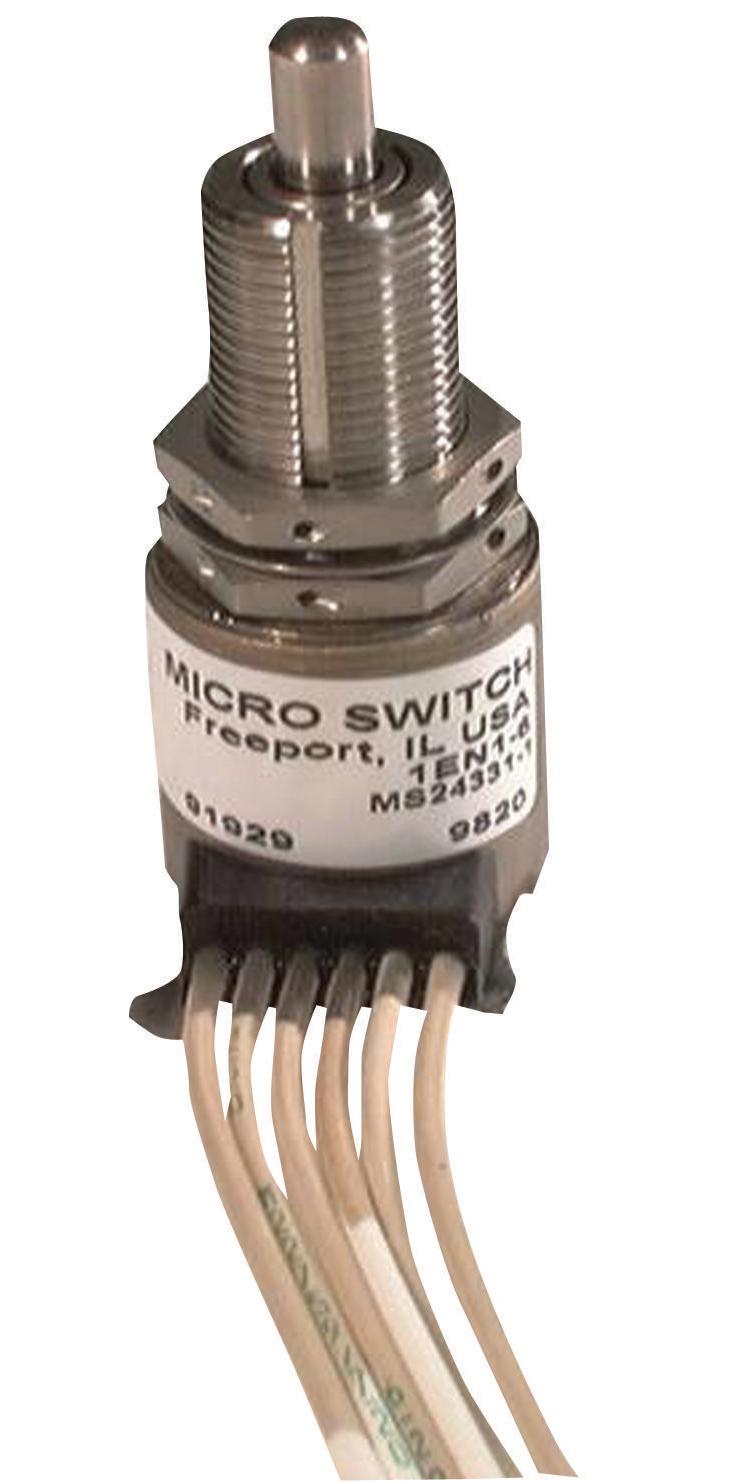

Honeywell 1EN16 Environmentally Sealed Limit Switch
Honeywell's MICRO SWITCH™ EN Series are environmentally sealed limit switches designed for critical applications in commercial and military aircraft, ground-based equipment, and off-road vehicles. These switches are manufactured and qualified to MIL-PRF-8805 standards, providing a durable and reliable solution for position indication and control in harsh environments. The EN Series offers a wide range of configurations, including various circuitries, actuators, and terminations, making them adaptable to diverse industrial needs. Their robust construction, stainless steel housing, and all-metal drive train ensure consistent operation even under extreme temperatures and conditions. Applications include landing gear systems, WOW switch functionality, and door/hatch sensing, contributing to enhanced safety and operational efficiency.
Honeywell 1EN16 Environmentally Sealed Limit Switch Specifications:
- Housing and bushing material: 300 Series stainless steel
- Contact material: Silver alloy, gold plated, gold bifurcated
- Mechanical endurance: 25,000 cycles min.
- Electrical endurance: 25,000 cycles min. @ rated load
- Circuitry: 1PST to 6PDT
- Electrical rating: Up to 15 A @ 28 Vdc
- Dielectric strength: 1000 V RMS; 500 μA max. leakage
- Insulation resistance: 500 Vdc; 1000 Megohms min.
- Environmental sealing: Symbol 4, resilient seal per MIL-PRF-8805
- Temperature range: -54 °C to 125 °C [-65 °F to 257 °F]
- Shock: Symbol M (100 g) per MIL-PRF-8805
- Vibration: Symbol 1, 10 g peak (10 Hz to 500 Hz)
- Standards: Design conforms to MIL-PRF-8805
Buy the 1EN1-6 HONEYWELL Environmentally Sealed Limit Switch | myMectronic
Purchase the Honeywell 1EN1-6 Environmentally Sealed Limit Switch securely and reliably through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy Honeywell 1EN16?
You can click on the BUY or RFQ button to purchase 1EN16 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part 1EN16?
You can download the 1EN16 datasheet or visit the Honeywell website for support.
Who is the manufacturer of 1EN16?
Honeywell
