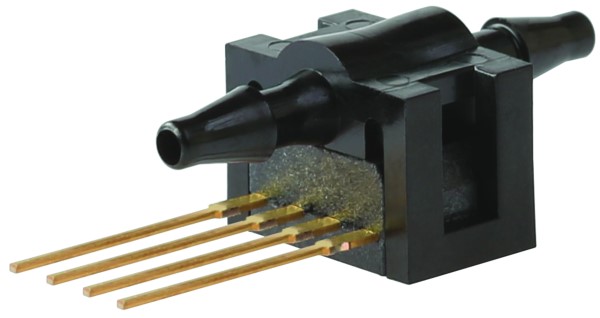

Honeywell 26PCDFG6G Miniature Flow-Through Pressure Sensor
Honeywell's 26PC Series Miniature Low Pressure Flow-Through Sensors offer a compact and accurate solution for pressure monitoring in various industrial and medical applications. These sensors employ a specialized piezoresistive micromachined sensing element within a Wheatstone bridge configuration, providing a proportional mV output signal. Features include selectable seals for media compatibility, a wide pressure range (1 psi to 100 psi), and robust construction suitable for demanding environments. Applications include hemodialysis, medical devices, and industrial process monitoring where precise pressure measurement is critical.
Honeywell 26PCDFG6G Miniature Flow-Through Pressure Sensor Specifications:
- Operating temperature range: -40 °C to 85 °C (with EPDM seals: -20 °C to 85 °C)
- Compensated temperature range: 0 °C to 50 °C
- Storage temperature range: 55 °C to 100 °C
- Supply voltage: 2.5 - 16 Vdc
- Input resistance: 5.5 - 11.5 kOhm
- Output resistance: 1.5 - 3 kOhm
- Time response: 1 ms
- Span: 16.7 - 100 mV
- Null offset: 0 - 2.0 mV
- Linearity: 0.1 - 0.6 %span
- Null shift: ±0.5 - ±1.5 mV
- Span shift: ±0.5 - ±1.5 %span
- Repeatability and hysteresis: ±0.2 - ±0.7 mV
- Overpressure: 20 - 200 psi
