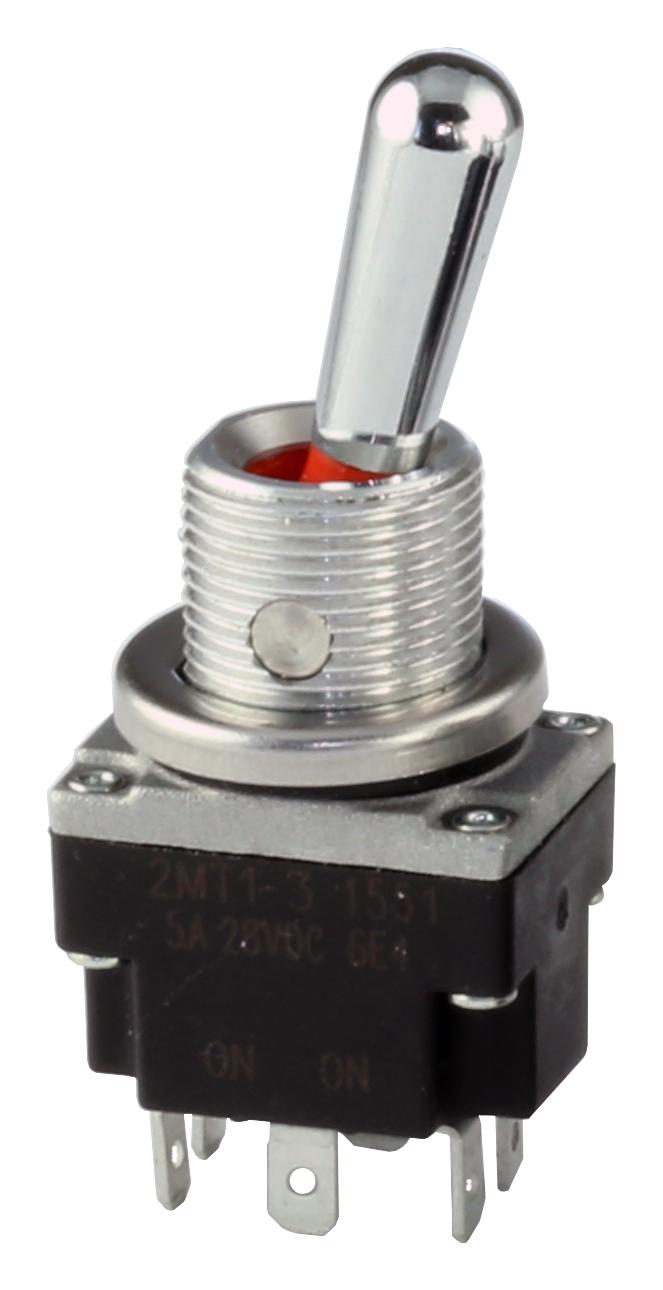

Honeywell 2MT11 Miniature Toggle Switch
Honeywell MICRO SWITCH MT Series miniature toggle switches are rugged, cost-effective, sealing to IP67/IP68 standards, designed for demanding outdoor environments. Featuring a spring-loaded mechanism, these switches provide enhanced tactile feedback and have a high electrical life cycle of up to 60,000 cycles. Available with various circuitry options, the switches are suitable for small control boxes, remote controls, machinery, cranes, and material handling applications. Their sealed design protects against dust, water ingress, and temperature extremes, ensuring long-lasting reliable operation in harsh conditions.
Honeywell 2MT11 Miniature Toggle Switch Specifications:
- Sealing: IEC 60529-2001, IP67, IP68 (except terminal parts)
- Operating Temperature: -40°C to 85°C (-40°F to 185°F)
- Actuator: industry standard polished lever, industry standard switch
- Action: 2- or 3-position, momentary and maintained
- Mounting: bushing 15/32 in (0.47 in)
- Circuitry: UL 61058-1, SPST, SPDT, DPST, DPDT options
- Terminations: solder
- Contacts: silver alloy, gold plated
- Amp Rating: 5A, 28 Vdc (silver contacts); 100 mA, 28 Vdc (gold-plated contacts)
- Electrical Life: 60,000 cycles (silver alloy and gold-plated contacts); 25,000 cycles for DPDT at 5 A, 28 Vdc
- Mechanical Life: 100,000 cycles
- Initial Dielectric Strength: 500 Vdc, 10 mA for 1 minute
- Salt Spray Resistance: 96 hours without red rust
- Vibration: UL 60068-2-6, 10 Hz to 500 Hz, 10 G, 2 hours each direction
- Solder Ability: UL 61058-1, 350°C ± 10°C for 3 seconds
- Certifications: UL recognized, CE certified
- Physical Dimensions: H x W x D approximately 26.7 mm x 20 mm x 15 mm
Buy the Buy Honeywell Micro Switch MT Series Part Number 005437 Online
Order the Honeywell MT Series miniature toggle switches online for reliable performance in demanding environments. With high sealing IP67/IP68 ratings, extended electrical life of up to 60,000 cycles, and multiple circuit options, these switches are ideal for outdoor machinery, cranes, and control panels. Their compact size reduces control box weight and operator fatigue. Designed for harsh conditions, they resist dust, water, and temperature extremes, ensuring long-term operation with minimal maintenance, making them the perfect choice for industrial automation and outdoor applications.
Get Honeywell MT Series toggle switch today—built for rugged outdoor use and long-lasting durability.
Frequently Asked Questions
Where can I buy Honeywell 2MT11?
You can click on the BUY or RFQ button to purchase 2MT11 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part 2MT11?
You can download the 2MT11 datasheet or visit the Honeywell website for support.
Who is the manufacturer of 2MT11?
Honeywell
