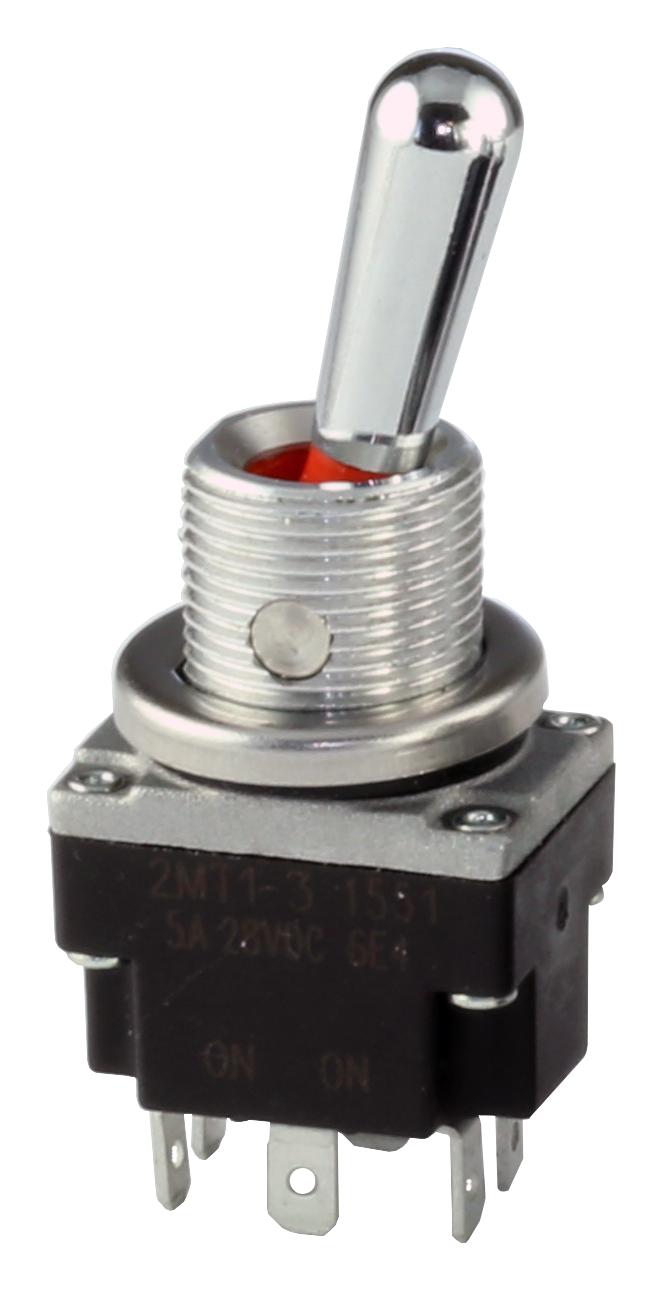

Honeywell 2MT13 Miniature Toggle Switch
Honeywell MICRO SWITCH MT Series miniature toggle switches are rugged, cost-effective, and designed for demanding outdoor environments. They feature high sealing levels (IP67/IP68), a spring-loaded mechanism for tactile feedback, and various circuit options. Suitable for control panels exposed to vibration, temperature extremes, dust, and water ingress, these switches support reliable operation with up to 60,000 electrical cycles. Their compact size makes them ideal for small control boxes, crane controls, and remote equipment, ensuring durability and consistent performance in industrial applications.
Honeywell 2MT13 Miniature Toggle Switch Specifications:
- Sealing: IEC 60529-2001, IP67, IP68 (except terminal parts)
- Operating Temperature: -40°C to 85°C [-40°F to 185°F]
- Actuators: industry standard polished lever
- Action: 2- or 3-position; momentary and maintained
- Mounting: bushing 15/32 inch (0.47 in)
- Circuitry: UL 61058-1, SPST, SPDT, DPST, DPDT
- Terminations: solder
- Contacts: silver alloy, gold plated
- Amp Rating: 5A, 28 Vdc with silver contacts; 100 mA, 28 Vdc with gold contacts
- Electrical Life: up to 60,000 cycles
- Mechanical Life: 100,000 cycles
- Initial Dielectric Strength: 500 Vdc, 10 mA/1 min between open terminals
- Salt Spray: 96 hrs without red rust per SAE J1455
- Vibration: UL 60068-2-6, 10 Hz to 500 Hz, 10 G, 2 hours
- Solderability: UL 61058-1, 350°C ±10°C, 3 sec
- Approvals: UL, CE
Buy the Honeywell 2MT13 – Reliable Toggle Switch for Industrial Applications
Order the Honeywell 2MT13 miniature toggle switch easily online today and upgrade your control panels with a rugged, sealed switch designed for harsh conditions. Featuring high IP67/IP68 sealing, durable construction, and up to 60,000 electrical life cycles, this switch ensures long-lasting reliability in outdoor and industrial environments. Its compact size allows for smaller control boxes, reducing weight and operator fatigue. Perfect for crane controls, remote boxes, and equipment exposed to dust, water, and vibration, enabling continuous uptime and enhanced operational safety.
Buy Honeywell 2MT13 toggle switch now and experience unmatched durability and performance in demanding control environments.
