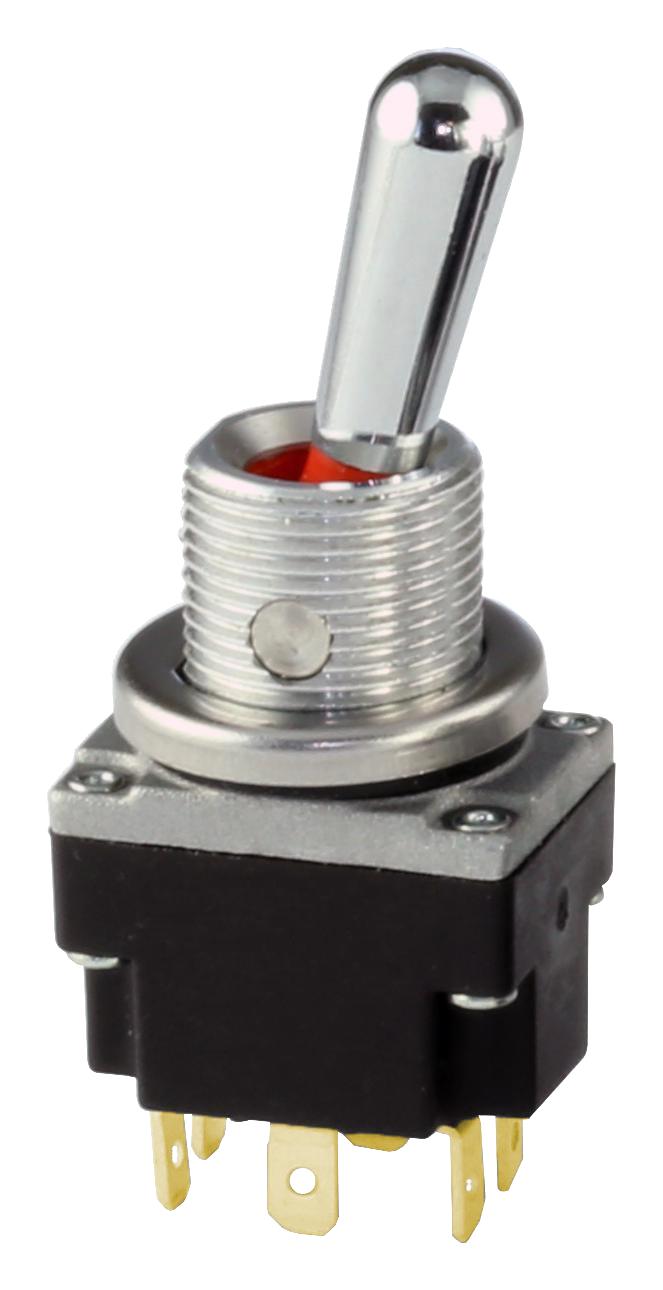

Honeywell 2MT24 Miniature Toggle Switch
Honeywell's MICRO SWITCH MT Series miniature toggle switches are engineered for durability and cost-effectiveness in demanding applications. Key features include a seal between the toggle lever and bushing, and between the cover and case, providing protection against harsh environments like vibration, temperature extremes, dust, and water. Suitable for gloved-hand operation, these switches offer up to 60,000 electrical life and are available with various circuitry options to meet diverse circuit and actuator requirements. They are commonly used in remote control boxes for concrete pumping, cranes, and material handling equipment where space is limited.
Honeywell 2MT24 Miniature Toggle Switch Specifications:
- Sealing: IEC 60529-2001, IP67, IP68 (except terminal parts)
- Operating temperature: -40 °C to 85 °C [-40 °F to 185 °F]
- Action: 2- or 3-position; momentary and maintained
- Mounting bushing: 15/32 in (0.47 in) Ø
- Circuitry: UL 61058-1, SPST, SPDT, DPST, DPDT
- Contacts: silver alloy, gold plated
- Amp rating: 5 A, 28 Vdc with silver contacts; 100 mA, 28 Vdc with gold-plated contacts
- Electrical life: 60K cycles (SPDT, silver alloy and gold-plated contacts); 25K cycles @ 5 A, 28 Vdc (DPDT, silver alloy contacts); 60K cycles @ 100 mA, 28 Vdc (DPDT, gold-plated contacts)
- Mechanical life: 100 K cycles
- Initial dielectric strength: UL 61058-1, 500 Vdc, 10 mA/1 minute between open terminals
- Salt spray: SAE J1455, duration 96 hours without red rust
- Vibration: UL 60068-2-6, 10 Hz to 500 Hz, 10 G, duration two hours each direction
- Solder ability: UL 61058-1, 350 °C ±10 °C, 3 seconds
- Approvals: UL, CE
- Measurement: 26,7 mm H x 20 mm W x 15 mm D [1.05 in H x 0.79 in W x 0.59 in D]
