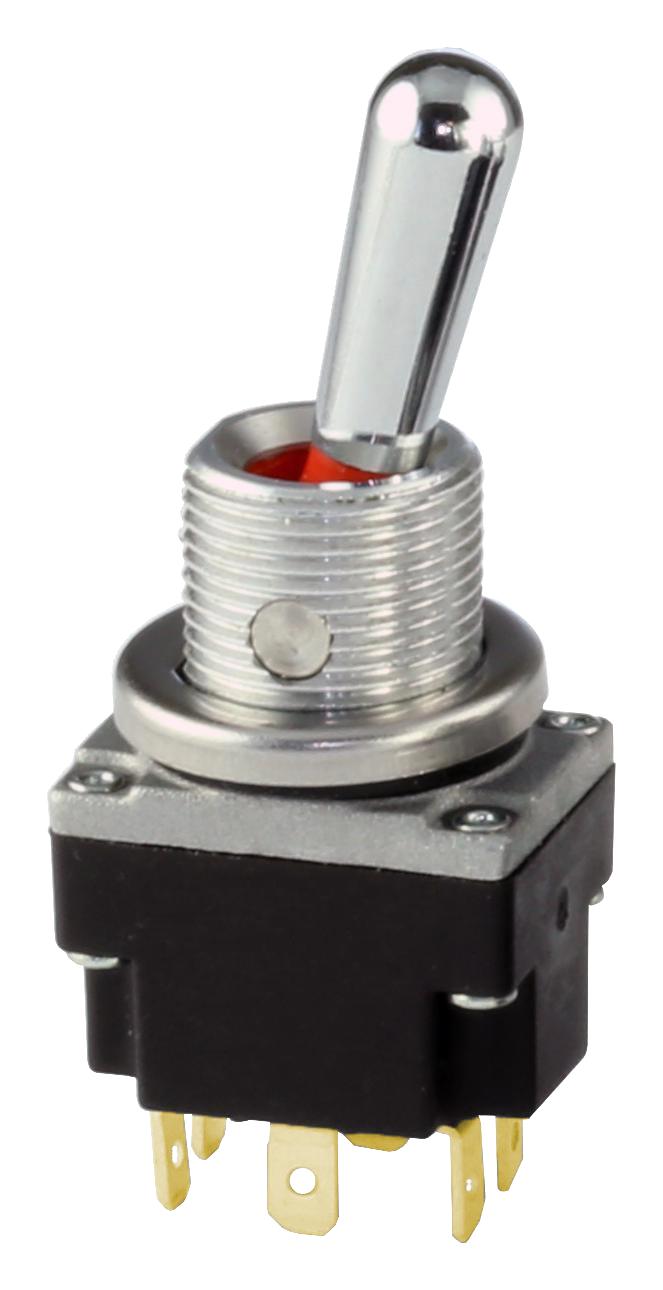

Honeywell 2MT25 Miniature Toggle Switch
Honeywell's MICRO SWITCH MT Series miniature toggle switches provide a robust and economical solution for a wide range of applications. Designed for harsh environments, these switches incorporate a seal between the toggle lever and bushing, and between the cover and case, ensuring protection against dust, water, and vibration. With an electrical life of up to 60,000 cycles and available in various configurations, the MT Series is ideal for remote control boxes, cranes, material handling equipment, and boom trucks where space is limited and reliability is critical. They are UL recognized and CE certified for global use, offering versatility and peace of mind.
Honeywell 2MT25 Miniature Toggle Switch Specifications:
- Sealing: IEC 60529-2001, IP67, IP68 (except terminal parts)
- Operating temperature: -40 °C to 85 °C [-40 °F to 185 °F]
- Action: 2- or 3-position; momentary and maintained
- Mounting bushing: 15/32 in (0.47 in) Ø
- Circuitry: UL 61058-1, SPST, SPDT, DPST, DPDT
- Contacts: silver alloy, gold plated
- Amp rating: 5 A, 28 Vdc with silver contacts; 100 mA, 28 Vdc with gold-plated contacts
- Electrical life: 60K cycles (SPDT, silver alloy and gold-plated contacts); 25K cycles @ 5 A, 28 Vdc (DPDT, silver alloy contacts); 60K cycles @ 100 mA, 28 Vdc (DPDT, gold-plated contacts)
- Mechanical life: 100 K cycles
- Initial dielectric strength: UL 61058-1, 500 Vdc, 10 mA/1 minute between open terminals
- Salt spray: SAE J1455, duration 96 hours without red rust
- Vibration: UL 60068-2-6, 10 Hz to 500 Hz, 10 G, duration two hours each direction
- Solder ability: UL 61058-1, 350 °C ±10 °C, 3 seconds
- Approvals: UL, CE
- Measurement: 26,7 mm H x 20 mm W x 15 mm D [1.05 in H x 0.79 in W x 0.59 in D]
Buy the 2MT2-5 HONEYWELL Miniature Toggle Switch | myMectronic
Purchase the Honeywell 2MT2-5 Miniature Toggle Switch securely and efficiently for your industrial needs.
