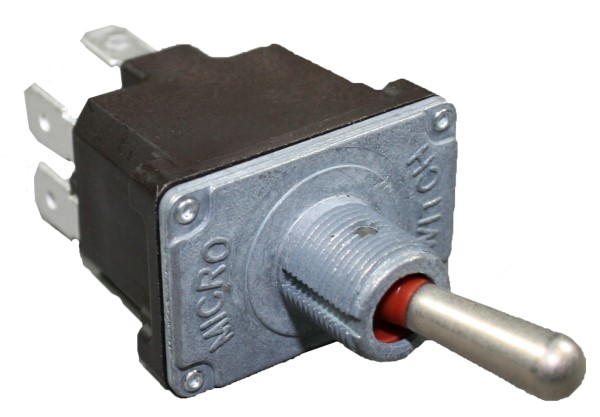

Honeywell 2NT915 Commercial Grade Toggle Switch
Honeywell MICRO SWITCH™ NT Series toggle switches provide a robust and economical solution for a wide range of applications. These switches are built with a seal between the toggle lever and bushing, and between the cover and case, making them ideal for outdoor environments exposed to vibration, temperature extremes, dust, and water. Available in step-base and flat-base styles, the NT Series offers multiple termination options including screw terminals, solder lugs, and quick connect terminals. Features like the optional “Easy Start” bushing and panel stand-off with O-ring further enhance installation and sealing capabilities. They are UL recognized, CSA certified, and CE certified for global use, making them a versatile choice for industrial and commercial applications.
Honeywell 2NT915 Commercial Grade Toggle Switch Specifications:
- Switch Type: Toggle Switch
- Series: MICRO SWITCH™ NT Series
- Sealing: NEMA 3, 3R, 4, 13 and IP67/68
- Operating Temperature: -40 °C to 71 °C [-40 °F to 160 °F]
- Actuators: Standard, locking, special design, tab
- Action: 2- or 3- position; momentary and maintained
- Mounting Bushing: 15/32 in (0.47 in) Ø
- Circuitry: SPST, SPDT, DPST, DPDT, 4PST, 4PDT
- Terminations: Screw, solder, quick connect
- Contacts: Silver alloy, gold-plated
- Amp Rating: Up to 20 A (resistive)
- Approvals: UL, CSA, CE
- Dimensions: 26,7 mm H x 33,5 mm W x 22,6 mm D [1.05 in H x 1.32 in W x 0.89 in D]
Buy the 2NT91-5 HONEYWELL Commercial Grade Toggle Switch | myMectronic
Purchase the Honeywell 2NT91-5 Commercial-Grade Toggle Switch securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy Honeywell 2NT915?
You can click on the BUY or RFQ button to purchase 2NT915 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part 2NT915?
You can download the 2NT915 datasheet or visit the Honeywell website for support.
Who is the manufacturer of 2NT915?
Honeywell
