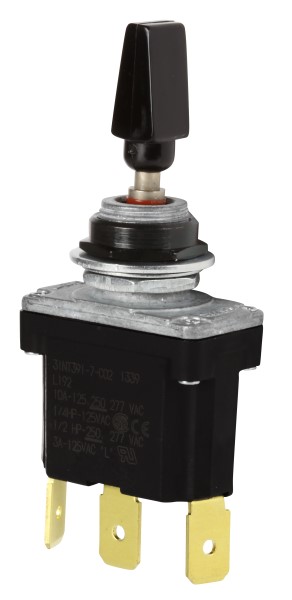

Honeywell 31NT3917C02 Toggle Lever Switch
The Honeywell 31NT391-7-C02 is a heavy-duty toggle switch suitable for industrial and commercial applications. It's designed to provide reliable switching functionality with a lever actuator. The switch is capable of withstanding continuous temperatures of 160°F and is marked with a catalog listing. It is assembled on one or two place configurations and various lever styles and colors are available based on suffix designation. This switch is a dependable solution for a wide range of electrical control needs.
Honeywell 31NT3917C02 Toggle Lever Switch Specifications:
- Circuit: Made with FE D
- Mfg Code: 9 1 929
- Lever: 4
- Keyway: .076
- Width: .008
- 31NT391-1: ON OFF 15A 125, 250, 277 VAC
- 31NT391-2: OFF NONE ON 1/2 HP 125 VAC
- 31NT391-3: ON NONE ON 1 HP 250, 277 VAC
- 31NT391-21: NONE OFF ON 5A 125 VAC
- 31NT391-31: NONE ON ON
- 31NT391-4: MOM OFF NONE ON
- 31NT391-5: MOM ON OFF ON 10A 125, 250, 277 VAC
- 31NT391-6: MOM ON NONE OFF 1/4 HP 125 VAC
- 31NT391-7: MOM ON OFF MOM ON 1/2 HP 250, 277 VAC
- 31NT391-8: MON ON NONE ON 3A 125 VAC
- 31NT391-51: NONE ON MOM ON
- 31NT391-61: MOM ON OFF NONE
- Lever Style: 5
- Lever Color Code: 5
- Total Travel: 3 30'
- Color Identification: White (.328)
- Black: 02
- Blue: 03
- Red: .67
- Sealed: To prevent entrance of liquid or dust
- Green: 05
- Orange: 06
- Gray: 07
- Yellow: 08
- Light Blue: 09
- Thread: 15/32 - 32 UNS-2 A
- Shoulder: .060
- Revision: 20NOV99
- B: 200106
- C: 204645
- D: 207607
- E: 0022923
- Hex Nut: 3
- Lock Washer: 3
- Locking Ring: 3
- Third Angle Projection: 1.12
- Notes: Switches are capable of withstanding a temperature of 160 F continuously at full rated load
- Tolerance Applies: To 'ON' and 'Momentary ON' positions
- Suffix: Must be added for desired lever style and color
- Black Finish: ANSI Y14.5M-1982 applies
- Weight: .07 LB Approx
