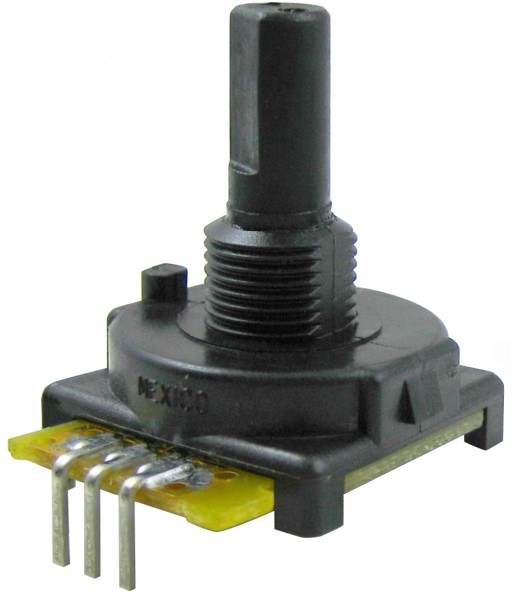

Honeywell 510E1A48F209PB Mechanical Rotary Encoder
Honeywell's 510 Series Mechanical Encoders are manually operated, rotary encoders designed for relative reference applications. These encoders offer a 2-bit gray code output and combine the feel of a rotary switch with digital output functionality. They feature a rotational life exceeding 100,000 shaft rotations and are commonly used in limited-space, panel-mounted applications where front-panel displays are costly. The encoders' digital gray code outputs can eliminate the need for analog/digital converters, contributing to a more cost-effective solution. They are suitable for industrial and medical applications such as audio/visual equipment, smoke detectors, irrigation controls, oscilloscopes, robotics, EKG, and defibrillation machines.
Honeywell 510E1A48F209PB Mechanical Rotary Encoder Specifications:
- resolution: Up to 36 positions
- output_type: 2-bit gray code
- electrical_travel: Continuous
- rotational_life: Over 100,000 shaft rotations
- operating_temperature_range: -40 °C to 105 °C
- mounting_flexibility: Horizontal or vertical
- closed_circuit_resistance: 5 Ohm max.
- open_circuit_resistance: 100 kOhm min.
- contact_rating: 250 mA at 28 Vdc max.
- dielectric_strength: 1000 Vac at sea level
- mechanical_travel: 360º/continuous
- detent_positions: 16, 24, or 36
- operating_torque: 21 mN m to 23 mN m
- operating_speed: 50 rpm, max.
- termination_type: PC type B-110 (straight)
- material_housing: glass-reinforced thermoplastic
- material_terminals: tin-plated brass
- material_pcb: FR4
