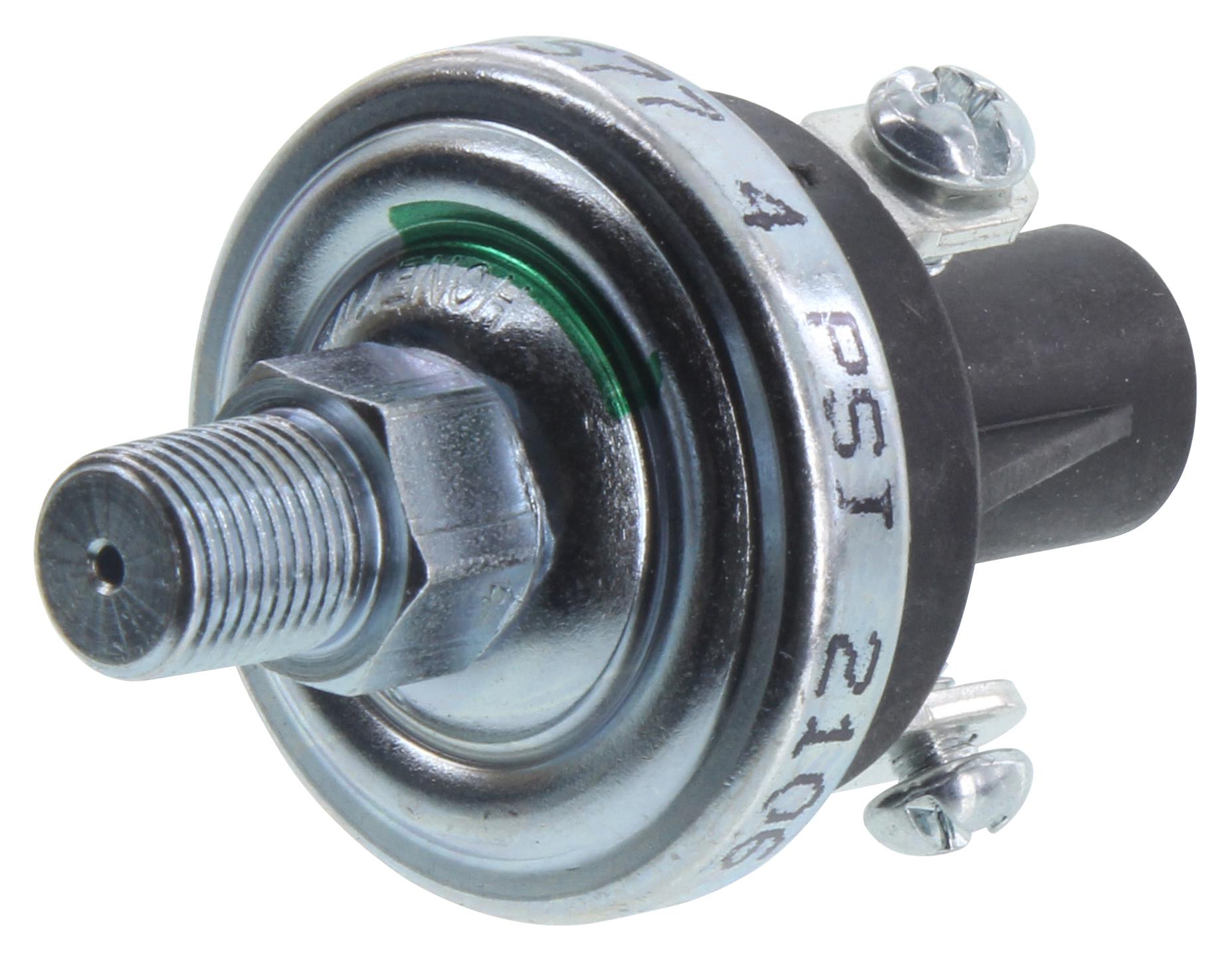

Honeywell 765770000004001 Extended Duty Pressure Switch
The 5000 Series Extended Duty Pressure Switch with Direct Action Blade Contacts is designed for reliable performance in industrial and medical applications. It features a Kapton diaphragm, factory set pressure range from 0.5 to 150 PSI, and a proof pressure of 500 PSI. The switch has durable construction with options for brass, plastic, or stainless steel bases, and various connector and terminal configurations, including Metri-Pack and NPT threads. Suitable for operation with oils, fuels, and hydrocarbons, it offers resistive and inductive ratings, with field adjustable set points and multiple circuit configurations for versatile industrial use.
Honeywell 765770000004001 Extended Duty Pressure Switch Specifications:
- Set Point Range: 0.5 to 150 PSI
- Proof Pressure: 500 PSI
- Burst Pressure: 750 PSI for 0.5-24 PSI, 1250 PSI for 25-150 PSI
- Operating Temperature: -40°F to +250°F
- Diaphragm Material: Polyimide film
- Connection: 1/8 -27 NPT male thread or Metri-Pack connector
- Contact Ratings: Resistive 15 AMP- 6 VDC, 8 AMP- 12 VDC, 4 AMP- 24 VDC; Inductive 1 AMP- 120 VAC, 0.5 AMP- 240 VAC
- Switch Type: SPST-N.O., N.C., dual circuits, adjustable
- Circuit Terminals: #8-32 screws, 1/4” blade
- Base Material: Plated Steel, options for brass, plastic, or stainless steel
- Connector Options: Various thread sizes, wire leads (potted & sealed)
- Operation Media: wide range of oils, fuels, hydrocarbons
- Additional Features: Factory set, field adjustable, compact size for extended duty applications
Buy the Industrial Equipment 5000 Series U+2013 Reliable Pressure Switch for Industrial Applications
Experience reliable performance with the Extended Duty Pressure Switch from Industrial Equipment, designed for industrial and medical applications. This switch features a durable Kapton diaphragm, factory set pressure range from 0.5 to 150 PSI, proof pressure of 500 PSI, and an option for field adjustment. Its compact design and versatile circuit configurations—SPST, N.C., N.O., dual circuits—make it suitable for handling oils, fuels, and hydrocarbons. Order online today and ensure your systems operate with precision, durability, and maximum efficiency.
Order your Industrial Equipment 5000 Series pressure switch today and give your projects the dependable size and enduring performance they deserve.
Frequently Asked Questions
Where can I buy Honeywell 765770000004001?
You can click on the BUY or RFQ button to purchase 765770000004001 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part 765770000004001?
You can download the 765770000004001 datasheet or visit the Honeywell website for support.
Who is the manufacturer of 765770000004001?
Honeywell
