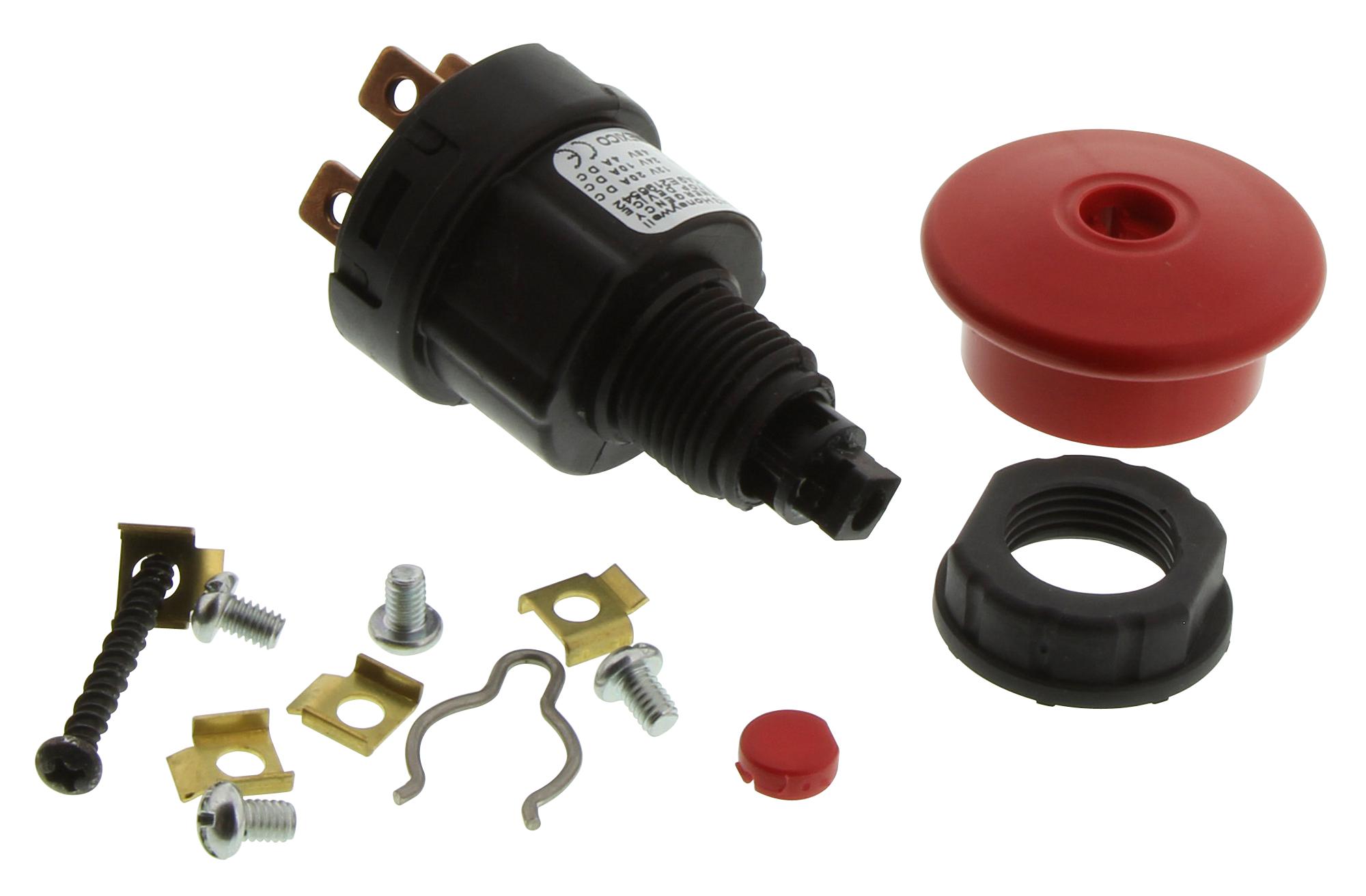

Honeywell 8794308 Push-Pull Switch
Honeywell push-pull and E-stop switches are durable, environmentally sealed, and feature sliding contacts with dual O-ring design for moisture protection. They support multiple circuit configurations, withstand severe temperature ranges, vibration (18 Hz to 1000 Hz), and are UL and CE certified. These rugged switches are suitable for demanding environments such as construction, marine, and heavy equipment. They provide positive contact closure, easy customization with multiple knob colors, and are engineered for long service life in challenging conditions, ensuring reliable equipment operation and safety.
Honeywell 8794308 Push-Pull Switch Specifications:
- Electrical Nominal Voltage: 12 Vdc, 24 Vdc, 48 Vdc, or 300 Vdc
- Maximum Current: 20 A at 12 Vdc, 10 A at 24 Vdc, 4 A at 48 Vdc
- Mechanical Operating Force: 27N ± 14N
- Electrical Life: 25,000 cycles at rated load
- Vibration: 18 Hz to 1000 Hz at 10g max
- Temperature Range: -40°C to 40°C operation, -40°C to 80°C storage
- Sealing: IP67 rated in select models
- Connector Types: Screw terminals or Deutsch connectors
- Impact Resistance: Drop from 1 meter (89.37 inches)
- Switch Contacts: 1NC/1NO or 2NC/2NO configurations available
- Environmental Resistance: Dust, moisture, chemicals, pressure wash, salt
- Certifications: UL, CE (select listings)
Buy the Honeywell 8794308 – Reliable Push-Pull and E-Stop Switches for Industrial Applications
Get your Honeywell push-pull and E-stop switch now online for exceptional durability in demanding industrial applications. Engineered with environmental seals, positive contact operation, and multiple circuit options, these switches resist vibration, moisture, and dirt. Perfect for construction, marine, or heavy equipment, they ensure reliable safety and control. Easy to install with screw terminals or Deutsch connectors, delivering long-lasting service in severe temperatures and harsh conditions. Purchase today for seamless integration into your safety and control systems, backed by Honeywell’s quality assurance.
Order your Honeywell 8794308 series push-pull switch today and enhance your machinery with dependable, sealed contact switches suitable for harsh environments.
Frequently Asked Questions
Where can I buy Honeywell 8794308?
You can click on the BUY or RFQ button to purchase 8794308 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part 8794308?
You can download the 8794308 datasheet or visit the Honeywell website for support.
Who is the manufacturer of 8794308?
Honeywell
