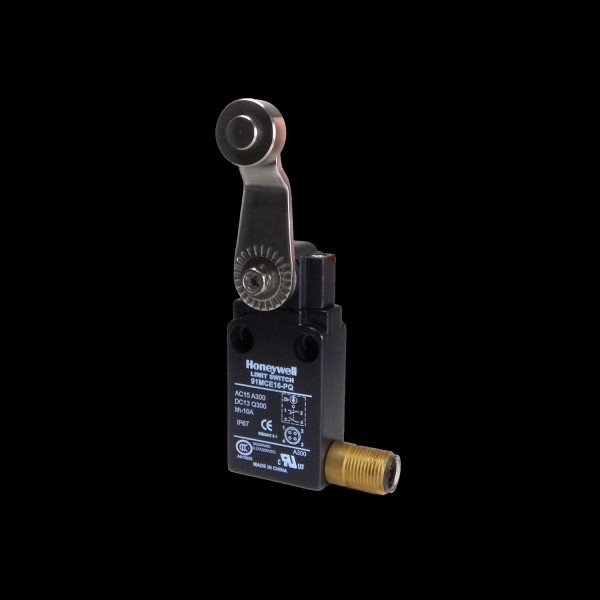

Honeywell 91MCE16PQ Mini Compact Limit Switch
The Honeywell 91MCE series limit switch is a compact and versatile solution for industrial OEMs. Its miniature package size allows for gang mounting in applications with limited space, while the 20mm mounting pattern ensures compatibility with globally accepted standards. The switch features direct-acting contacts, epoxy-sealed housing for durability, and options for pre-leaded cables or M12 connectors. It is priced competitively and offers enhanced quality, making it a suitable drop-in replacement for various applications, including machine equipment, material handling, and off-road vehicles.
Honeywell 91MCE16PQ Mini Compact Limit Switch Specifications:
- Operating speed: 0.05mm to 1 m/second
- Operating frequency – mechanical: 120 ops per minute
- Operating frequency – electrical: 30 ops per minute
- Insulation resistance: > 100Mohm @ 500Vdc
- Rated voltage: 300Vac (EN60947-5-1)
- Rated thermal current: 10A (pre-leaded versions); 3A (connector versions)
- Electrical rating: AC15 A300; DC13 Q300
- Dielectric strength: 1000 Vac for one minute between current carrying parts; 2500Vac for one minute between non-current carrying parts
- Expected mechanical life: 5 million operations
- Expected electrical life: 5 x 10^5 operations
- Operating temperature: -25°C to 85°C [-13°F to 185°F]
- Humidity: <95 %RH
- Cable: 5 core, 0.75mm2
- Degree of protection: IP67
