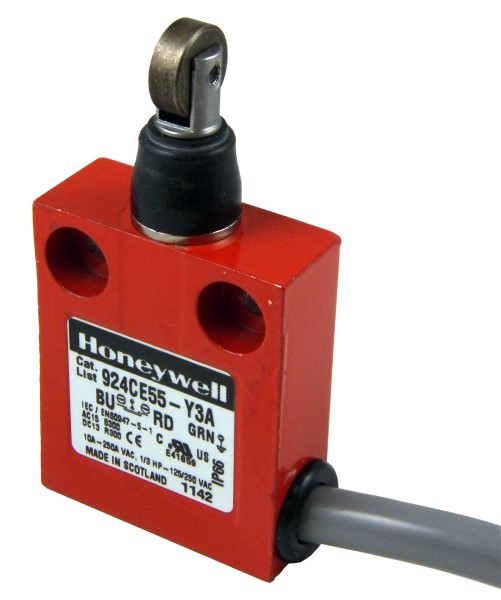

Honeywell 924CE55Y3A Miniature Safety Switch
Honeywell’s 924CE Series miniature safety switches offer a compact and robust solution for safety applications. These switches feature a rugged metal housing, positive opening normally closed contacts meeting EN/IEC 60947-5-1-3 specifications, and are designed for use in industrial machinery, material handling, and transportation equipment. The switches are environmentally sealed to IP66 and can be configured with various actuators, circuits, and terminations to meet specific application requirements. They are evaluated for safety functions up to a SIL3 level, making them suitable for critical safety systems.
Honeywell 924CE55Y3A Miniature Safety Switch Specifications:
- Housing Material: Epoxy coated die-cast zinc
- Contact Type: Slow action
- Contact Material: Silver alloy
- Utilization Category: AC15, B300: DC13, R300
- Rated Operational Voltage (Ue): 240 V ac or dc
- Rated Operational Current: 1.5 A, 0.1 A
- Rated Thermal Current (Ith): 10 A
- Rated Impulse Withstand Voltage (Uimp): 2500 V
- Maximum Fuse Rating: 10 A
- Environmental Sealing: IP66
- Operating Temperature (Standard): 0 °C to 70 °C [32 °F to 158 °F]
- Operating Temperature (Optional): -40 °C to 70 °C [-40 °F to 158 °F]
- Mechanical Life (MCTF): >1,000,000 cycles
- Electrical Life (MCTF): >25,000 cycles
- SIL Capability: Up to SIL3 (HFT1), IEC61508-2:2010
- Proof Test Interval: 1 year
- Certifications: CE, cULus, SIRA, IEC/EN60947-5-1
