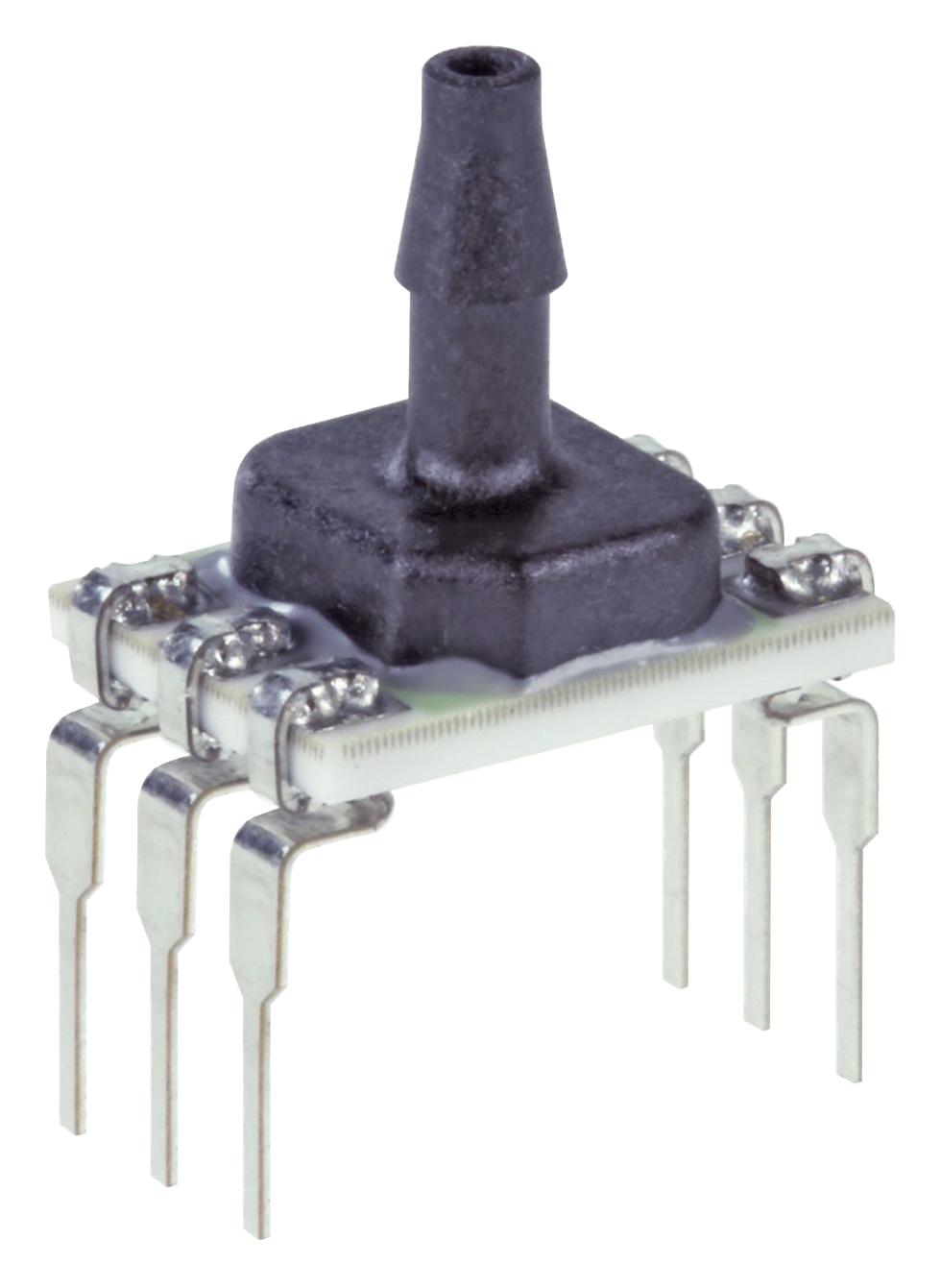

Honeywell ABP2DANT150PGSA3XX Board Mount Pressure Sensor
The ABP2 Series is a versatile set of high-accuracy, compensated/Amplified board mount pressure sensors designed for various industrial, medical, and commercial applications. They offer digital and analog outputs and are liquid media compatible with optional gel coating for corrosion resistance. These sensors operate over a wide temperature range from -40°C to 110°C, with pressure ranges from 6 mbar to 12 bar or 175 psi. They feature high burst pressure, low power consumption, and are compliant with IPC/JEDEC J-STD-020E standards, making them ideal for IoT and automation systems.
Honeywell ABP2DANT150PGSA3XX Board Mount Pressure Sensor Specifications:
- Pressure Range: 6 mbar to 12 bar / 175 psi
- Supply Voltage: 3.3Vdc, 5Vdc options
- Output: Digital (I2C/SPI), Ratiometric Analog
- Temperature Range: -40°C to 110°C (-40°F to 230°F)
- Burst Pressure: High burst capacity ensuring safety margins
- Long-term Stability: As low as 40.2 %FSS
- Total Error Band: As low as +1.5 %FSS over temperature and pressure range
- Power Consumption: As low as 0.01 mW (digital), varied for analog versions
- Liquid media compatibility with optional silicone gel coating
- Certifications: NSF169, BPA Free, LFGB, RoHS, REACH
- Physical Dimensions: Refer to datasheet figures for package size and port configurations
- Ports: Plastic or metal axial/barbed configurations, optional axial straight or tapered ports
Buy the Honeywell ABP2DANT150PGSA3XX – Reliable Pressure Sensors for Industrial Applications
Purchase the Honeywell ABP2 Series pressure sensor online today to ensure your industrial or medical system benefits from high accuracy, wide pressure range, and robust liquid media compatibility. Designed for ease of integration with digital and analog outputs, these sensors meet strict standards for stability and reliability. With the added advantage of corrosion-resistant gel coating option, they are ideal for IoT applications, automation systems, and critical process controls. Order now to enhance your system's performance with proven quality and fast delivery.
Buy Honeywell ABP2DANT150PGSA3XX now and experience unmatched reliability and performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy Honeywell ABP2DANT150PGSA3XX?
You can click on the BUY or RFQ button to purchase ABP2DANT150PGSA3XX from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part ABP2DANT150PGSA3XX?
You can download the ABP2DANT150PGSA3XX datasheet or visit the Honeywell website for support.
Who is the manufacturer of ABP2DANT150PGSA3XX?
Honeywell
