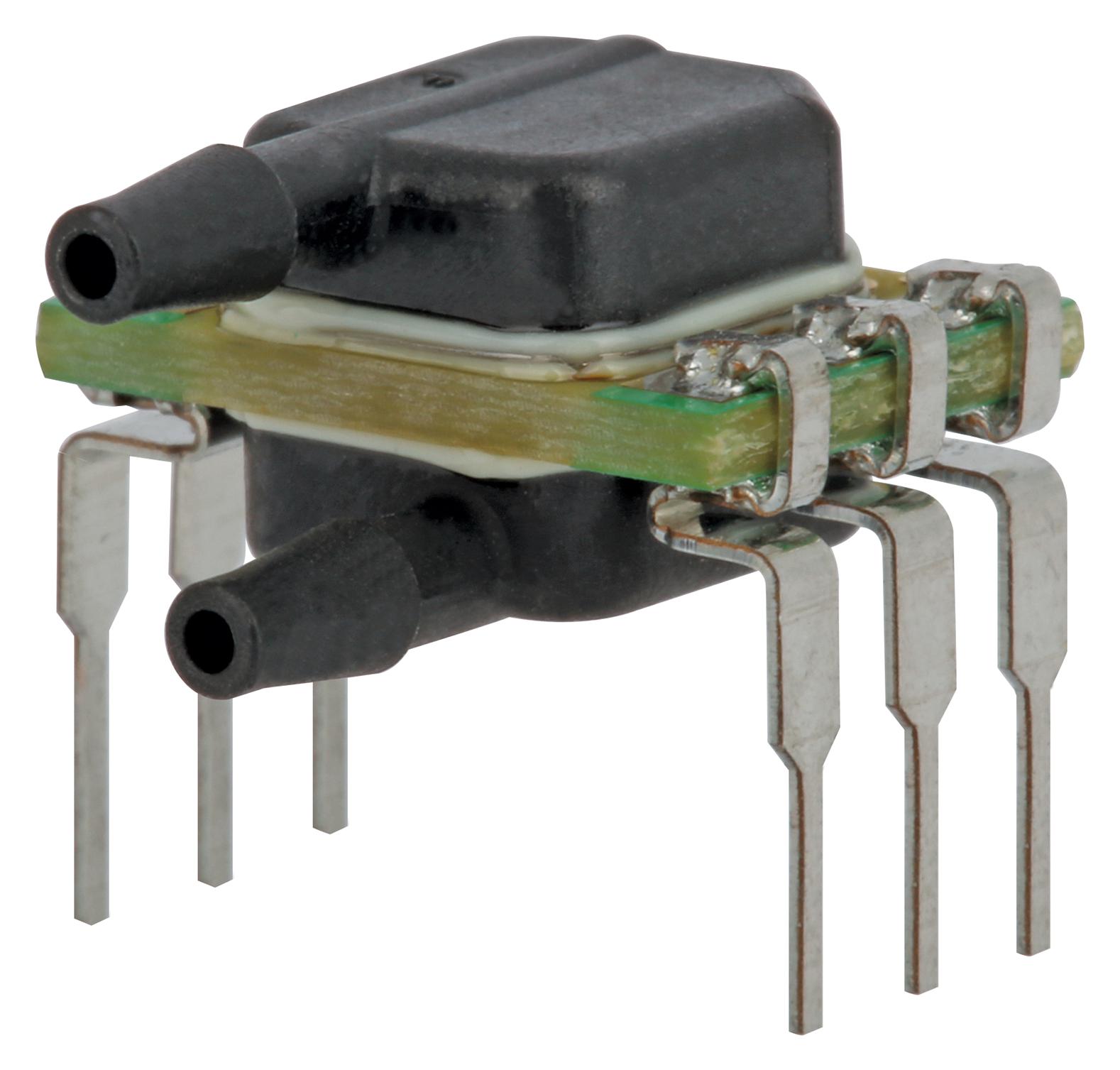

Honeywell ABP2DRRT001PDAA3XX Board Mount Pressure Sensor
The ABP2 Series are high-accuracy, compact board mount pressure sensors designed for liquid and gaseous media. They offer digital or analog outputs, are calibrated and temperature compensated across wide pressure ranges from 6 mbar to 12 bar, and support extensive applications including medical, industrial, and commercial settings. Features include liquid media compatibility with gel coating, high burst pressure, wide temperature range from -40°C to 110°C, low power consumption, and standards compliance like ISO 9001, RoHS, and REACH. Designed for reliable, long-term performance, these sensors simplify integration in IoT and control systems, providing precision and durability.
Honeywell ABP2DRRT001PDAA3XX Board Mount Pressure Sensor Specifications:
- Pressure Range: 6 mbar to 12 bar | 600 Pa to 1.2 MPa | 2 inH2O to 175 psi
- Output: Digital (I2C or SPI), Ratiometric Analog
- Accuracy: ±0.25 %FSS BFSL, Total Error Band as low as +1.5 %FSS
- Temperature Range: -40°C to 110°C [-40°F to 230°F]
- Burst Pressure: High burst pressures suitable for industrial applications
- Overpressure: Up to 16 bar gage depending on model
- Materials: Compatible with liquid and dry gaseous media, food-grade silicone gel coating optional
- Power Consumption: As low as 0.01 mW for digital versions; Analog versions vary but optimized for low power
- Vibration and Shock Resistance: Vibration up to 15g, shock up to 75g
- Standards: ISO 9001, RoHS, REACH, and UL Listed options
- Port Types: Radial and axial barbed ports, with options for single or dual ports, and port materials suitable for different media
- Physical Dimensions: Small form factor, specific packages include DIP, SMT, leadless SMT with pressure port options
- Calibrated over wide pressure and temperature ranges with minimal part-to-part variation
- Suitable for IoT applications, process control, medical devices, HVAC, and automotive systems
Buy the Honeywell Series ABP2 Pressure: ABP2DRRT001PDAA3XX
Purchase Honeywell ABP2DRRT001PDAA3XX online today—designed for high accuracy and reliability across a wide pressure range from 6 mbar to 12 bar. This compact, versatile sensor supports liquid and gaseous media, with digital and analog output options, making it ideal for medical, industrial, commercial, and IoT applications. Its calibrated, temperature-compensated design ensures consistent performance in extreme environments, while low power consumption and compliance with industry standards provide long-term stability. Perfect for integration into precision control systems, offering durability and ease of installation.
Get Honeywell ABP2DRRT001PDAA3XX today—built for precision, long-lasting durability, and flexible integration in your applications.
Frequently Asked Questions
Where can I buy Honeywell ABP2DRRT001PDAA3XX?
You can click on the BUY or RFQ button to purchase ABP2DRRT001PDAA3XX from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part ABP2DRRT001PDAA3XX?
You can download the ABP2DRRT001PDAA3XX datasheet or visit the Honeywell website for support.
Who is the manufacturer of ABP2DRRT001PDAA3XX?
Honeywell
