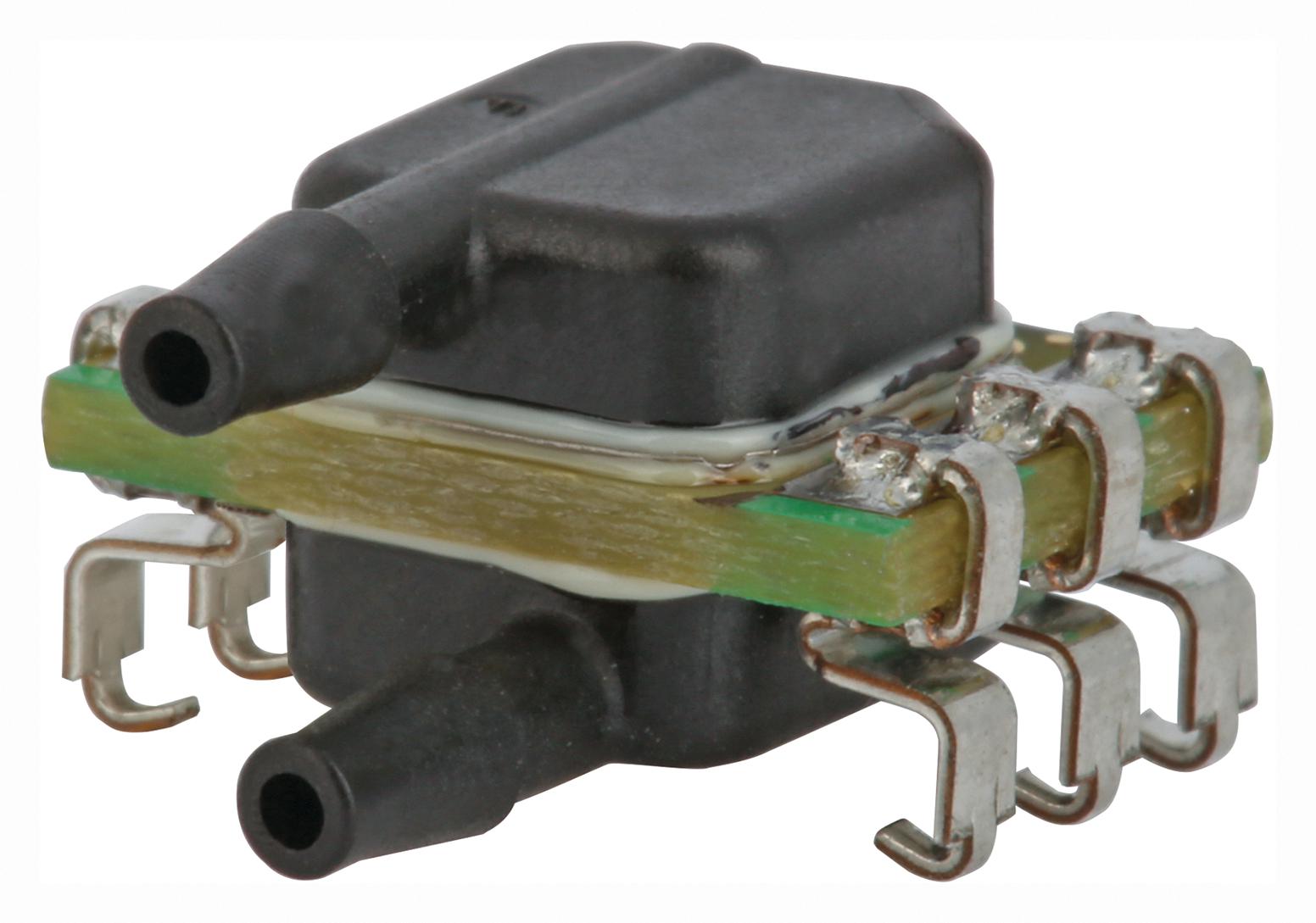

Honeywell ABP2MRRT060MDAA5XX Board Mount Pressure Sensor
The ABP2 Series are high-accuracy, compensated/digitally amplified board mount pressure sensors with a wide range of pressure options from 6 mbar to 12 bar. Designed for liquid media compatibility, they feature digital or analog outputs, quick response, long-term stability, and robust construction suitable for diverse applications including medical, industrial, and automation systems. Calibrated and temperature compensated, these sensors meet ISO 9001 standards, ensuring reliability in critical measurements with reduced calibration time and enhanced system performance.
Honeywell ABP2MRRT060MDAA5XX Board Mount Pressure Sensor Specifications:
- Pressure Range: 6 mbar to 12 bar | 600 Pa to 1.2 MPa | 2 inH,0 to 175 psi
- Operation Temperature: -40°C to 110°C [-40°F to 230°F]
- Accuracy: +0.25 %FSS BFSL
- Total Error Band: as low as +1.5 %FSS
- Liquid Media Compatibility: Protected electronics with gel coating for water/saline use
- Output: Digital (I2C/SPI) and Analog options, 24-bit data with 200 Hz update rate
- Supply Voltage: 3.3 Vdc or 5 Vdc
- Power Consumption: as low as 0.01 mW (typical) at 1 Hz measurement rate
- Response Time: Approx. 2.5 ms for power-up and measurement
- Vibration Resistance: 15g, 10 Hz to 2 kHz
- Shock Resistance: 75g, 6 ms
- Standards: ISO 9001, IPC/JEDEC J-STD-020E
Buy the Buy Honeywell ABP2 Series Pressure Sensor Part Number ABP2MRRT060MDAA5XX Online
Order the Honeywell ABP2 series board mount pressure sensor online today to benefit from high accuracy, liquid media compatibility, rapid response, and long-term stability. Perfect for medical, industrial, and IoT applications, this sensor offers digital and analog outputs, extensive calibration, and temperature compensation, ensuring precise and reliable pressure readings across a wide temperature range. Designed according to ISO 9001 standards, it allows for quick integration, reduces calibration time, and meets demanding industry standards for safety and performance.
Buy Honeywell ABP2MRRT060MDAA5XX now and experience unmatched reliability and performance in liquid media measurement applications.
Frequently Asked Questions
Where can I buy Honeywell ABP2MRRT060MDAA5XX?
You can click on the BUY or RFQ button to purchase ABP2MRRT060MDAA5XX from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part ABP2MRRT060MDAA5XX?
You can download the ABP2MRRT060MDAA5XX datasheet or visit the Honeywell website for support.
Who is the manufacturer of ABP2MRRT060MDAA5XX?
Honeywell
