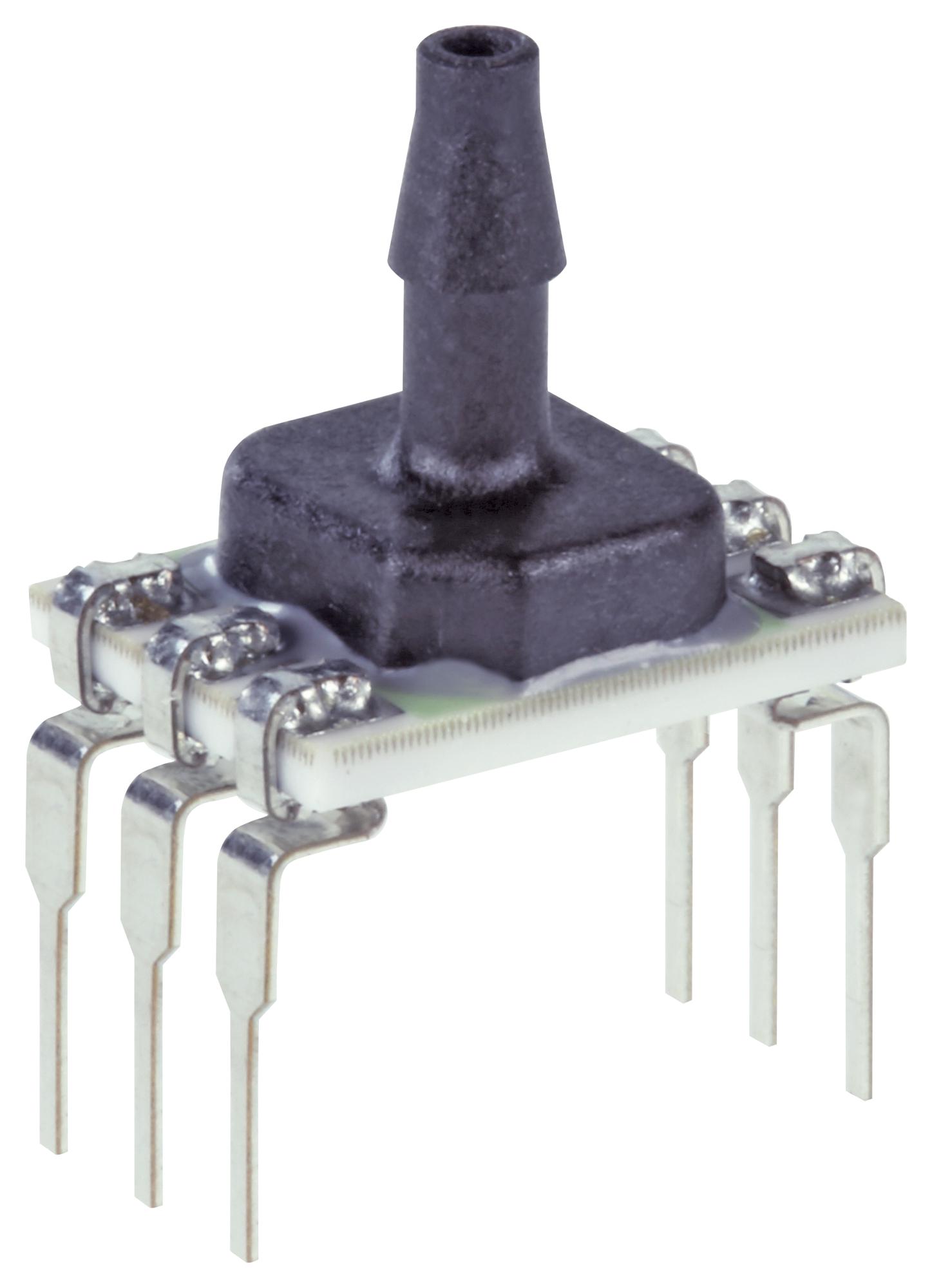

Honeywell ABPDANT005PGAA5 Pressure Sensor
The ABPDANT005PGAA5 is a 0 to 5 psi, 5VDC, silicon piezo-resistive pressure sensor featuring a single-axial barbed port. It provides ratio-metric analog or digital output that measures pressure within its specified full-scale range and temperature. Fully calibrated and temperature compensated for offset, sensitivity, and accuracy errors via an onboard ASIC, the sensor updates analog signals at about 1 kHz. Suitable for non-corrosive, non-ionic gases like air, it offers industry-leading stability, low energy consumption, and broad application in sensing, medical, industrial, HVAC, and control systems.
Honeywell ABPDANT005PGAA5 Pressure Sensor Specifications:
- Measurement Range: 0 to 5 psi
- Supply Voltage: 5 VDC
- Output: Ratiometric analog; I2C or SPI digital (14-bit resolution)
- Calibration: Fully calibrated and temperature compensated
- Update Rate: ~1 kHz for analog output
- Port: Single-axial barbed port
- Material: Silicon, ceramic, glass, gold, epoxy
- Warranty: Industry-leading stability, low energy consumption
- Application: Sensing gauge and differential pressure for non-corrosive gases such as dry air
- Coating: Silicone gel coating for moisture protection
- Environmental: Operating temperature –40°C to +85°C
- Electrical: Compatible with 3.3 V or 5 V supplies
- Standards: ISO 9001 manufacturing quality
Buy the Buy Honeywell Pressure Sensor Part Number ABPDANT005PGAA5 Online
Purchase the Honeywell pressure sensor ABPDANT005PGAA5 online today to ensure your projects benefit from precise pressure measurement with industry-leading stability. This high-quality silicon piezo-resistive sensor offers a 0 to 5 psi full-scale range, fully calibrated and temperature compensated via onboard ASIC. Its analog and digital outputs provide fast update rates for accurate readings in industrial, medical, and HVAC systems. Waterproof coating, compact design, and low energy draw make it ideal for diverse sensing applications requiring reliability and long-term performance.
Order your Honeywell ABPDANT005PGAA5 sensor today and enhance your pressure sensing applications with industry-leading stability and accuracy.
Frequently Asked Questions
Where can I buy Honeywell ABPDANT005PGAA5?
You can click on the BUY or RFQ button to purchase ABPDANT005PGAA5 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part ABPDANT005PGAA5?
You can download the ABPDANT005PGAA5 datasheet or visit the Honeywell website for support.
Who is the manufacturer of ABPDANT005PGAA5?
Honeywell
