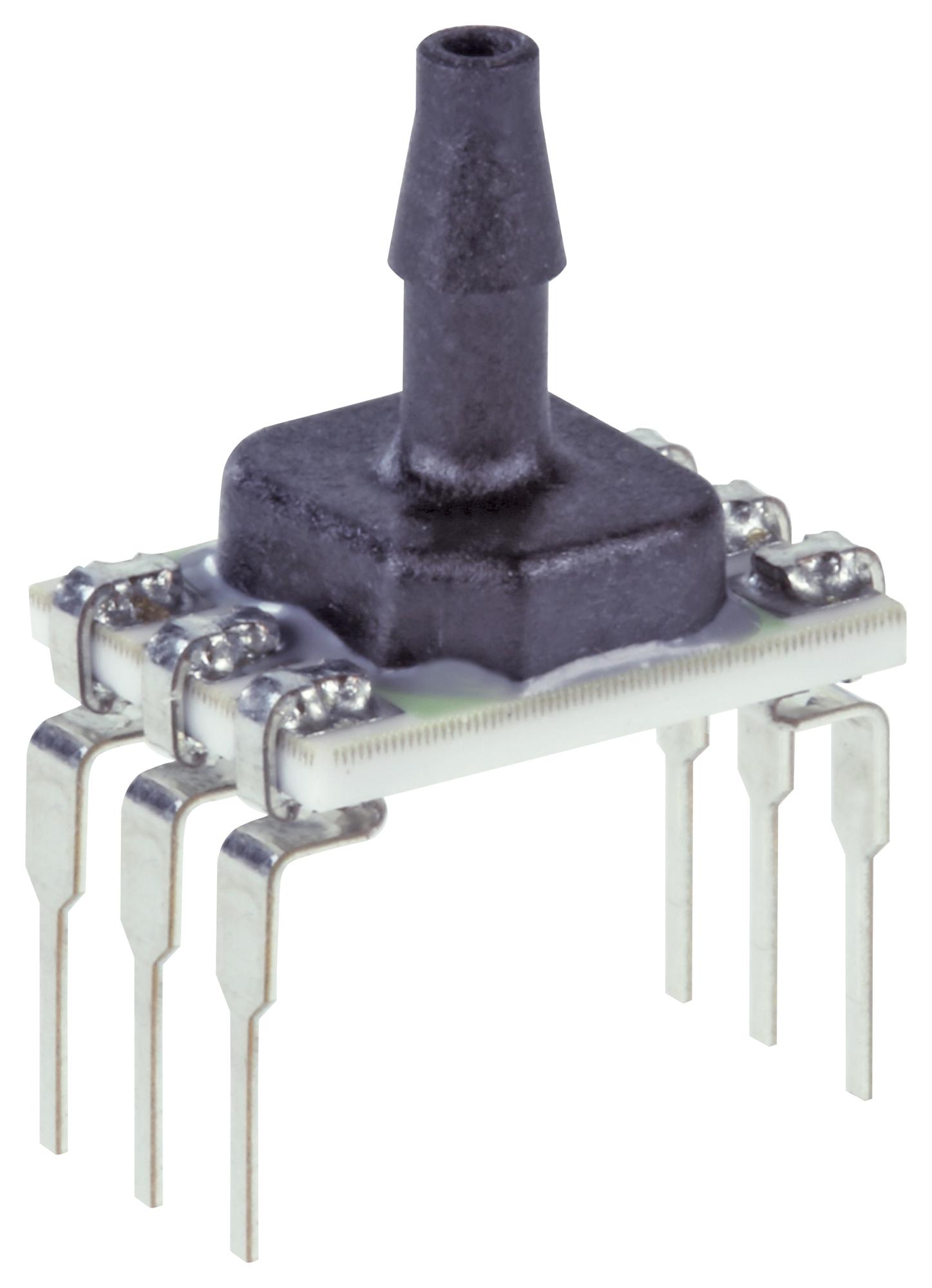

Honeywell ABPDANT015PGAA5 Silicon Pressure Sensor
The ABPDANT015PGAA5 is a silicon pressure sensor designed to measure gage and differential pressures up to 15 psi with high accuracy and stability. Operates on 5V DC, featuring a single-axial barbed port coated with silicone gel suitable for non-corrosive, dry gases like air. The sensor offers ratio-metric analog output updated at around 1 kHz, fully calibrated, and temperature compensated for minimal error. Honeywell's proprietary technology ensures industry-leading long-term performance with a total error band of ±1.5%. Ideal for sensing, instrumentation, industrial, medical, HVAC, and commercial applications requiring reliable, precise pressure measurement.
Honeywell ABPDANT015PGAA5 Silicon Pressure Sensor Specifications:
- Pressure Range: 0 to 15 psi (0 to 103.4 kPa)
- Supply Voltage: 5 V DC
- Output: Ratio-metric analog, updated at approximately 1 kHz
- Accuracy: ±0.03% of full scale at 25°C
- Total Error Band: ±1.5% of full scale
- Operating Temperature Range: 0°C to 50°C
- Pressure Port: Single axial barbed port with silicone gel coating
- Material: Silicone gel coating, high temperature polyamide ports, alumina ceramic substrate
- Thermal Compensation: Fully calibrated and compensated for temperature effects
- Long-term Stability: Industry-leading stability over extensive pressure cycles
- Design: Fully calibrated, temperature compensated, suitable for non-corrosive dry gases including air
- Application Sectors: Sensing and instrumentation, medical, industrial, HVAC, commercial
- Features: Energy-efficient, no diagnostics, no sleep mode, no temperature output
Buy the Buy Honeywell ABP Series Pressure Sensor Part Number ABPDANT015PGAA5 Online
Purchase the Honeywell ABP Series silicon pressure sensor ABPDANT015PGAA5 online today. This high-accuracy device measures pressures up to 15 psi with a fully calibrated and temperature-compensated analog output, ideal for medical, industrial, HVAC, and sensing applications. Operating on 5V DC, it features a durable silicone gel coating suitable for dry, non-corrosive gases like air. With industry-leading stability, a total error band of ±1.5%, and a compact design, this sensor guarantees reliable, long-term performance in critical measurement environments. Buy now for precision and durability.
Get Honeywell ABP Series pressure sensor ABPDANT015PGAA5 today—built for precision and long-lasting durability in industrial, medical, and HVAC applications.
Frequently Asked Questions
Where can I buy Honeywell ABPDANT015PGAA5?
You can click on the BUY or RFQ button to purchase ABPDANT015PGAA5 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part ABPDANT015PGAA5?
You can download the ABPDANT015PGAA5 datasheet or visit the Honeywell website for support.
Who is the manufacturer of ABPDANT015PGAA5?
Honeywell
