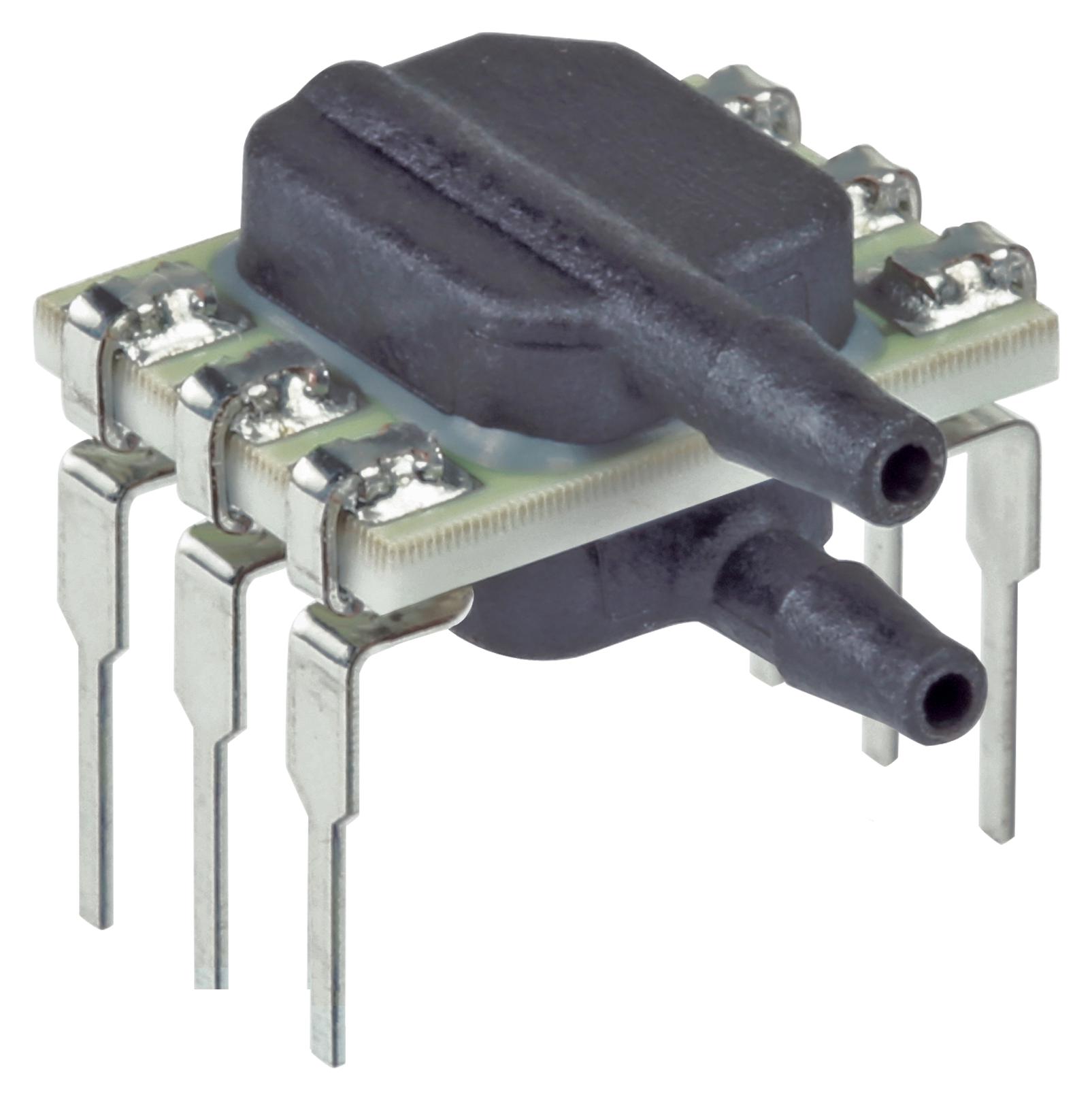

Honeywell ABPDRRV600MGAA5 Pressure Sensor
The ABP Series are high-accuracy, compact board mount pressure sensors compatible with liquid and dry gases. They feature calibrated, temperature-compensated piezoresistive silicon sensing with analog or I2C digital outputs, suitable for medical, industrial, and IoT applications. These sensors offer wide pressure ranges from 60 mbar to 10 bar, industry-leading stability, low power consumption with sleep mode, and multiple package options including SMT and DIP. Their robust design ensures long-term reliability and versatility in both differential and gage pressure measurements, ideal for demanding environments.
Honeywell ABPDRRV600MGAA5 Pressure Sensor Specifications:
- Measurement Range: 60 mbar to 10 bar, 6 kPa to 1 MPa, 1 psi to 150 psi
- Output: Ratiometric analog or I2C/SPI-compatible 12-bit digital
- Calibration: Temperature compensated with on-board ASIC
- Operating Voltage: 3.3 Vdc or 5 Vdc, wide supply range for design flexibility
- Power Consumption: Typical 2 μA in sleep mode, standard operation 21-46 mA
- Accuracy: Total Error Band ±1.5% FS, Long-term stability ±0.25% FS
- Operating Temperature: -40°C to 85°C, compensated range 0°C to 50°C
- Environmental: Meets IEC J-STD-020D.1 waterproofing, REACH and RoHS compliance
- Physical Dimensions: As small as 8 mm x 7 mm for SMT packages, various port options including barbed and axial ports
- Durability: Over 1 million pressure cycles, high burst pressures, suitable for harsh conditions
- Liquid Media Option: Includes silicone gel coating for non-corrosive liquids; dry gases are compatible with high temperatures and corrosion-resistant materials
Buy the Honeywell ABP600MG – Reliable Pressure Sensors for Industrial Applications
Experience the precision and reliability of the Honeywell ABP Series pressure sensor, available online. Perfect for medical, industrial, and IoT solutions, these sensors deliver wide pressure ranges, industry-leading stability, and flexible digital or analog outputs. Compact and durable, they ensure long-term performance in demanding environments. With multiple packaging options and low power consumption, they are ideal for embedded systems and portable devices. Purchase your Honeywell ABP600MG pressure sensor now to ensure accurate, dependable pressure measurement in your next project.
Order your Honeywell ABP Series ABP600MG high-accuracy pressure sensor today and enhance your industrial or IoT systems with dependable pressure measurement.
Frequently Asked Questions
Where can I buy Honeywell ABPDRRV600MGAA5?
You can click on the BUY or RFQ button to purchase ABPDRRV600MGAA5 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part ABPDRRV600MGAA5?
You can download the ABPDRRV600MGAA5 datasheet or visit the Honeywell website for support.
Who is the manufacturer of ABPDRRV600MGAA5?
Honeywell
