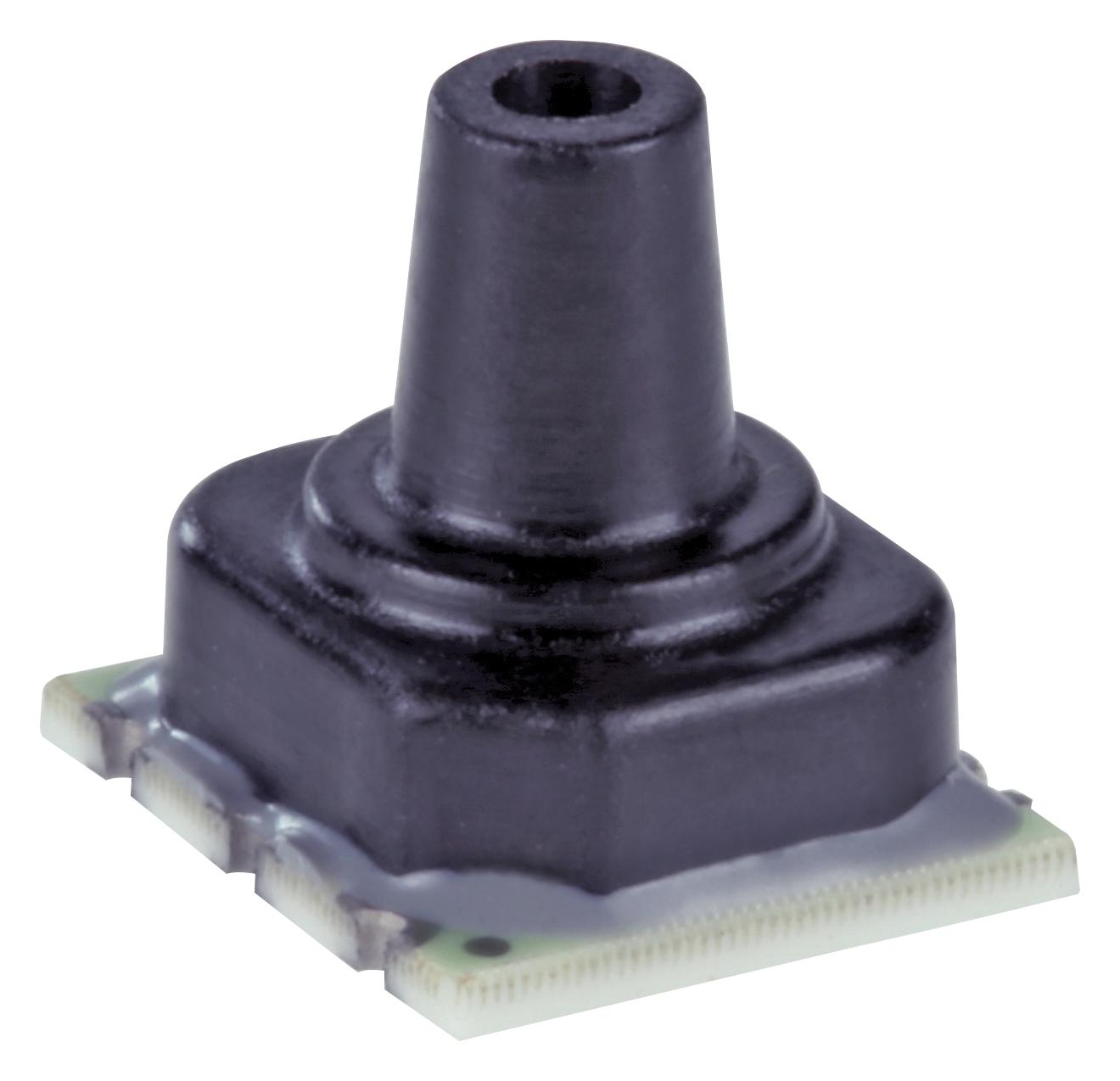

Honeywell ABPLLNT010BGAA5 Pressure Sensor
The ABP Series high-accuracy, board-mounted pressure sensors from Honeywell feature digital or analog outputs and are fully calibrated with temperature compensation for optimal performance. Designed for measuring gage and differential pressures from 60 mbar to 10 bar, these sensors are suitable for medical, industrial, and HVAC applications. They are compatible with dry gases, with optional silicone gel coating for condensation protection. The sensors offer industry-leading stability, accuracy, and flexibility, with a small size as compact as 8 mm x 7 mm, making them ideal for space-constrained environments.
Honeywell ABPLLNT010BGAA5 Pressure Sensor Specifications:
- Pressure Range: 60 mbar to 10 bar, 6 kPa to 1 MPa, 1 psi to 150 psi
- Output: Ratiometric analog; I²C or SPI-compatible 14-bit digital output
- Power Supply: 3.3 Vdc or 5.0 Vdc
- Temperature Range: 0°C to 50°C
- Overpressure: Up to 10-15 times the maximum operating pressure
- Burst Pressure: Safety limit beyond which damage may occur
- Material: Alumina ceramic, high-temperature polyamide port, gold, glass, solder
- Response Time: Approx. 3-5 ms
- Accuracy: ±0.25% FS (Full Scale)
- Long-term Stability: +0.25% FSS
- Life Cycles: Minimum 1 million pressure cycles
- Dimensions: As small as 8 mm x 7 mm
- Optional features: Silicone gel coating, internal diagnostics, temperature output
Buy the Buy Honeywell ABP Series Pressure Sensors Part Number ABPLLNT010BGAA5 Online
Order the Honeywell ABP Series pressure sensor online today to ensure precise pressure measurement in your medical, industrial, or HVAC applications. With industry-leading accuracy, long-term stability, and a compact size, this sensor is ideal for space-constrained environments. Its fully calibrated and temperature compensated design delivers reliable readings across a wide pressure range from 60 mbar to 10 bar. Benefit from fast response times, optional silicone gel coating for condensation resistance, and industry standard communication interfaces like I²C and SPI. Purchase now for efficient and reliable pressure monitoring solutions.
Get Honeywell ABP Series pressure sensor today—compact, high accuracy, and suitable for medical and industrial use.
Frequently Asked Questions
Where can I buy Honeywell ABPLLNT010BGAA5?
You can click on the BUY or RFQ button to purchase ABPLLNT010BGAA5 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part ABPLLNT010BGAA5?
You can download the ABPLLNT010BGAA5 datasheet or visit the Honeywell website for support.
Who is the manufacturer of ABPLLNT010BGAA5?
Honeywell
