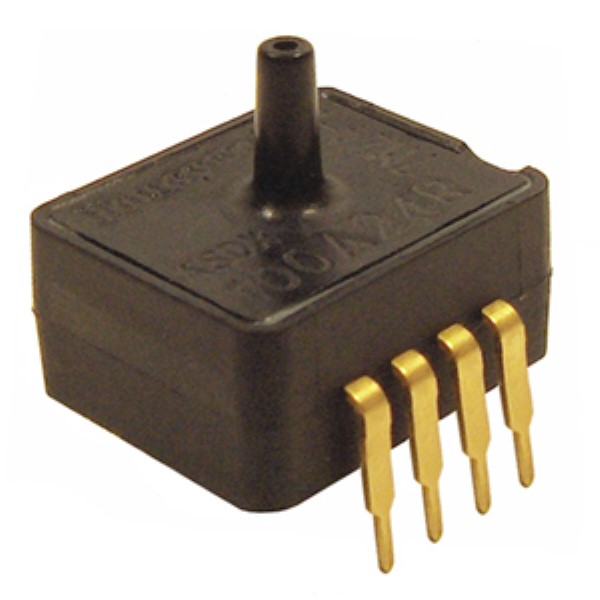

Honeywell ASDXAVX015PGAA3 Silicon Pressure Sensor
The Honeywell ASDX Series Silicon Pressure Sensors provide a ratiometric analog interface for accurate pressure readings across a specified range and temperature. These sensors are fully calibrated and temperature compensated using an on-board ASIC, ensuring consistent performance. They are designed for use with noncorrosive, non-ionic working fluids like air and dry gases and are suitable for applications such as flow calibrators, ventilation monitoring, gas flow instrumentation, and pneumatic controls. The ASDX Series offers absolute, differential, and gage pressure measurement options, catering to diverse industrial needs.
Honeywell ASDXAVX015PGAA3 Silicon Pressure Sensor Specifications:
- Supply voltage (Vsupply) Min: -0.3
- Supply voltage (Vsupply) Max: 6.0
- Voltage to any pin: -0.3
- Voltage to any pin Max: Vsupply+ 0.3
- ESD susceptibility (human body model): 3
- Storage temperature Min: -50
- Storage temperature Max: 125
- Lead temperature (2 s to 4 s): 250
- Supply voltage (3.3 Vdc) Min: 3.0
- Supply voltage (3.3 Vdc) Typ: 3.34
- Supply voltage (3.3 Vdc) Max: 3.6
- Supply voltage (5.0 Vdc) Min: 4.75
- Supply voltage (5.0 Vdc) Typ: 5.04
- Supply voltage (5.0 Vdc) Max: 5.25
- Supply current: 1.5
- Supply current Max: 3.5
- Compensated temperature range Min: 0
- Compensated temperature range Max: 85
- Operating temperature range Min: -20
- Operating temperature range Max: 105
- Overpressure: 2Xoperating pressurerangeminimum
- Burst pressure: 3Xoperating pressurerangeminimum
- Startup time (powerup to dataready): 5
- Response time: 1.0
- Upperoutput clippinglimit: 97.5
- Loweroutput clippinglimit: 2.5
- Minimum loadresistance: 5.0
- Totalerrorband: 2.0
- Output resolution: 12
- Humidity: 0% to 95%RH non-condensing
- Vibration: 10 G at20Hzto2000Hz
- Shock: 100 Gfor 11 ms
- Life: 1 million cycles minimum
- Wetted Materials Port 1: glass-filledPBT
- Wetted Materials Port 2: glass-filledPBT
- Wetted Materials Adhesives: silicone
- Wetted Materials Electronic components: silicon andglass
