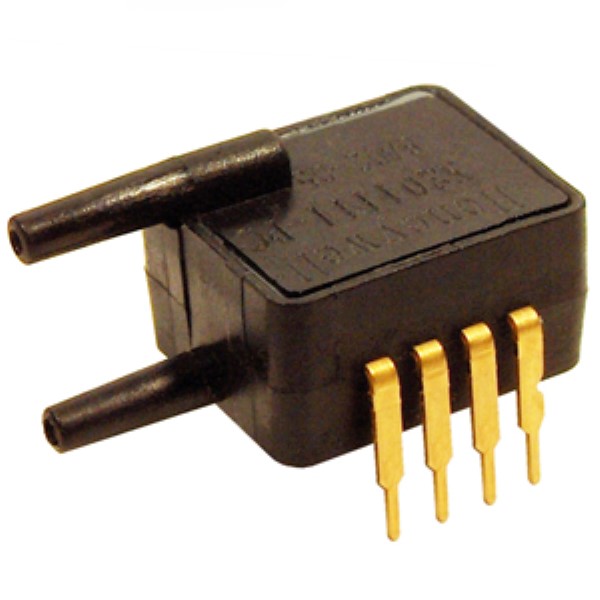

Honeywell ASDXRRX001PDAA5 Silicon Pressure Sensor
The Honeywell ASDX Series Silicon Pressure Sensors provide a ratiometric analog interface for accurate pressure readings across a specified range and temperature. These sensors are fully calibrated and temperature compensated using an on-board ASIC, ensuring consistent performance. They are suitable for applications such as flow calibrators, ventilation monitoring, and pneumatic controls, and are designed for use with noncorrosive, non-ionic working fluids. The ASDX Series offers absolute, differential, and gage pressure measurement options, catering to diverse industrial needs.
Honeywell ASDXRRX001PDAA5 Silicon Pressure Sensor Specifications:
- Supply voltage (Vsupply) Min: -0.3
- Supply voltage (Vsupply) Max: 6.0
- Voltage to any pin: -0.3
- Voltage to any pin Max: Vsupply+ 0.3
- ESD susceptibility (human body model): 3
- Storage temperature Min: -50
- Storage temperature Max: 125
- Lead temperature (2 s to 4 s): 250
- Supply voltage (3.3 Vdc) Min: 3.0
- Supply voltage (3.3 Vdc) Typ: 3.34
- Supply voltage (3.3 Vdc) Max: 3.6
- Supply voltage (5.0 Vdc) Min: 4.75
- Supply voltage (5.0 Vdc) Typ: 5.04
- Supply voltage (5.0 Vdc) Max: 5.25
- Supply current: 1.5
- Supply current Max: 3.5
- Compensated temperature range Min: 0
- Compensated temperature range Max: 85
- Operating temperature range Min: -20
- Operating temperature range Max: 105
- Overpressure: 2Xoperating pressurerangeminimum
- Burst pressure: 3Xoperating pressurerangeminimum
- Startup time (powerup to dataready): 5
- Response time: 1.0
- Upper output clipping limit: 97.5
- Lower output clipping limit: 2.5
- Minimum load resistance: 5.0
- Total error band: 2.0
- Output resolution: 12
- Humidity: 0 to 95%RH non-condensing
- Vibration: 10 G at 20Hz to 2000Hz
- Shock: 100 G for 11 ms
- Life: 1 million cycles minimum
- Wetted Materials - Port 1: glass-filledPBT
- Wetted Materials - Port 2: silicone and epoxy
- Wetted Materials - Electronic components: silicon, glass, and gold
