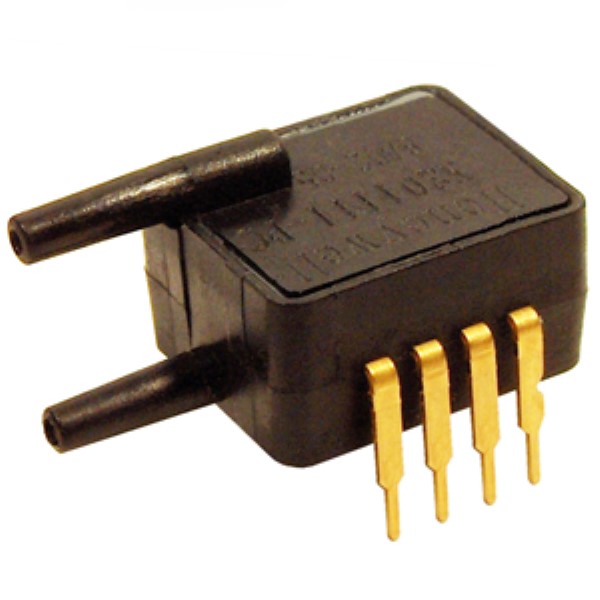

Honeywell ASDXRRX015PDAA5 Silicon Pressure Sensor
The Honeywell ASDX Series Silicon Pressure Sensors provide a ratiometric analog interface for accurate pressure readings across a specified range and temperature. These sensors are fully calibrated and temperature compensated using an on-board ASIC, ensuring consistent and reliable performance. They are suitable for applications such as flow calibrators, ventilation monitoring, gas flow instrumentation, and pneumatic controls, and are designed for use with noncorrosive, non-ionic working fluids. The ASDX Series offers various configurations including absolute, differential, and gage pressures, catering to diverse industrial needs.
Honeywell ASDXRRX015PDAA5 Silicon Pressure Sensor Specifications:
- Supply voltage (Vsupply) Min: -0.3
- Supply voltage (Vsupply) Max: 6.0
- Voltage to any pin: -0.3
- Voltage to any pin Max: Vsupply+ 0.3
- ESD susceptibility (human body model): 3
- Storage temperature Min: -50
- Storage temperature Max: 125
- Lead temperature (2 s to 4 s): 250
- Supply voltage (3.3 Vdc) Min: 3.0
- Supply voltage (3.3 Vdc) Typ: 3.34
- Supply voltage (3.3 Vdc) Max: 3.6
- Supply voltage (5.0 Vdc) Min: 4.75
- Supply voltage (5.0 Vdc) Typ: 5.04
- Supply voltage (5.0 Vdc) Max: 5.25
- Supply current: 1.5
- Supply current Max: 3.5
- Compensated temperature range Min: 0
- Compensated temperature range Max: 85
- Operating temperature range Min: -20
- Operating temperature range Max: 105
- Overpressure: 2Xoperating pressurerangeminimum
- Burst pressure: 3Xoperating pressurerangeminimum
- Startup time (powerup to dataready): 5
- Response time: 1.0
- Upper output clipping limit: Vsupply
- Lower output clipping limit: 2.5
- Minimum load resistance: 5.0
- Total error band: 2.0
- Output resolution: 12
- Humidity: 0% to 95%RH non-condensing
- Vibration: 10 G at20Hzto2000Hz
- Shock: 100 Gfor 11 ms
- Life: 1 million cycles minimum
- Wetted Materials - Port 1 (Pressure Port): glass-filledPBT
- Wetted Materials - Port 2 (Reference Port): glass-filledPBT
- Wetted Materials - Adhesives: silicone
- Wetted Materials - Electronic components: silicon and glass
