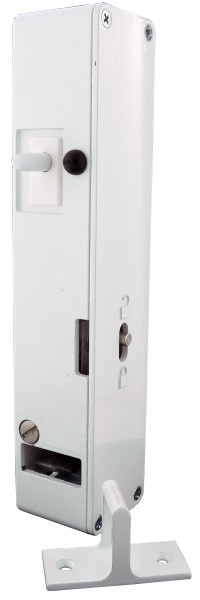

Honeywell CDIRBP1W Commercial Door Interlock Switch
The Honeywell Relialign CDI Series commercial door interlock is a robust electromechanical device designed for swing and hinge door applications. Unlike traditional designs, it incorporates a mechanical lock feature, ensuring the door remains secure even during power outages. This interlock is certified to ASME and UL codes, offering enhanced safety and reliability. The unique solenoid circuit design minimizes host controller complexity and extends solenoid lifespan. It's ideal for elevators, platform lifts, and stairway chairlifts, providing a secure and dependable solution for commercial door control.
Honeywell CDIRBP1W Commercial Door Interlock Switch Specifications:
- Product Type: Relialign Electromechanical Door Interlock
- Mounting: Vertical mounting required
- Override Option: Mechanical override standard
- Certifications: ANSI/ASME, cULus
- Housing Material: Die-cast metal with epoxy coating
- Key Material: Stainless steel
- Key Override Force: Exceeds 675 lbs
- Door Indication: Two independent switches
- Wiring: Factory wired for parallel or series
- Supply Voltage: 24 Vac or 24 Vdc
- Supply Current: 0.35 A max (AC), 0.2 A max (DC)
- Internal Switches: MICRO SWITCH snap action
- Electrical Connection: Terminal strip or RJ-45
- Electrical Life: 1,000,000 cycles
- Operating Temperature: 4 ⁰C to 38 ⁰C
- Storage Temperature: -40 ⁰C to 60 ⁰C
Buy the CDIRBP1W HONEYWELL Commercial Door Interlock Switch | myMectronic
Purchase the Honeywell CDIRBP1W Commercial Door Interlock Switch securely and efficiently for your commercial door control needs.
Buy Now
Frequently Asked Questions
Where can I buy Honeywell CDIRBP1W?
You can click on the BUY or RFQ button to purchase CDIRBP1W from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part CDIRBP1W?
You can download the CDIRBP1W datasheet or visit the Honeywell website for support.
Who is the manufacturer of CDIRBP1W?
Honeywell
