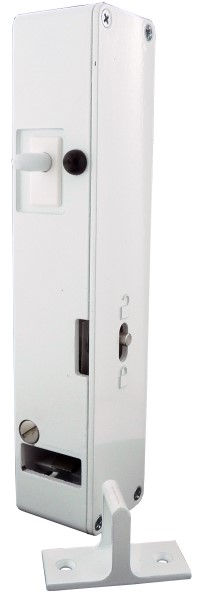

Honeywell CDIRBS1W Commercial Door Interlock Switch
The Honeywell Relialign CDI Series commercial door interlock provides a robust and reliable solution for swing/hinge door applications. Unlike solenoid lock designs, this interlock utilizes a mechanical lock (power-to-unlock) to prevent accidental door opening during power outages. The design incorporates integral switches to optimize solenoid operation, potentially reducing controller complexity and extending solenoid lifespan. Certified to ASME, UL, and CSA standards, the CDI Series offers enhanced durability with a die-cast metal housing and a key-to-cam engagement design to minimize nuisance stops. Available with terminal strip or RJ-45 Cat 5 termination, it's suitable for a variety of commercial installations including elevators, platform lifts, and material lifts.
Honeywell CDIRBS1W Commercial Door Interlock Switch Specifications:
- Product Type: Relialign Electromechanical Door Interlock
- Mounting: Vertical mounting required
- Override Option: Mechanical override standard
- Certifications: ANSI/ASME, cULus, UL 104, CAN/CSA B44
- Housing Material: Die-cast metal with epoxy coating
- Key Material: Stainless steel
- Key Override Force: Exceeds 675 lbs
- Door Indication: Two independent switches
- Wiring: Factory wired for parallel or series
- Supply Voltage: 24 Vac or 24 Vdc
- Supply Current: 0.35 A (AC) / 0.2 A (DC)
- Internal Switches: MICRO SWITCH snap action
- Electrical Connection: Terminal strip or RJ-45 Cat 5
- Electrical Life: 1,000,000 cycles
- Operating Temperature: 4 ⁰C to 38 ⁰C
- Storage Temperature: -40 ⁰C to 60 ⁰C
