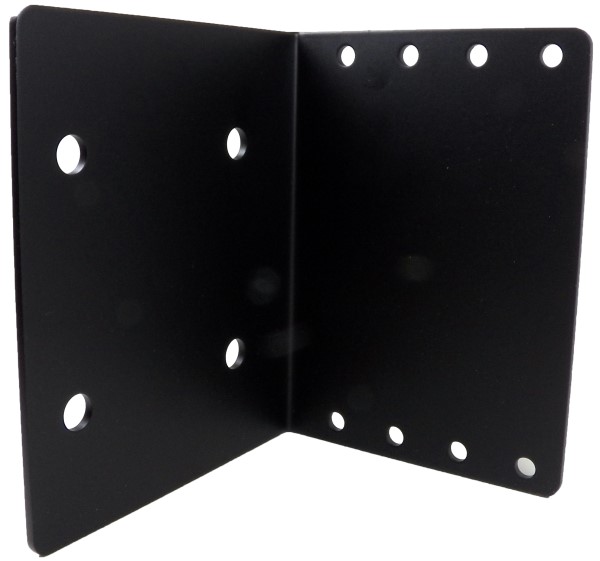

Honeywell CPSBRACKET Cable Pull Safety Switch
Honeywell’s MICRO SWITCH™ CPS Series Cable-Pull Safety Switches offer a cost-effective solution for emergency stop signaling, providing a readily accessible signal compared to multiple push-buttons. The switches feature a unique internal mechanism that latches on both slackened and pulled cables, ensuring reliable operation. With direct opening switch contacts and various contact configurations, the CPS Series is suitable for long conveyor systems, automated systems, and perimeter guarding in demanding industrial environments. The switches are designed for easy setup and maintenance, contributing to increased productivity and safety.
Honeywell CPSBRACKET Cable Pull Safety Switch Specifications:
- Description: cable-pull safety switches
- Switching options: 1NO/1NC direct acting, 2NO/2NC direct acting, 1NO/3NC direct acting, 4NC direct acting
- Sealing: IP67, NEMA 1, 4, 12, 13
- Contacts: silver, gold plated over silver
- Conduit/Connectors: 1/2 NPT, PG 13.5, 20 mm, PF 1/2; Brad Harrison 10-pin conductor
- Force to maintain actuation shaft (2CPS): 25 lb
- Actuation shaft operating force (2CPS): 40 lb
- Operating temperature: -40 °C to 80 °C [-40 °F to 176 °F]
- Storage temperature: -40 °C to 85 °C [-40 °F to 185 °F]
- Mechanical endurance: 1 million operations
- Rated thermal current (Ith): 10 A
- Rated impulse withstand (Uimp): 2500 V
- Rated insulation voltage (Ui): 300 V
- Useable gold-plated current: 1 mA to 50 mA, 60 Vdc max./125 Vdc max.
- Pollution degree: 3
- Conditional short circuit current: 1000 A
- Short circuit protective device: Class J fuse (10 A/600 V)
- Shock: 15 g per IEC 68-2-27
- Vibration: 10 Hz to 500 Hz, 5 g per IEC 68-2-6
- Approvals: UL, CSA, CE, SIL
- Standards: UL Listed, CSA Certified, CE mark, SIL3 (HFT:1), IEC 61508-2: 2010
Buy the CPS-BRACKET HONEYWELL Cable Pull Safety Switch | myMectronic
Purchase the Honeywell CPS-BRACKET Cable Pull Safety Switch securely and efficiently for your industrial needs.
Buy Now
Frequently Asked Questions
Where can I buy Honeywell CPSBRACKET?
You can click on the BUY or RFQ button to purchase CPSBRACKET from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part CPSBRACKET?
You can download the CPSBRACKET datasheet or visit the Honeywell website for support.
Who is the manufacturer of CPSBRACKET?
Honeywell
