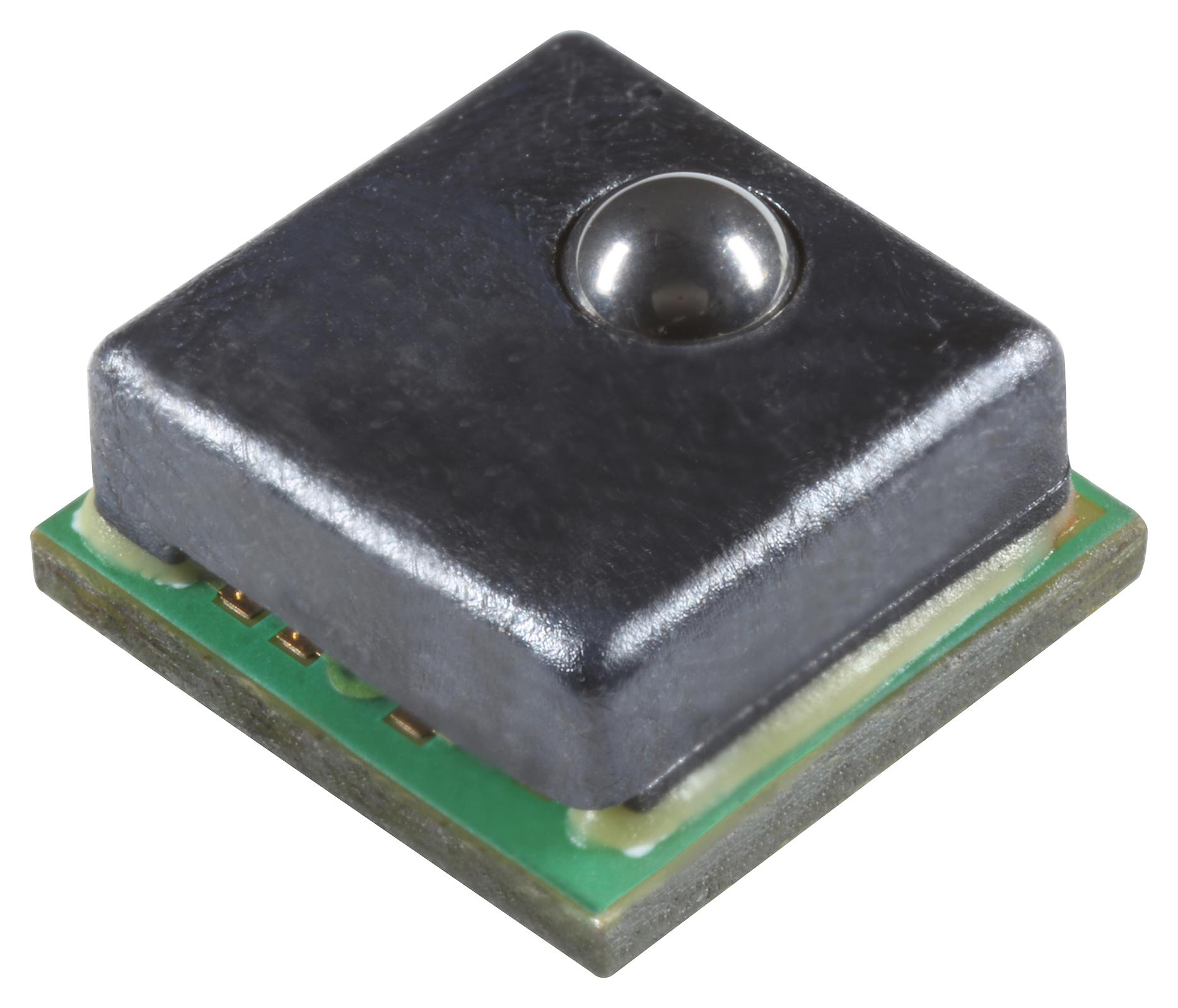

Honeywell FMAMSDXX015WC2C3 force sensor
The FMA series are piezoresistive force sensors that provide a digital output for measuring force across a specified full scale range and temperature spectrum. They are fully calibrated and temperature compensated for sensor offset, sensitivity, and nonlinearity through an onboard ASIC. The sensors feature direct mechanical coupling with a sphere contact element, allowing easy interface with tubing, membranes, or plungers. Designed and manufactured according to ISO 9001 standards, these sensors deliver stable, repeatable performance proportional to the applied force. They are ideal for use in medical and industrial applications. Key features include a compensated and amplified sphere contact element, diagnostic capabilities for short and open circuits, a 15N force range, and a compression force type output via I2C with address 0x28. Operating over 5°C to 50°C (41°F to 122°F) with a supply voltage of 3.3V ±10%, they have a small form factor of 5mm x 5mm and low power consumption of 14mW, ensuring enhanced reliability and durability even under over-force conditions.
Honeywell FMAMSDXX015WC2C3 force sensor Specifications:
- Force range: 15 N
- Output type: I2C, address 0x28
- Supply voltage: 3.3V ±10%
- Power consumption: 14 mW
- Temperature compensation: 5°C to 50°C (41°F to 122°F)
- Operating temperature: -40°C to 85°C (-40°F to 185°F)
- Full scale span accuracy: ±2 %FSS
- Total Error Band: ±8 %FSS at 5.0 V
- Response time: 0.42–0.84 ms
- Form Factor: 5mm x 5mm
- Overforce limit: 3X force range
- Materials: Sphere contact element stainless steel 440C
- Diagnostic functions available for internal path faults
- Compliance: REACH and RoHS
- Shock resistance: MIL-STD-202, Method 213, Condition A
- Vibration resistance: MIL-STD-202, Method 214, Condition 1F
- Life cycle: Minimum 1 million force cycles
Buy the Honeywell FM015WC2C3 – Reliable Force Sensor for Industrial Applications
Discover the Honeywell FM015WC2C3 force sensor, engineered for accurate force measurement in medical and industrial settings. Its compact 5mm x 5mm size, low power consumption of 14mW, and digital I2C output ensure seamless integration with microcontrollers and systems. Fully calibrated and temperature compensated, this sensor provides stable, reliable readings over a wide temperature range from -40°C to 85°C. Its diagnostic functions help verify operational integrity, making it ideal for applications requiring precise force sensing, durability, and diagnostic capabilities. Place your order online today for fast, reliable delivery.
Get Honeywell FM015WC2C3 today—built for precision and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy Honeywell FMAMSDXX015WC2C3?
You can click on the BUY or RFQ button to purchase FMAMSDXX015WC2C3 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part FMAMSDXX015WC2C3?
You can download the FMAMSDXX015WC2C3 datasheet or visit the Honeywell website for support.
Who is the manufacturer of FMAMSDXX015WC2C3?
Honeywell
