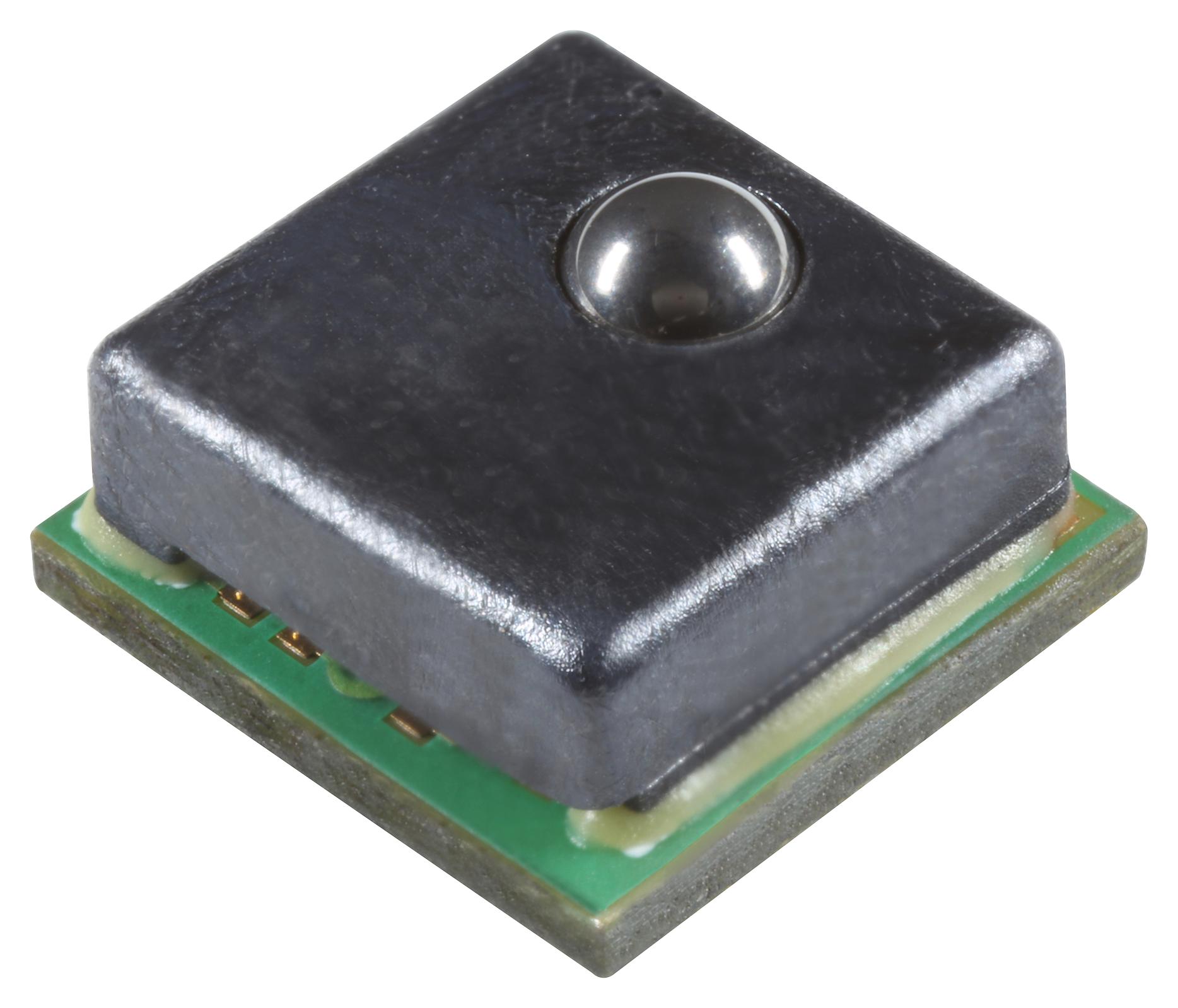

Honeywell FMAMSDXX025WC2C3 Force Sensor
The FMA series are piezoresistive force sensors that provide a digital output for measuring force across a specified full-scale range within a defined temperature range. They are fully calibrated and temperature compensated for sensor offset, sensitivity, and nonlinearity using an onboard ASIC. These sensors feature a mechanically coupled, sphere contact element that allows for easy interfacing with tubing, membranes, or plungers, ensuring repeatable and reliable performance. Designed and manufactured according to ISO 9001 standards, they offer stable outputs proportional to the applied force. The sensors are typically used in medical and industrial applications, and they include diagnostic features for short and open circuits. They operate with a 25N force range, utilize an I2C interface with address 0x28, and are powered at 3.3V ±10%. Their small form factor measures 5mm x 5mm, with a temperature compensation range of 5°C to 50°C, low power consumption of 14mW, and enhanced durability for applications involving over-force conditions.
Honeywell FMAMSDXX025WC2C3 Force Sensor Specifications:
- Force Range: 25 N
- Force Type: Compression
- Interface: I2C (Address 0x28)
- Supply Voltage: 3.3 V ±10%
- Power Consumption: 14 mW
- Accuracy: ±2% FSS
- Total Error Band: ±8% FSS
- Operating Temperature: 5°C to 50°C
- Temperature Compensation Range: 5°C to 50°C
- Dimensions: 5 mm x 5 mm
- Overforce Limit: 3X force range
- Response Time: 0.42 to 0.84 ms
- Materials: Stainless steel sphere, liquid crystal polymer cover
- Environmental: Humidity 0% to 95% RH, non-condensing
- Shock & Vibration: MIL-STD-202 compliant
- Life Cycle: 1 million force cycles minimum
- Diagnostics: Short/Open circuit detection
- Compliance: RoHS and REACH
Buy the Buy Honeywell FMA Series Force Sensor Part Number FMAMSDXX025WC2C3 Online
Experience reliable, calibrated force measurement with the Honeywell FMA Series 25N force sensor. Featuring compact design, I2C communication, and diagnostic functions, it’s ideal for medical devices, industrial automation, and robotics. Its small 5mm x 5mm footprint and low power consumption make it perfect for space-constrained applications. Fully temperature compensated over 5°C to 50°C, with overforce protection, it ensures durability and precision. Purchase online today for a high-performance sensor that provides stable, repeatable force data essential for critical engineering and medical solutions.
Get Honeywell FMAMSDXX025WC2C3 today—designed for space-efficient, accurate force measurement in industrial and medical applications.
