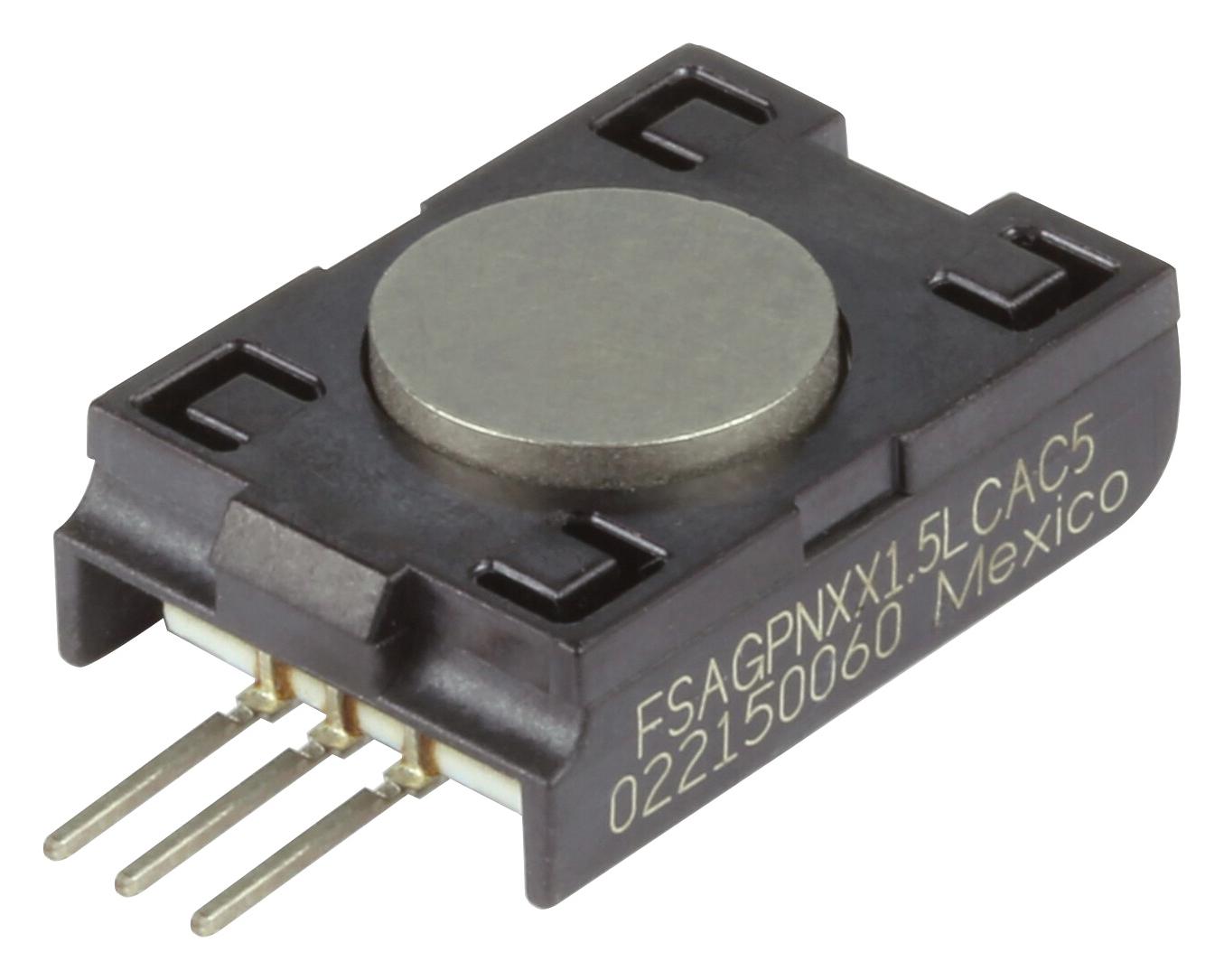

Honeywell FSAGPNXX15LCAC5 Force Sensor
The FSA Series force sensors are highly accurate, temperature-compensated piezoresistive devices offering analog and digital outputs for force measurement. Designed for durability, they feature a fully calibrated and temperature compensated ASIC, a robust stainless steel plunger, and corrosion-resistant housing, making them suitable for medical and industrial applications. Their flexible force ranges from 5N to 25N or 1lb to 5lb, with quick response times and diagnostic functions. These sensors deliver reliable performance in load sensing, infusion pumps, and structural testing, conforming to strict industry standards.
Honeywell FSAGPNXX15LCAC5 Force Sensor Specifications:
- Supply voltage: 3.3 Vdc or 5.0 Vdc with +/-10% tolerance
- Supply current: 13 mW (analog), 20 mW (digital)
- Operating temperature range: 0°C to 70°C (32°F to 158°F)
- Storage temperature: -40°C to 85°C (-40°F to 185°F)
- Response time: 0.42 to 0.84 ms
- Total Error Band: +5% FSS
- Accuracy: 3% FSS
- Force Ranges: 5N, 7.5N, 10N, 15N, 20N, 25N, or corresponding pound/gram/kilogram equivalents
- Overforce limit: 6804 g (15 lb)
- Materials: stainless steel plunger, alumina ceramic substrate, high-temperature polyamide cover
- Vibration: MIL-STD-202, Method 214, Condition 1E
- Shock resistance: MIL-STD-202, Method 213, Condition F
- Life cycle: 1 million full-scale force cycles minimum
- Ingress protection: designed for corrosion resistance, no specific IP rating specified
- Electrical interface: SPI or I²C digital and analog outputs, with diagnostic functions
- Lead soldering temperature: max 220°C for 4 seconds
Buy the Honeywell Series FSA Force Sensor: FSAGPNXX15LCAC5
Purchase the Honeywell FSA Series Force Sensor online today for reliable, calibrated force measurement in medical and industrial environments. These sensors feature digital and analog outputs, wide force ranges, and internal diagnostics to ensure consistent performance. Built with corrosion-resistant materials and precise ASIC compensation, they offer fast response times and long-term stability. Ideal for infusion pumps, load sensing, and structural testing, order now to enhance your application’s accuracy and reliability with Honeywell’s proven sensing technology.
Get Honeywell FSAGPNXX15LCAC5 today—built for precision, durability, and versatile force measurement in demanding applications.
Frequently Asked Questions
Where can I buy Honeywell FSAGPNXX15LCAC5?
You can click on the BUY or RFQ button to purchase FSAGPNXX15LCAC5 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part FSAGPNXX15LCAC5?
You can download the FSAGPNXX15LCAC5 datasheet or visit the Honeywell website for support.
Who is the manufacturer of FSAGPNXX15LCAC5?
Honeywell
