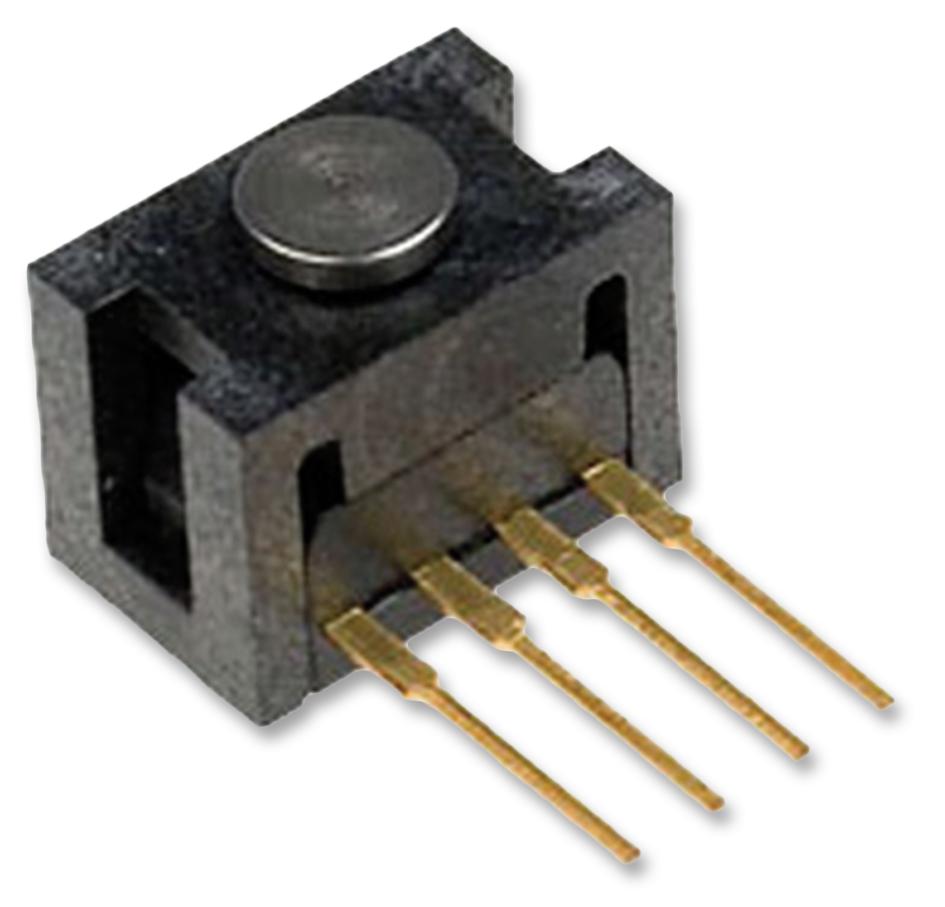

Honeywell FSG005WNPB Force Sensor
The Honeywell FSG Series Force Sensor offers precise, reliable force measurement in a compact, medical-grade or industrial design. It features a specialized piezoresistive silicon sensing element with a Wheatstone bridge circuit, delivering stable mV outputs over ranges of 5 N, 10 N, 15 N, and 20 N. The sensor's low deflection, high accuracy, and low power consumption make it suitable for applications like infusion pumps, robotic end-effectors, load sensing, and tension control. Its robust stainless steel plunger and versatile mounting options ensure mechanical stability and easy integration for various industrial and medical uses.
Honeywell FSG005WNPB Force Sensor Specifications:
- Force sensing range: 5 N, 10 N, 15 N, 20 N
- Excitation voltage: 3.3 V to 12.5 V
- Null offset: -30 to +30 mV
- Span: 310 to 395 mV
- Linearity: ±0.5% span
- Sensitivity: 6.6 to 18 mV/V/N
- Temperature range: -40°C to 85°C
- Shock resistance: 150 g
- Vibration resistance: 0 Hz to 2 kHz at 20 g
- Overforce capacity: up to three times rated force
- MCTF: 20 million cycles at 25°C
- Storage temperature: -40°C to 100°C
- ESD sensitivity level: 3B
- Pin configuration: Supply +, Output +, Ground, Output -
- Power consumption: <1.2 mA at 6 V
- Material: stainless steel plunger and body
- Dimensions vary based on force range; mounting brackets included
- Physical size: Reference dimensions available in datasheets
Buy the Buy Honeywell Force Sensor Part Number FSG005WNPB Online
Purchase the Honeywell FSG Series Force Sensor online today to ensure precise and reliable force measurement for your industrial or medical projects. This compact force sensor features a specialized piezoresistive silicon sensing element, providing stable millivolt outputs over a range of force capacities up to 20 N. Its robust stainless steel construction guarantees mechanical stability, while low power consumption makes it suitable for battery-powered systems. Easily integrate this sensor into load sensing, robotic end-effectors, infusion pumps, or tension control applications. Order now for dependable performance.
Order your Honeywell Series FSG Force Sensor with 5 N to 20 N range today and enhance your industrial or medical force measurement applications with high accuracy and durability.
