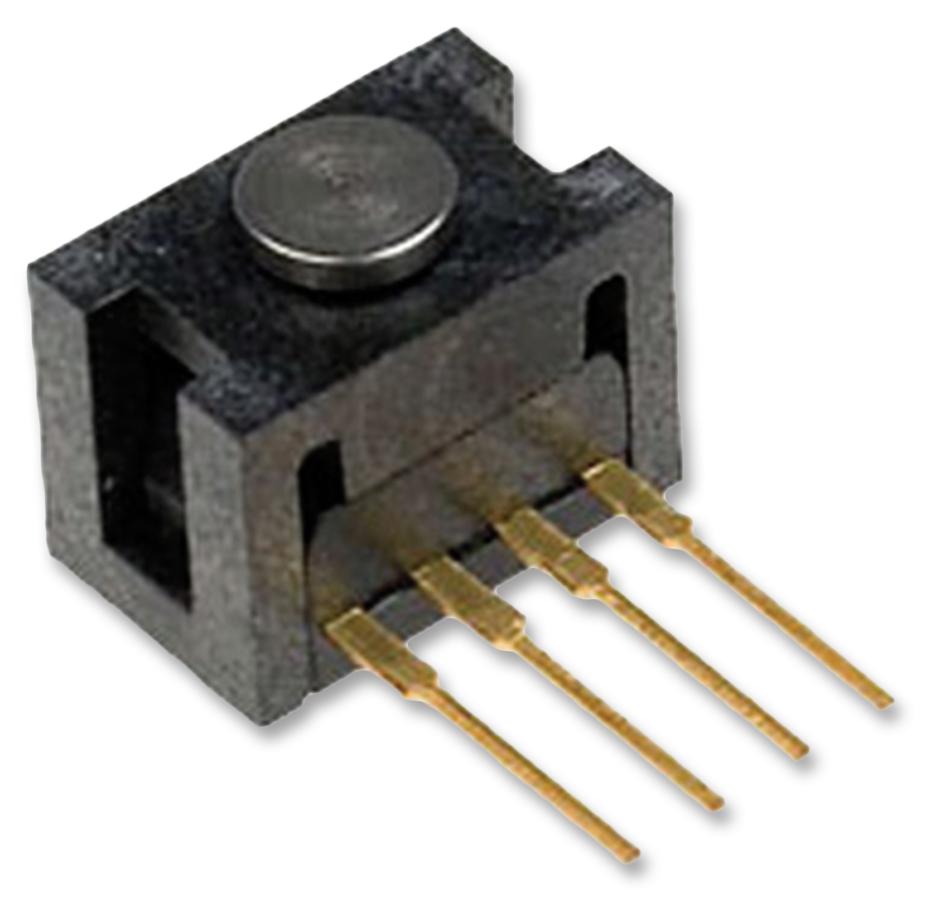

Honeywell FSG010WNPB Force Sensor
The Honeywell FSG Series force sensor accurately measures force ranges from 0 N to 20 N with high stability and low deflection, ideal for medical and industrial applications. Featuring a sensing technology based on piezoresistive micro-machined silicon, it provides stable mV output over the specified force ranges. Its compact design includes a stainless steel plunger for mechanical stability, multiple mounting options, and overforce capacities up to three times rated force, ensuring durability and reliable performance in demanding environments like infusion pumps, load sensing, and robotic end-effectors.
Honeywell FSG010WNPB Force Sensor Specifications:
- Force sensing range: 0 N to 20 N
- Excitation voltage: 3.3 V to 12.5 V DC, max 6 V DC supply
- Null offset: -30 mV to +30 mV
- Span: 310 mV to 395 mV
- Linearity: ±0.5% span
- Sensitivity: 2.2 to 7.2 mV/V/N
- Temperature range: -40°C to 85°C
- Storage temperature: -40°C to 100°C
- Shock resistance: 150 g, vibration rated to 0 to 2 kHz at 20 g sine
- MCTF: 20 million cycles at 25°C
- Overforce capacity: up to three times rated force
- Response time: approximately 8 ms
- Connectors: Multi-pin for flexible wiring options
- Compliance: ESD Level 3B, RoHS compliant
- Dimensions: referenced mounting dimensions provided
- Soldering temperature: 315°C for 2.5 seconds
- Max supply current: 1.2 mA
Buy the Honeywell FSG Series – Reliable Force Sensor for Industrial Applications
Purchase the Honeywell FSG Series force sensor online today and ensure precise force measurement in your projects. With a range of 0 to 20 N, low deflection, and versatile mounting options, this sensor guarantees reliable performance in medical devices, load sensing, robotics, and industrial automation. Its compact size and overforce capacity make it ideal for demanding environments. Enjoy fast delivery and technical support when you buy online, and give your systems the dependable force measurement they need to operate efficiently and accurately.
Order your Honeywell Series FSG force sensor today and enhance your measurement accuracy with a durable, compact solution suitable for demanding industrial and medical applications.
Frequently Asked Questions
Where can I buy Honeywell FSG010WNPB?
You can click on the BUY or RFQ button to purchase FSG010WNPB from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part FSG010WNPB?
You can download the FSG010WNPB datasheet or visit the Honeywell website for support.
Who is the manufacturer of FSG010WNPB?
Honeywell
