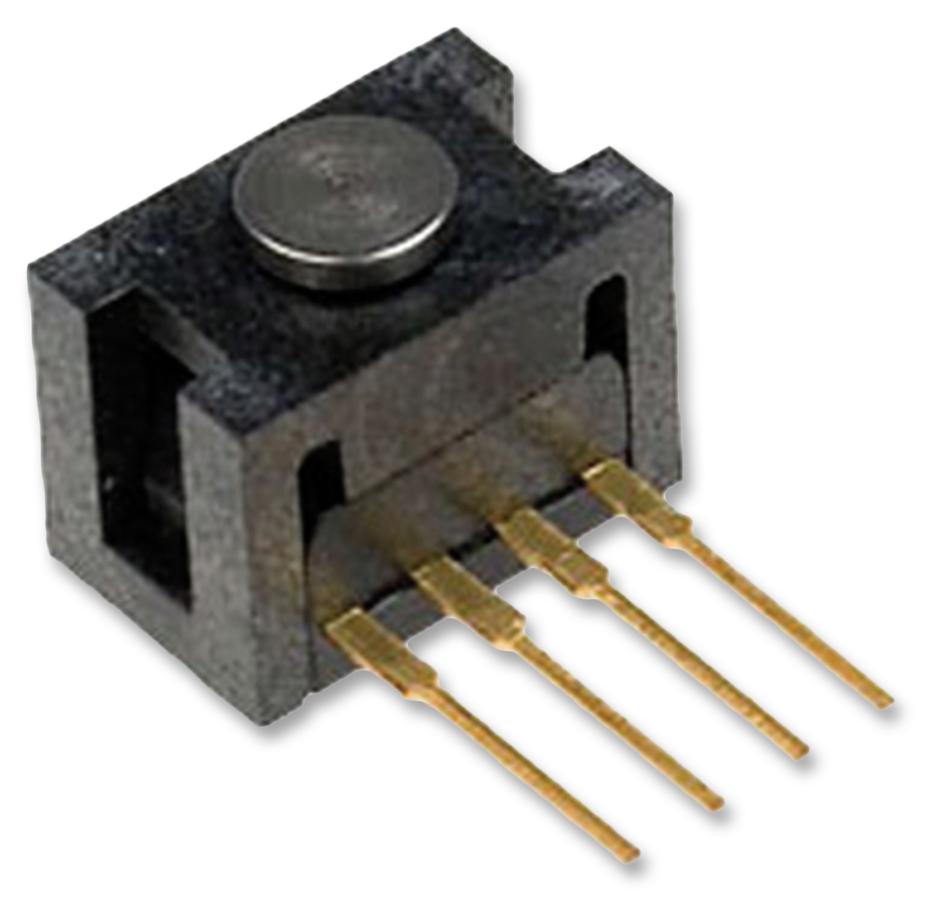

Honeywell FSG020WNPB Force Sensor
The FSG Series Force Sensor offers precise, reliable force measurement in a compact design, utilizing piezoresistive silicon sensing. It features low power consumption, fast response, and high ESD resistance, making it ideal for medical and industrial applications such as infusion pumps, load sensing, and robotic end-effectors. The sensor's robust stainless steel plunger and flexible mounting options ensure mechanical stability and ease of integration across various systems. It operates within a temperature range of -40°C to 85°C and endures shock up to 150 g, ensuring durability and accuracy in demanding environments.
Honeywell FSG020WNPB Force Sensor Specifications:
- Force sensing range: 0 N to 20 N
- Operating temperature: -40°C to 85°C
- Maximum shock: 150 g
- Vibration range: 0 Hz to 2 kHz, 20 g sine
- Storage temperature: -40°C to 100°C
- Solderability: 2.5 s at 315 °C
- ESD sensitivity: Level 3B
- Supply voltage: Max 6 V, typical 5 V
- Output resistance: 4.0 kΩ to 6.0 kΩ
- Response time: 0.08 s (approx.)
- MCTF (Mean Cycles to Failure): 20 million at 25°C
- Dimensions: Mounting bracket compatible, actuator height varies with force range
- Null offset: ±30 mV
- Linearity: ±0.5% span
- Sensitivity: 6.6 to 7.2 mV/V/N
- Overforce capacity: Up to 3× rated force
Buy the Honeywell Series FSG Force Sensor: FSG020WNPB
Discover the Honeywell FSG020WNPB Force Sensor for accurate force measurement in demanding environments. Its piezoresistive silicon technology ensures high precision, low deflection, and excellent reliability. Suitable for medical devices, industrial load sensing, and robotic applications, this sensor offers a robust stainless steel plunger, flexible mounting options, and a wide operating temperature range. With high ESD resistance and a long cycle life, it guarantees performance durability and consistent accuracy, making it a vital component in advanced automation and medical systems.
Buy Honeywell FSG020WNPB force sensor now and experience unmatched reliability and precise force measurement for industrial and medical systems.
Frequently Asked Questions
Where can I buy Honeywell FSG020WNPB?
You can click on the BUY or RFQ button to purchase FSG020WNPB from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part FSG020WNPB?
You can download the FSG020WNPB datasheet or visit the Honeywell website for support.
Who is the manufacturer of FSG020WNPB?
Honeywell
