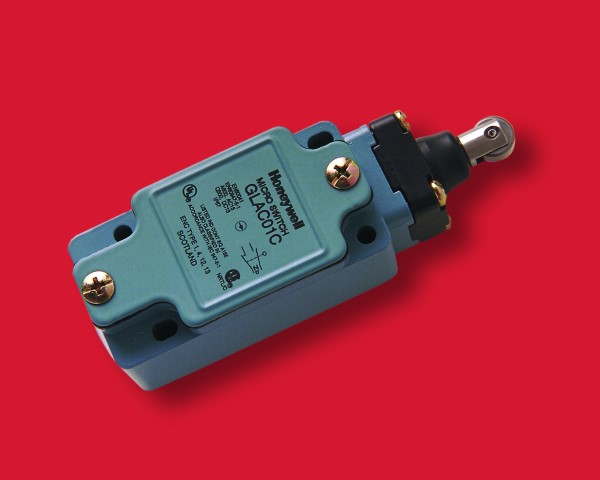

Honeywell GLAC01C Global Limit Switch
Honeywell’s MICRO SWITCH GLA Limit Switch Series is engineered to meet global EN50041 standards, making it suitable for a wide range of worldwide applications. The modular design, featuring interchangeable heads/actuators, bodies, and contact blocks, enables rapid response to diverse customer needs. The robust die-cast metal housing is ideal for indoor and outdoor environments requiring a degree of IP or NEMA enclosure sealing. Available with snap-action and slow-action contacts, the GLA Series offers versatility for various industrial applications, including aerial lifts, automotive assembly lines, and material handling systems. Its certifications and sealing capabilities ensure reliable performance in demanding environments.
Honeywell GLAC01C Global Limit Switch Specifications:
- Certifications: CE, CCC, CSA, UL
- Conforming to standards: IEC/EN 60947-5-1, EN45545-2
- Housing material: Electrostatic epoxy coated zinc
- Actuators: Side rotary, top pin plunger, top adjustable plunger, top roller plunger, wobble stick, cat whisker
- Termination: 0.5-14 NPT, PG 13,5, M20, G 1/2, Deutsch style 4-pin connector, Micro-change connector, Mini-change connector, Pre-cabled
- Contact options: 1NC/1NO, 2NC, 2NO, 2NC/2NO sequential, 2NC/2NO center neutral
- Contact type: Snap action, slow action break-before-make (BBM), slow action make-before-break (MBB)
- Contact material: Silver alloy (standard), gold-plated (low-energy applications)
- Utilization category: ac15, A300/A600; dc13, Q300
- Rated operational voltage (Ue): 240 Vac, 600 Vac, 250 Vdc
- Rated operational current (Ie): 3 A, 1.2 A, 0.27 A
- Thermal current (Ith): 10 A, 2.5 A
- Rated insulation voltage (Ui): 300 V; 600 V
- Rated impulse withstand voltage (Uimp): 2500 V
- Short circuit protective device: Class J fuse, rated 10A, 600 V
- Pollution degree: 3
- Sealing: IP67; NEMA/UL 1, 4, 12, and 13
- Operating temperature: -40 °C to 85 °C
- Mechanical life: Up to 15 million operations
- Vibration: 10 g conforming to IEC 68-2-6
- Shock: 50 g conforming to IEC 68-2-27
- Options: Standard limit switch with 1 LED pilot light, Plug-in limit switch with 1 LED pilot light
