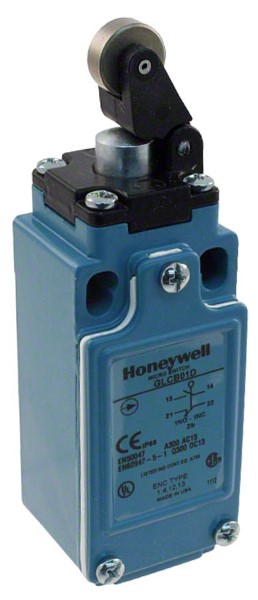

Honeywell GLCB01D Global Miniature Limit Switch
Honeywell's MICRO SWITCH GLS miniature limit switches provide durable and reliable solutions for a variety of global applications, including industrial equipment, agriculture, and transportation. These switches are designed to meet EN50047 standards and offer a compact design suitable for environments where space is limited. A wide range of actuators, contact blocks, and connectivity options are available, and gold-plated contacts are an option for logic-level applications. The modular design allows for rapid customization and delivery.
Honeywell GLCB01D Global Miniature Limit Switch Specifications:
- Housing material (GLC/GLE): Electrostatic epoxy coated zinc
- Housing material (GLD): High-strength glass re-enforced thermoplastic
- Actuators: Side rotary, top pin plunger, top roller plunger, top roller lever, top wobble actuator
- Termination: 0.5-14 NPT, PG 13.5, 20 mm, PF 1/2, Deutsch style 4-pin connector
- Contact options (GLC/GLD): 1NC/1NO, 2NC, 2NO
- Contact options (GLE): 1NC/1NO, 2NC, 2NO, 2NC/2NO
- Contact type: Snap-action, slow-action break-before-make (BBM), slow-action make-before-break (MBB), slow action
- Contact material: Silver (standard), gold plated (low-energy applications)
- Thermal current (Ith): 10 A
- Rated insulation voltage: 300 V
- Rated impulse voltage: 2.5 kV
- Sealing: NEMA 1, 4, 12, 13; IP66
- Operating temperature: -40 °C to 85 °C [-40 °F to 185 °F]
- Mechanical life: Up to 10 million cycles
- Pollution code: 3
- Max. actuation frequency: 250 operations/minute (wobbles: 100 operations/minute)
- Shock: 50 g per IEC 60068-2-27
- Vibration: 10 g per IEC 60068-2-6
- Approvals: CE, UL, CSA and CCC
- Conforming to standards: CE, EN50047, IEC/EN 60947-5-1; CSA C22.2 #14; UL 508; CCC GB14048.5; EN45545-2 (GLC/GLE)
