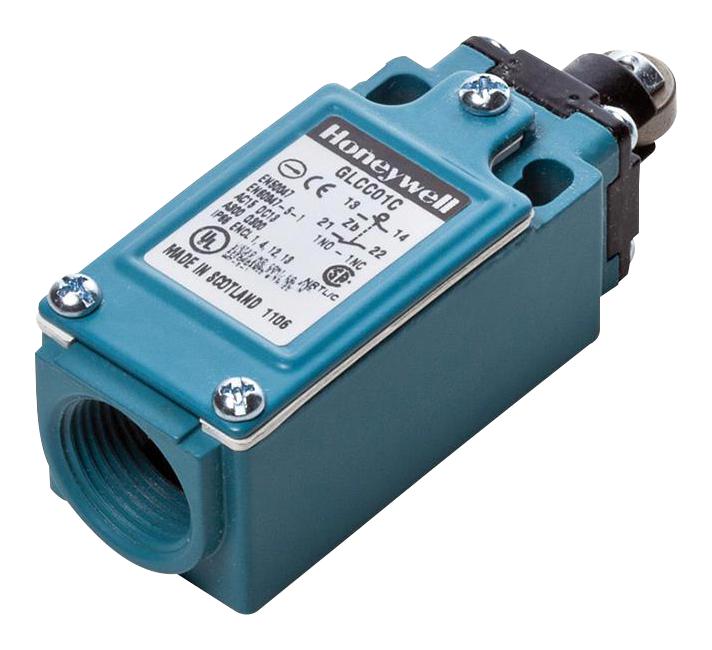

Honeywell GLCC01BD1 Miniature Limit Switch
Honeywell MICRO SWITCH™ GLS miniature limit switch family offers durable, reliable, and environmentally sealed (IP and NEMA) switches suitable for industrial, transportation, and agricultural applications. Featuring compact housing options in metal or plastic, they support various actuators, contact blocks, and connectivity choices, including gold-plated contacts for low energy loads. Certified globally (UL, CE, CSA, CCC), these limit switches conform to EN50047 standards, with models designed for harsh environments, including IP66 sealing, and mechanical life up to 10 million cycles, ensuring excellent performance in demanding conditions.
Honeywell GLCC01BD1 Miniature Limit Switch Specifications:
- Housing material: Electrostatic epoxy coated zinc (GLC, GLE), High-strength glass reinforced thermoplastic (GLD)
- Actuators: Side rotary, top pin plunger, top roller plunger, top roller lever, top wobble actuator
- Termination options: 0.5-14 NPT, PG 13.5, M20, PF 1/2, Deutsch 4-pin connector
- Contact types: Snap-action, slow-action, break-before-make, make-before-break, two-pole double-throw (2NO/2NC)
- Contact materials: Silver (standard), gold plated (low-energy applications)
- Thermal current: 10A, Rated insulation voltage: 300V, Impulse voltage: 2.5 kV
- Sealing: NEMA 1, 4, 12, 13; IP66, NEMA VUL 1, 4, 12, 13
- Operating temperature: -40°C to 85°C (-40°F to 185°F)
- Mechanical life: Up to 10 million cycles
- Shock/vibration: 50g per IEC 60068-2-27, 10g per IEC 60068-2-6
- Certifications: CE, UL, CSA, CCC
- Standards compliance: EN50047, IEC/EN 60947-5-1, UL 508
Buy the Honeywell GLD- Series Reliable Limit Switches for Industrial Applications
Purchase Honeywell GLS miniature limit switches online to ensure reliable performance in demanding industrial, outdoor, and transportation environments. Featuring sealed IP66 and NEMA compliance, these switches support various actuator types such as rotary, plungers, and rollers, with optional gold contacts for low energy loads. Certified globally and designed for harsh conditions, they offer long mechanical life up to 10 million cycles, extensive certifications including UL, CE, CSA, and CCC, making them ideal for critical automation and safety applications. Buy now for quick delivery and dependable operation.
Order your Honeywell Series GLD limit switch today and enhance your equipment with trusted, durable, and environmentally sealed protection.
Frequently Asked Questions
Where can I buy Honeywell GLCC01BD1?
You can click on the BUY or RFQ button to purchase GLCC01BD1 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part GLCC01BD1?
You can download the GLCC01BD1 datasheet or visit the Honeywell website for support.
Who is the manufacturer of GLCC01BD1?
Honeywell
