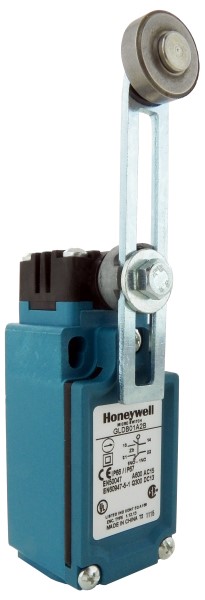

Honeywell GLDB01A2B Global Miniature Limit Switch
Honeywell's MICRO SWITCH GLS miniature limit switches provide robust and versatile solutions for various industrial applications, including passenger elevators, commercial appliances, and material handling systems. Designed to meet EN50047 standards, these switches offer a compact housing ideal for space-constrained environments. Available in metal or plastic housings with a variety of actuators and contact options, they are certified for global use and provide reliable performance in demanding conditions. The modular design allows for rapid customization and delivery, making them a valuable asset for diverse industrial needs.
Honeywell GLDB01A2B Global Miniature Limit Switch Specifications:
- Housing Material (GLC/GLE): Electrostatic epoxy coated zinc
- Housing Material (GLD): High-strength glass re-enforced thermoplastic
- Actuators: Side rotary, top pin plunger, top roller plunger, top roller lever, top wobble actuator
- Termination: 0.5-14 NPT, PG 13.5, 20 mm, PF 1/2, Deutsch style 4-pin connector
- Contact Options (GLC/GLD/GLE): 1NC/1NO, 2NC, 2NO, 2NC/2NO
- Contact Type: Snap-action, slow-action break-before-make (BBM), slow-action make-before-break (MBB)
- Contact Material: Silver (standard), gold plated (low-energy applications)
- Thermal Current (Ith): 10 A
- Rated Insulation Voltage: 300 V
- Rated Impulse Voltage: 2.5 kV
- Sealing: NEMA 1, 4, 12, 13; IP66
- Operating Temperature: -40 °C to 85 °C [-40 °F to 185 °F]
- Mechanical Life: Up to 10 million cycles
- Pollution Code: 3
- Max. Actuation Frequency: 250 operations/minute (wobbles: 100 operations/minute)
- Shock: 50 g per IEC 60068-2-27
- Vibration: 10 g per IEC 60068-2-6
- Approvals: CE, UL, CSA, CCC
- Conforming to Standards: CE, EN50047, IEC/EN 60947-5-1, CSA C22.2 #14, UL 508, CCC GB14048.5, EN45545-2
Buy the GLDB01A2B HONEYWELL Global Miniature Limit Switch | myMectronic
Purchase the Honeywell GLDB01A2B Global Miniature Limit Switch securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy Honeywell GLDB01A2B?
You can click on the BUY or RFQ button to purchase GLDB01A2B from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part GLDB01A2B?
You can download the GLDB01A2B datasheet or visit the Honeywell website for support.
Who is the manufacturer of GLDB01A2B?
Honeywell
