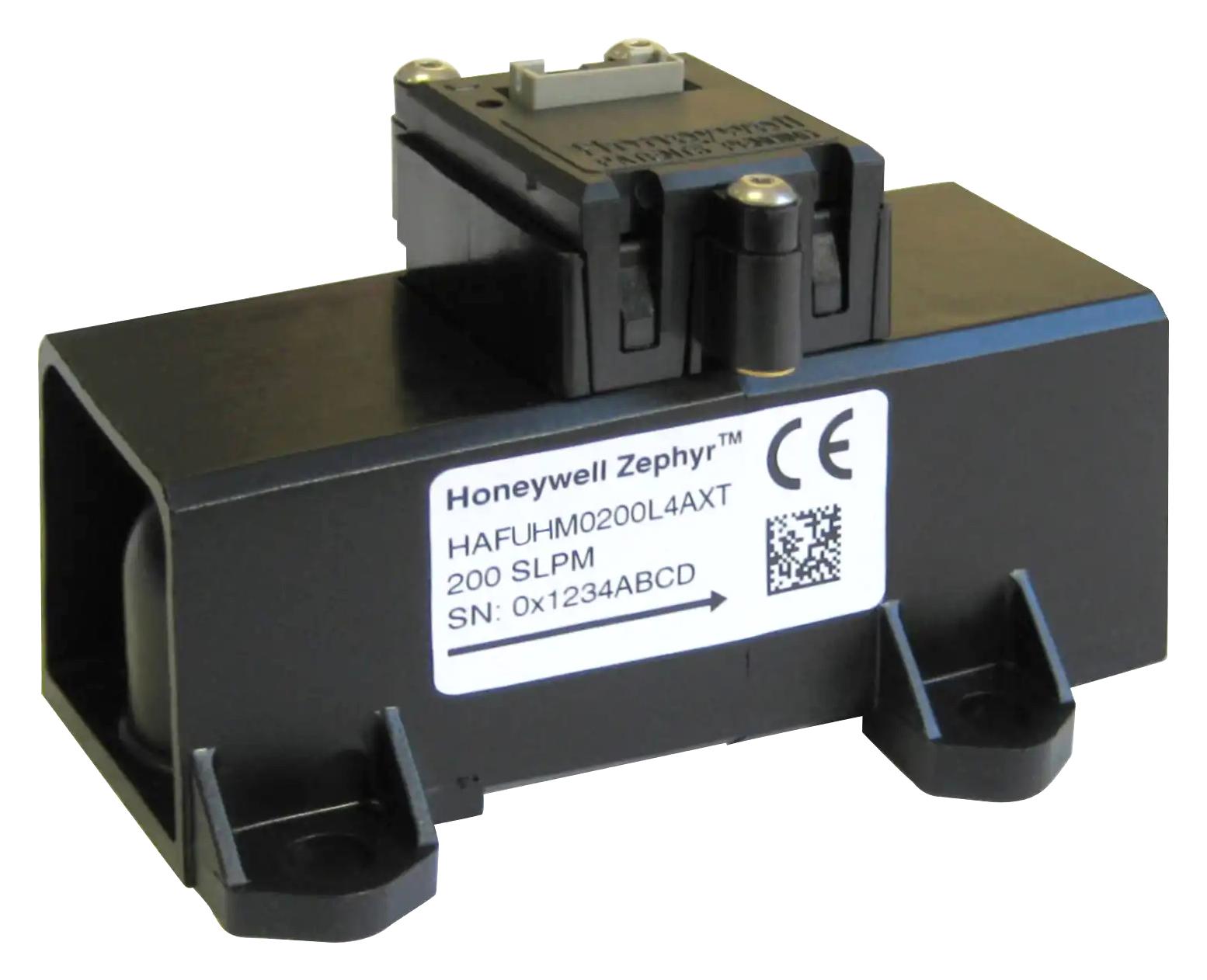

Honeywell HAFUHM0200L4AXT Digital Airflow Sensor
Honeywell Zephyr™ HAF Series sensors are high-precision digital airflow sensors designed for demanding applications such as medical and industrial environments. They utilize a fast-responding microbridge MEMS sensing element, providing accurate flow measurements from 10 SLPM to 300 SLPM with a response time of just 1 ms. Equipped with ASIC-based I2C communication, wide supply voltage (3 Vdc to 10 Vdc), and customizable port options like manifold mount or threaded fittings, these sensors ensure reliable, repeatable measurements with low error margins for critical airflow monitoring.
Honeywell HAFUHM0200L4AXT Digital Airflow Sensor Specifications:
- Flow Range: 10, 15, 20, 50, 100, 200, 300 SLPM
- Supply Voltage: 3 Vdc to 10 Vdc
- Supply Current: Max 20 mA
- Response Time: 1 ms
- Accuracy: 0.5% FS to 14.3% FS, 3.5% reading; at 300 SLPM, 0.5% FS to 12.5% FS
- Total Error Band: O%FS to 12.5%FS = 0.5% FS, 12.5% FS to 100% FS = 4.0% reading
- Operating Temperature Range: -20°C to 70°C [-4°F to 158°F]
- Calibrated Temperature Range: 0°C to 50°C [32°F to 122°F]
- Output: Digital I2C
- Port Options: Manifold mount, 22 mm OD tapered male fitting, G 3/8 female threaded fitting
- Materials: GR thermoplastic, silicon, gold, epoxy
- Protection: RoHS, WEEE compliant
- Mechanical: Mounting screw size 10-32, torque 1.13 N·m
- Environmental: 0-95% RH non-condensing, shock 30g/6ms, vibration 1.33 g at 10-500 Hz
Buy the Buy Honeywell HAFUHM0200L4AXT Digital Airflow Sensor Part Number HAFUHM0200L4AXT Online
Purchase the Honeywell Zephyr high-accuracy digital airflow sensor online today to enhance your medical or industrial airflow management systems. With quick response time of 1 ms, robust construction, and customizable port options, this sensor offers reliable, precise measurements from 10 to 300 SLPM. Its I2C digital interface simplifies integration with microcontrollers, reducing design complexity and cost. Ensure accurate airflow control in critical applications like anesthesia, process control, or gas leak detection by ordering this durable, fully calibrated sensor directly through authorized distributors for fast delivery.
Get Honeywell HAFUHM200L4AXT today—built for precise airflow measurement with fast response time and high reliability.
