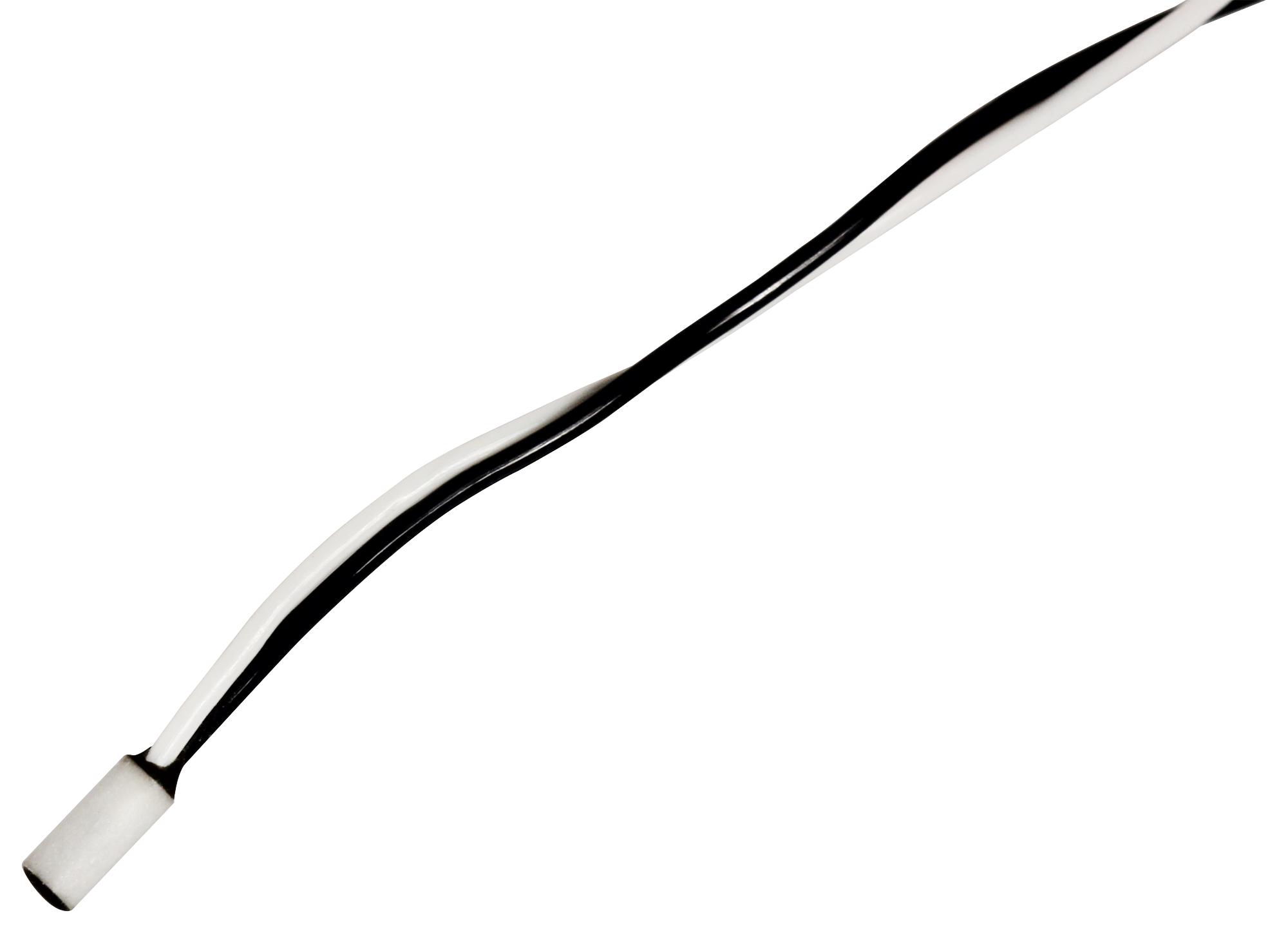

Honeywell HEL705T01200 Platinum RTD Sensor
The HEL-705-T-0-12-00 is a thin film platinum resistance temperature detector (RTD) designed for precise temperature measurement in industrial applications. It offers a linear resistance change with temperature, ensuring high accuracy, stability, and broad temperature range operation from -75°C to 540°C (-100°F to 1000°F). The fully assembled, ready-to-use sensor features a ceramic alumina package with laser-trimmed resistance for interchangeability within ±0.2%. Its construction includes a platinum layer deposited on an alumina substrate, glassed, wired with insulated lead wires made of TFE PTFE or fiberglass, and potted or fired for durability. The sensor has a fast response time and is suitable for various sensing and industrial control applications. It includes 28-gauge nickel-coated stranded copper wires with PTFE insulation, offering an insulation resistance of 50 MΩ at 50 VDC at 25°C. The device is sensitive to electrostatic discharge (ESD), requiring proper handling procedures.
Honeywell HEL705T01200 Platinum RTD Sensor Specifications:
- Temperature Range: -75°C to 540°C (-100°F to 1000°F)
- Resistance: R₀ at 0°C with ±0.2% trim, optional ±0.1%
- Leadwire Material: TFE Teflon® or fiberglass-insulated lead wires
- Leadwire Gauge: 28 AWG nickel-coated stranded copper wires
- Insulation Resistance: 50 MΩ at 50 VDC, 25°C
- Response Time: Less than 1.0 second for 0.086 in OD
- Stability: Less than 0.25°C/year
- Operating Current: 2mA max, recommended 1mA
- Construction: Platinum layer on alumina substrate, glassed and wired
- Package: Fully assembled ceramic alumina with optional potted or fired configuration
- Calibration: Laser trimmed resistance within ±0.2% or ±0.1%
- Lead Length: 12 inches
- Max Voltage: 50 V at 25°C for insulation resistance
- Material: High purity alumina ceramic case, nickel-coated copper leads
- Self-Heating Effect: Errors less than 1°C at specified currents
Buy the Buy Honeywell HEL-705 RTD Part Number HEL705T01200 Online
Purchase the Honeywell HEL-705 platinum RTD online for precise temperature measurement across a broad range from -75°C to 540°C. Ideal for industrial, aerospace, and scientific applications, this sensor features a fully assembled, durable ceramic alumina package with laser-trimmed resistance for high accuracy within ±0.2%, with an optional ±0.1% tolerance. Equipped with TFE PTFE or fiberglass-insulated lead wires, it offers excellent stability, fast response time, and reliable insulation resistance. Order now to ensure optimal temperature control in your critical processes.
Get Honeywell HEL-705 RTD today—designed for high accuracy and long-lasting durability in industrial temperature sensing applications.
Frequently Asked Questions
Where can I buy Honeywell HEL705T01200?
You can click on the BUY or RFQ button to purchase HEL705T01200 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part HEL705T01200?
You can download the HEL705T01200 datasheet or visit the Honeywell website for support.
Who is the manufacturer of HEL705T01200?
Honeywell
