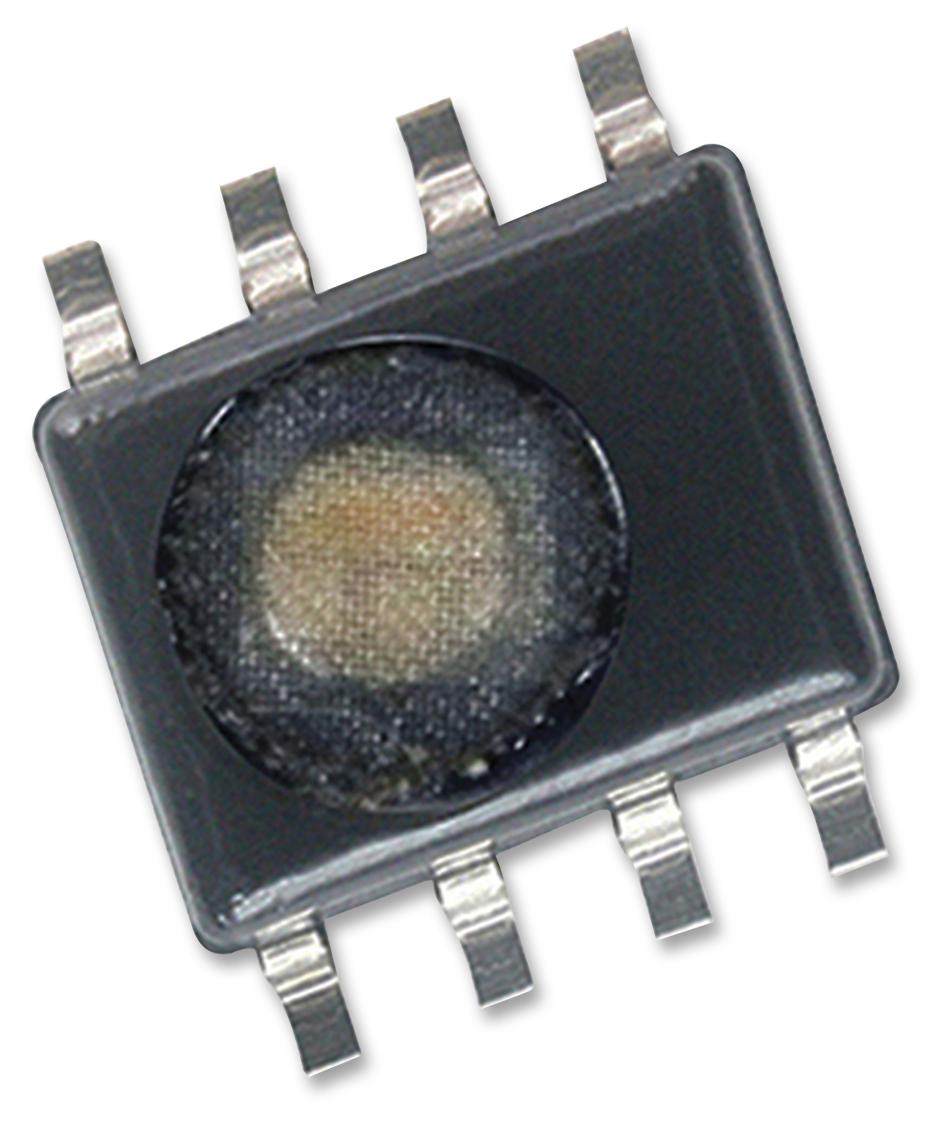

Honeywell HIH6131021001 Digital Humidity Temperature Sensor
Honeywell Humidicon™ digital humidity and temperature sensors, series HIH6100 and HIH6130, provide precise relative humidity and temperature measurements with accuracies of +4.0 %RH and +0.5 °C. These compact sensors feature industry-leading long-term stability, true digital output via PC or SPI, and are ideal for HVAC, weather stations, respiratory therapy, and industrial applications. They are available with optional hydrophobic filters, operate over wide temperature ranges, and are packaged in ultra-small SOIC-8 SMD or SIP 4 configurations, supporting high-volume automated manufacturing and reliable environmental sensing.
Honeywell HIH6131021001 Digital Humidity Temperature Sensor Specifications:
- Output Types: I?C and SPI
- Accuracy: Humidity +4.0 %RH, Temperature +0.5 °C
- Total Error Band: +5 %RH over 5°C to 50°C
- Supply Voltage: 2.3 Vdc to 6.5 Vdc
- Operating Temperature Range: -25 °C to +85 °C
- Storage Temperature Range: -40 °C to +85 °C
- Humidity Range: 10 %RH to 90 %RH
- Measurement Resolution: 14-bit ADC
- Response Time: Approximately 24 seconds
- Power Consumption: Sleep mode at 1 µA, active 0.65-0.75 mA
- Package Options: SOIC-8 SMD, SIP 4 Pin, with optional hydrophobic filter
- Long-Term Stability: 1.2 %RH over 5 years
- Package Size: Ultra-small, ideal for space-constrained environments
Buy the Honeywell Series Humidicon: HIH6130-000-001
Purchase Honeywell HIH6130-000-001 digital humidity and temperature sensor online today to benefit from industry-leading accuracy, exceptional stability, and reliable operation. This compact, high-performance sensor is suitable for HVAC, weather monitoring, respiratory therapy, and industrial environments. With options for hydrophobic filters, wide temperature range, and easy integration via I?C or SPI interfaces, it offers excellent value for high-volume applications. Ensure your systems deliver precise environmental data with this durable, compact sensor—order now for fast delivery.
Get Honeywell HIH6130-000-001 today—built for precision and long-lasting durability in environmental sensing applications.
Frequently Asked Questions
Where can I buy Honeywell HIH6131021001?
You can click on the BUY or RFQ button to purchase HIH6131021001 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part HIH6131021001?
You can download the HIH6131021001 datasheet or visit the Honeywell website for support.
Who is the manufacturer of HIH6131021001?
Honeywell
