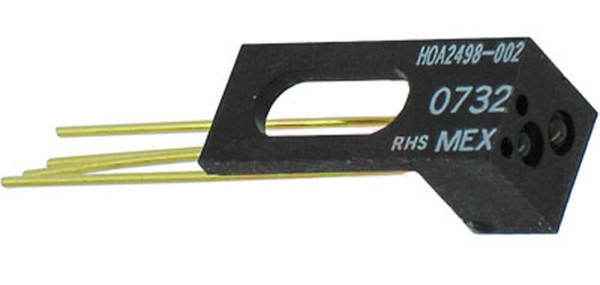

Honeywell HOA2498002 Reflective Sensor
The Honeywell HOA2498-002 is a reflective optical sensor designed for reliable object detection. This sensor utilizes a transistor output and a side-looking configuration, making it suitable for a wide range of applications. Its polyester housing provides durability, while its compact design allows for easy integration into various systems. Commonly used in monitoring and lighting applications, the HOA2498-002 offers a robust solution for detecting the presence or absence of objects.
Honeywell HOA2498002 Reflective Sensor Specifications:
- Series Name: HOA2498
- Product Type: IR Switch
- On-State Collector Current: 0.16 mA
- Output Transistor: Yes
- Package Type: Side-Looking
- Package Components: Metal
- Package Color: Black
- Forward Current: 30 mA
- Continuous Forward Current: 50 mA
- Forward Voltage: 1.6 V
- Reverse Breakdown Voltage: 3 V
- Reverse Current: 10 µA
- Housing Material: Polyester
- Rise and Fall Time: 15 µs
- Power Dissipation: 75 mW
- Operating Temperature: -55 °C to 100 °C
- Dark Current: 100 nA
- Collector DC Current: 30 mA
- Collector-Emitter Breakdown Voltage: 30 V
- Emitter-Collector Breakdown Voltage: 5 V
- Optimum Point of Response: 6,35 mm
