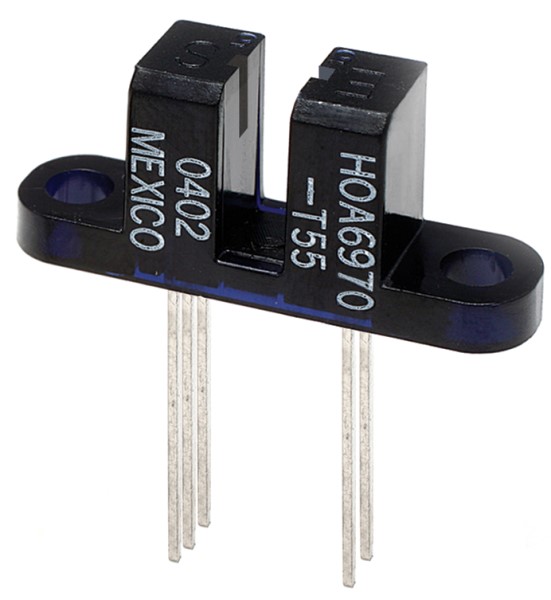

Honeywell HOA6970T55 IR Opaque Optoschmitt Sensor
The Honeywell HOA6970-T55 is a transmissive IR opaque optoschmitt sensor within the HOA696X/HOA697X series. This sensor utilizes a transistor output and is housed in a plastic package with two mounting tabs. It is suitable for applications requiring precise light detection and switching, such as controls monitoring, lighting, machine safety, and sensors. The HOA6970-T55 offers a reliable and compact solution for industrial automation and control systems.
Honeywell HOA6970T55 IR Opaque Optoschmitt Sensor Specifications:
- Series Name: HOA696X/HOA697X
- Product Type: IR Switch
- Output: Totem-Pole
- Mounting Configuration: Two Mounting Tabs
- Package Color: Black
- Continuous Forward Current: 50 mA
- Forward Voltage: 1.6 V
- Reverse Breakdown Voltage: 3 V
- Reverse Current: 10 µA
- Maximum Trigger Current: 15 mA
- Housing Material: Polysulfone, Opaque
- Power Dissipation: 100 mW
- Operating Temperature: -40 °C to 70 °C [-40 °F to 158 °F]
- Hysteresis (H): 0.05
- Operating Supply Voltage: 4.5 V to 7.0 V
- Supply Voltage: 7.0 Vdc
- High Level Output Voltage: 2.4 V minimum
- High Level Supply Current: 15 mA
- Low Level Output Voltage: 0.4 V maximum
- Low Level Supply Current: 15 mA
- Short Circuit Output Current: -20 mA to -100 mA
- Output Rise Time: 70 ns
- Output Fall Time: 70 ns
- Propagation Delay Low-High/High-Low: 5.0 µs
- Duration of Output Short Vcc or Ground: 1.0 second
- IRED Trigger Current: 15 mA
- Sensor Aperture: 1,52 mm x 1,27 mm [0.060 in x 0.050 in]
- Slot Width: 3,18 mm [0.125 in]
