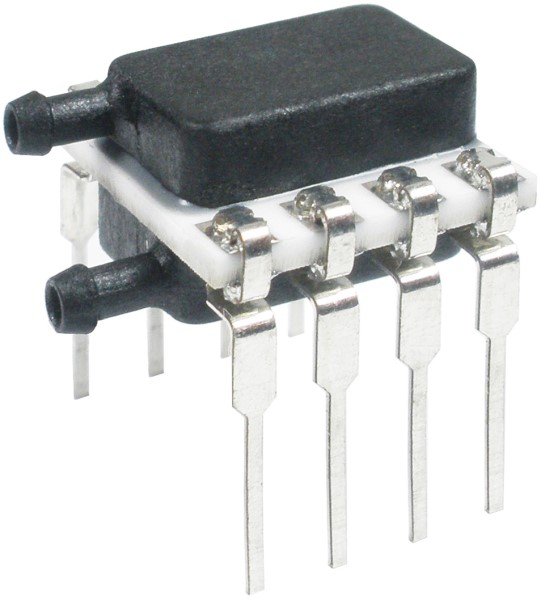

Honeywell HSCDRRD160MDSA3 High Accuracy Pressure Sensor
The Honeywell TruStability HSC Series is a piezoresistive silicon pressure sensor designed for high accuracy and stability. It features a ratiometric analog or digital output, calibrated and temperature compensated using an on-board ASIC. Suitable for absolute, gage, or differential pressure measurements in non-corrosive environments, this sensor is ideal for industrial applications requiring precise pressure monitoring and control. Its small size, low power consumption, and modular design simplify integration and enhance system performance.
Honeywell HSCDRRD160MDSA3 High Accuracy Pressure Sensor Specifications:
- Pressure Range: ±1.6 mbar to ±10 bar | ±160 Pa to ±1 MPa | ±0.5 inH2O to ±150 psi
- Output: Ratiometric analog; I[2] C- or SPI-compatible 14-bit digital output (min. 12-bit sensor resolution)
- Accuracy: ±0.25 %FSS BFSL
- Temperature Range: 0 °C to 50 °C [32 °F to 122 °F]
- Power Supply: 3.3 Vdc or 5.0 Vdc
- Package Size: 10 mm x 10 mm [0.39 in x 0.39 in]
- Stability: Minimizes system calibration needs and improves system performance
- Burst Pressure: High burst pressures promote system reliability
- Working Pressure: Allows ultra-low pressure sensors to be used continuously well above the calibrated pressure range
- Moisture Sensitivity Level: IPC/JEDEC J-STD-020D.1 requirementS
- REACH Compliant: Yes
- RoHS Compliant: Yes
- Power Consumption: Less than 10 mW (typ.)
- Media Compatibility: Non-corrosive, non-ionic gases and liquids (for pressure ranges above 40 mbar)
Buy the HSCDRRD160MDSA3 HONEYWELL High Accuracy Pressure Sensor | myMectronic
Purchase the Honeywell HSCDRRD160MDSA3 pressure sensor securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy Honeywell HSCDRRD160MDSA3?
You can click on the BUY or RFQ button to purchase HSCDRRD160MDSA3 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part HSCDRRD160MDSA3?
You can download the HSCDRRD160MDSA3 datasheet or visit the Honeywell website for support.
Who is the manufacturer of HSCDRRD160MDSA3?
Honeywell
