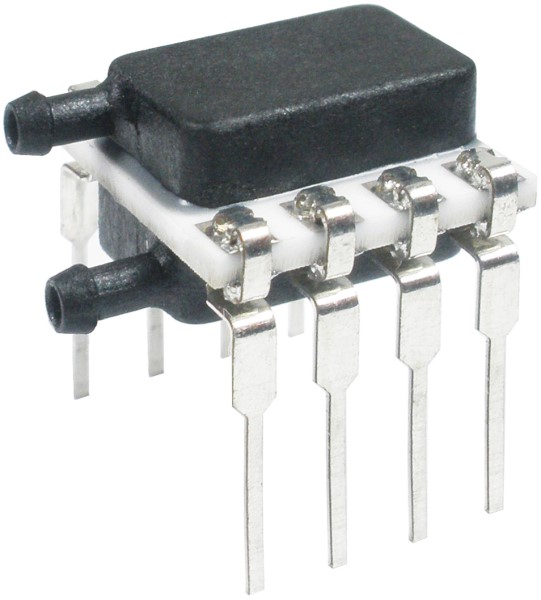

Honeywell HSCDRRN100PGSA5 Board Mount Pressure Sensor
The Honeywell TruStability HSC Series is a piezoresistive silicon pressure sensor designed for high accuracy and stability. It features a ratiometric analog or digital output, is fully calibrated and temperature compensated, and is suitable for a wide range of applications including absolute, gage, and differential pressure measurements. The sensor's modular design and small size simplify integration, while its robust construction and optional diagnostic functions enhance reliability and performance.
Honeywell HSCDRRN100PGSA5 Board Mount Pressure Sensor Specifications:
- Pressure Range: ±1.6 mbar to ±10 bar | ±160 Pa to ±1 MPa | ±0.5 inH2O to ±150 psi
- Output: Ratiometric analog; I[2] C- or SPI-compatible 14-bit digital output (min. 12-bit sensor resolution)
- Accuracy: ±0.25 %FSS BFSL
- Temperature Range: 0 °C to 50 °C [32 °F to 122 °F]
- Power Supply: 3.3 Vdc or 5.0 Vdc
- Package Size: 10 mm x 10 mm [0.39 in x 0.39 in]
- Compliance: REACH and RoHS compliant
- Moisture Sensitivity Level: IPC/JEDEC J-STD-020D.1 MSL 1
Buy the HSCDRRN100PGSA5 HONEYWELL Board Mount Pressure Sensor | myMectronic
Purchase the Honeywell HSCDRRN100PGSA5 pressure sensor securely and reliably through our online store.
Buy Now
Frequently Asked Questions
Where can I buy Honeywell HSCDRRN100PGSA5?
You can click on the BUY or RFQ button to purchase HSCDRRN100PGSA5 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part HSCDRRN100PGSA5?
You can download the HSCDRRN100PGSA5 datasheet or visit the Honeywell website for support.
Who is the manufacturer of HSCDRRN100PGSA5?
Honeywell
